Description

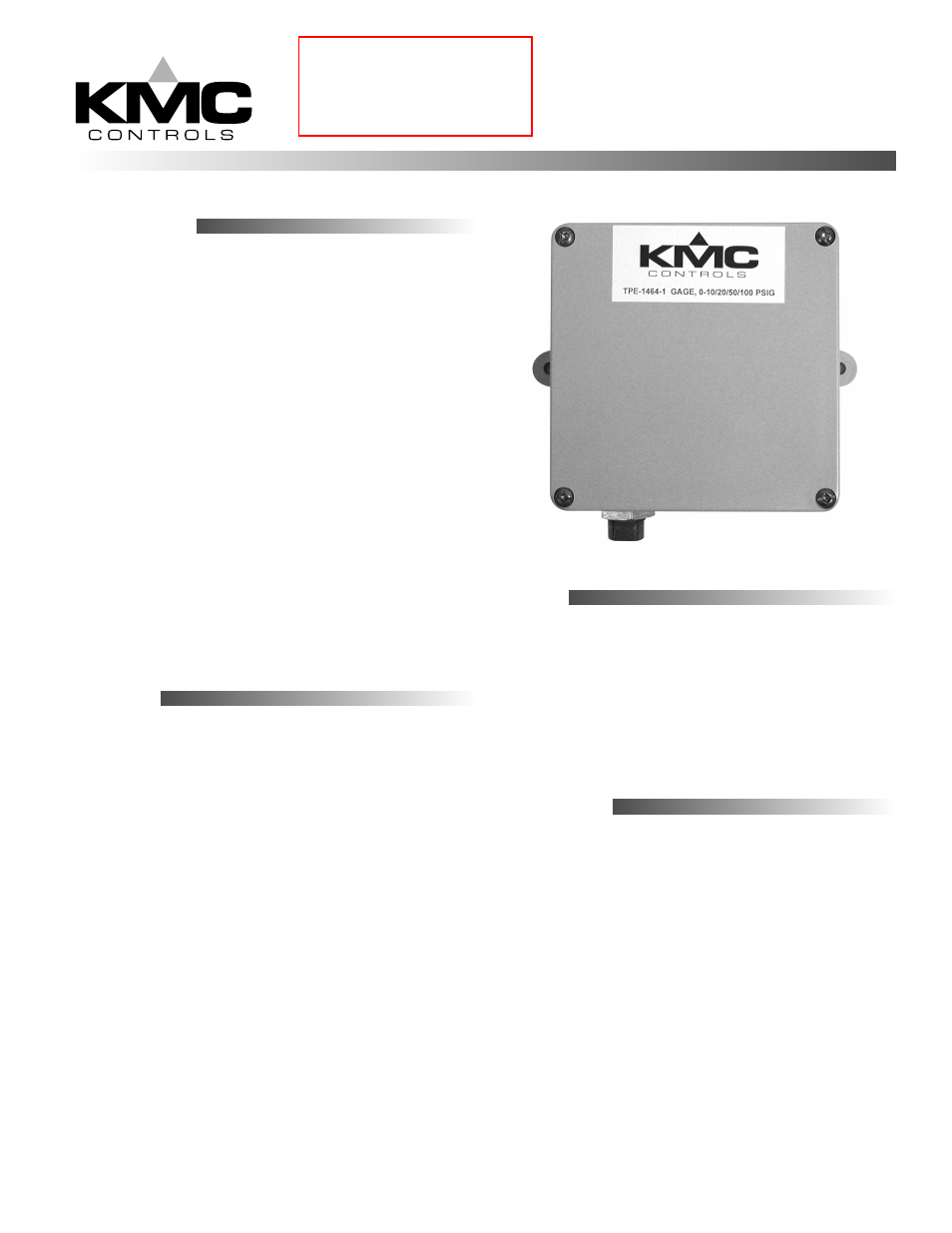

The KMC TPE–1464 series of pressure transducers
incorporate a gauge pressure transmitter featuring
low hysteresis, excellent repeatability, and long-
term stability.

Up to four field-selectable input ranges are available
in most models. The field selectable feature
provides a single model that can be configured to
cover all the input pressure ranges for any given
application.

Three output ranges are field selectable, 4 to 20mA,
0 to 5 VDC, and 0 to 10 VDC. The output signal is
factory calibrated and temperature compensated
for the highest start-up accuracy.

The TPE–1464 can be powered from either a 24
VAC nominal, or 12 to 30 VDC power source.
TPE–1464 incorporates a rugged NEMA 4
enclosure.

TPE–1464 Series

Pressure Transducer

Specifications and design subject to change without notice.

Models

The following models are available

TPE–1464–1

0 to 10/20/50/100 psig/d

TPE–1464–2

0 to 20/40/100/200 psig/d

TPE–1464–3

0 to 50/100/250/500 psig/d

Features

Push-button and remote zeroing terminal

Normal or slow surge damping switch to
prevent false alarms and reduce noise

Output polarity reverse switch

Application

KMC TPE–1464 Pressure Transducers are suited for
any application requiring a reliable pressure
monitor providing a dependable conditioned and
compensated signal output.

The TPE–1464 may be used with any liquid or gas
that is compatible with 17–4 PH stainless steel.

DO NOT USE for these applications:

Oxygen service

Explosive/hazardous environments

Flammable or combustible materials

Valid late 2004 into 2008—
see Rev. E of this data
sheet for information on the
new case and board.
