THE-1002

1

Installation Guide

Installation Guide

Duct-Mounted Humidity Transmitter w/ Temperature Sensor

THE-1002

Mounting

Mounting

1

Wiring

2

More Information 2
Maintenance

2

Important Notices 2

NOTE: The sensor should be installed in a straight

section of duct away from heating, cooling,

or humidifier elements.

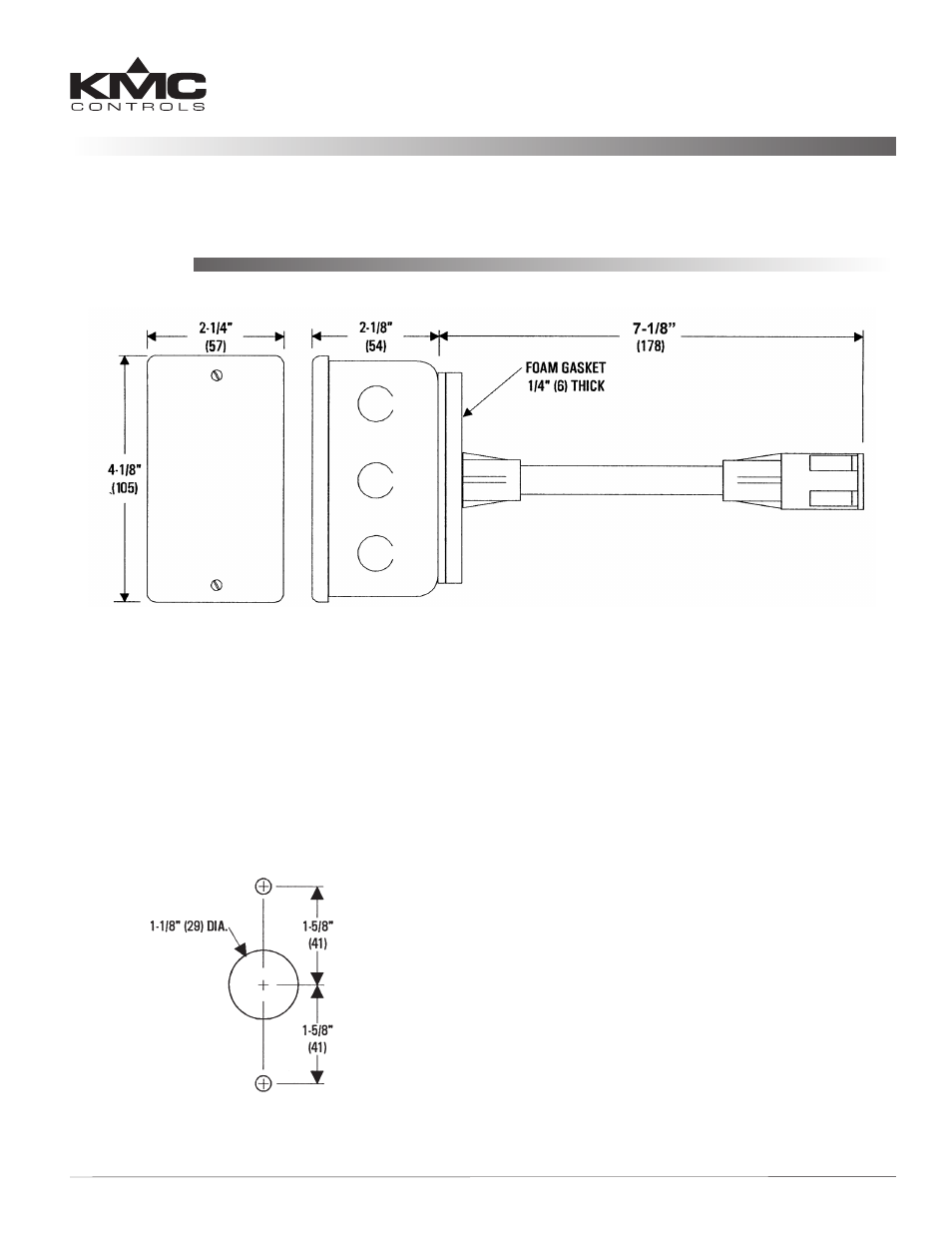

1. In the duct, drill a 1-1/8" clearance hole (for the

sensor probe).

2. Measure 1-5/8" to either side of the center of the

clearance hole and drill two holes for mounting

screws.

3. From the THE-1002, remove the two cover

screws, cover, and the desired knock-out for the

conduit.

4. Insert the THE-1002 probe into the duct.
5. Insert the two mounting screws and tighten

them.

6. Fasten conduit to the THE-1002.
7. Through the conduit, feed wires to the controller

and make the appropriate connections. (See the

Wiring section on the next page.)

8. After wiring, plug the conduit with plumber’s

putty, painter’s putty, caulk, or other sealant to

prevent air infiltration.

9. Reinstall the cover and cover screws. Be sure

the screws go through the mounting holes of

the relay module, securing the back of the relay

module to the back side of the cover.
