CSP-5001/5002

1

Installation Guide

Installation Guide

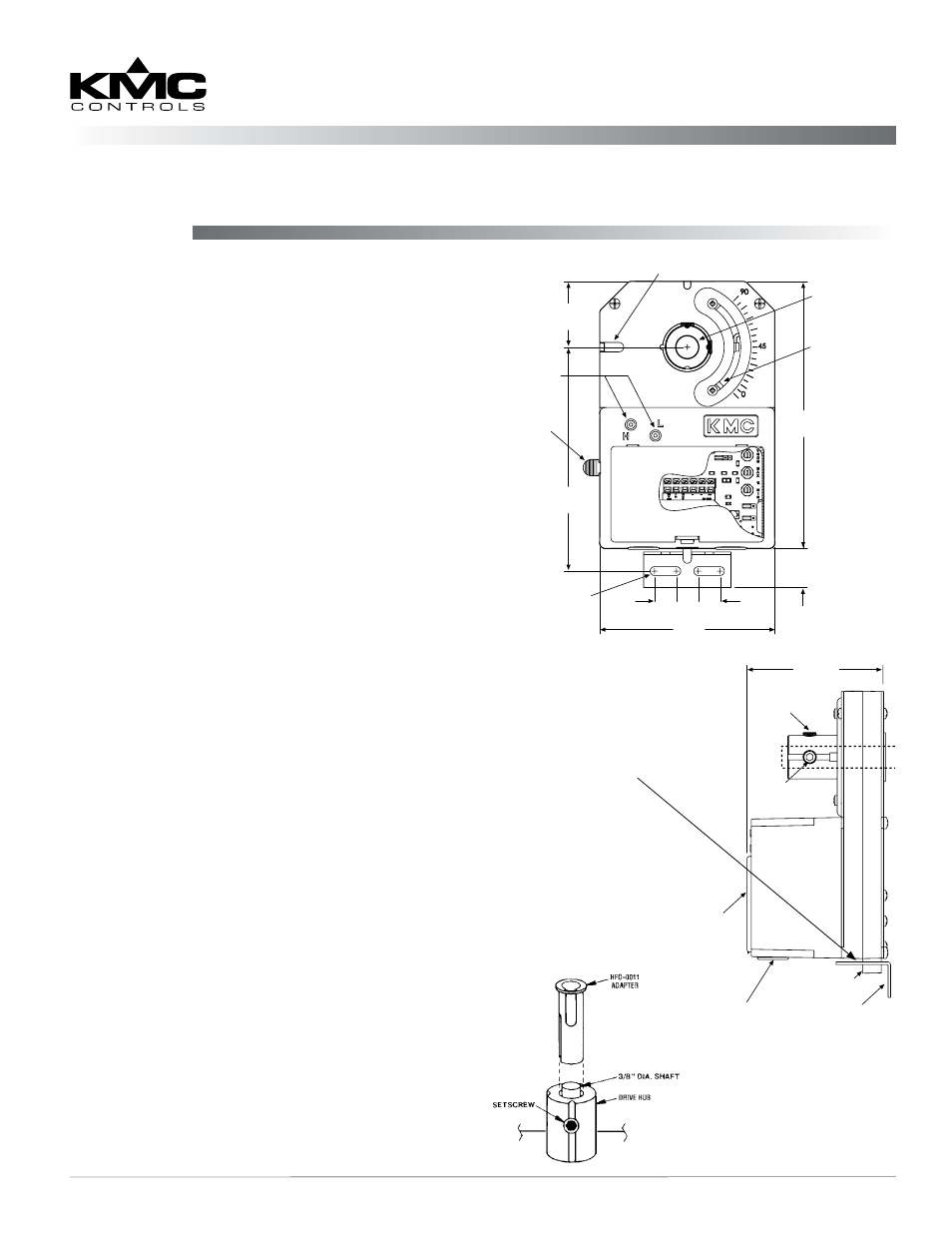

Mounting

The CSP-5001/5002 is designed to mount on a stan-

dard 1/2 in. (13 mm) diameter shaft or a 3/8 in. (9.5

mm) shaft using the optional HFO-0011 adaptor.

Standard Instructions

1. Slide the CSP-500x directly onto the 1/2 in.

diameter damper shaft. The shaft must extend a

minimum of 1-3/4 in. from the mounting surface.

(For a 3/8 in. shaft, see

HFO-0011 Adaptor on

page 1

.)

2. Place the non-rotation bracket (supplied) on the

non-rotation tab. Leave a gap of 1/8" between the

bottom surface of the CSP-500x and the bracket to

allow for play during operation (see illustration).

3. Attach the non-rotation bracket to the mounting

surface using (2) #8 or #10 self-tapping screws

(not included).

4. Depress the gear disengagement button and:

A. Rotate the drive hub until the indicator stops

at the “90” mark if the damper is clockwise to

close.

B. Rotate the drive hub to the “0” mark if the

damper is counterclockwise to close.

5. Position the damper to full open.
6. Torque the two 5/16-18 set screws 75 to 85 in-lb.
7. Depress the gear disengagement button and

rotate the drive hub/damper to the closed

position.

8. Loosen the adjustable end stop, position against

the damper position indicator, and retighten.

HFO-0011 Adaptor

1. Mount the CSP-500x over the 3/8 in. shaft.
2. Slide the HFO-0011 over the shaft into the drive

hub of the actuator.

3. Align the adaptor slots with the set screws.
4. Partially tighten the set screws.
5. Continue with Step 2 under the Standard

Instructions section above.

(38)

1-1/2"

(132)

5-3/16"

(155)

6-7/64"

(24)

15/16"

(102)

1/2"

(13)

4"

1/2"

(13)

1/2"

(13)

3/16" (5)

Mtg. Slots

Gear

Disengagement

Button

Non-rotation Slot for Field Adaptable Auxiliary Switch

DP Ports 3/16"

(5) Dia. (2)

0.51" (13)

Dia.

Adjustable

End Stops

3-1/8"

(79)

5/16-18

Setscrews (2)

Access

Door

5/8" (16) Dia. Wire Access

Shutter Bushings

Non-rotation Tab

Non-rotation

Bracket

Damper Shaft

Drive Hub

Leave 1/8" Gap During Installation

VAV Flow Controller-Actuator

CSP-5001/5002

Mounting 1

Standard Instructions 1

HFO-0011 Adaptor 1

Wiring 2

Air Flow Sensor Connection 2

Maintenance 2

Controller Testing

3

Rotation Setup 3

Specifications 3

More Information

3

Controller Calibration 4

Minimum and Maximum Flow Limits

4

VNOM (CFM) Range Setting 4

Important Notices

4
