Installation Guide

Installation Guide

Analog Differential-Pressure VAV Controller/Actuator

CSP-4702

Mounting

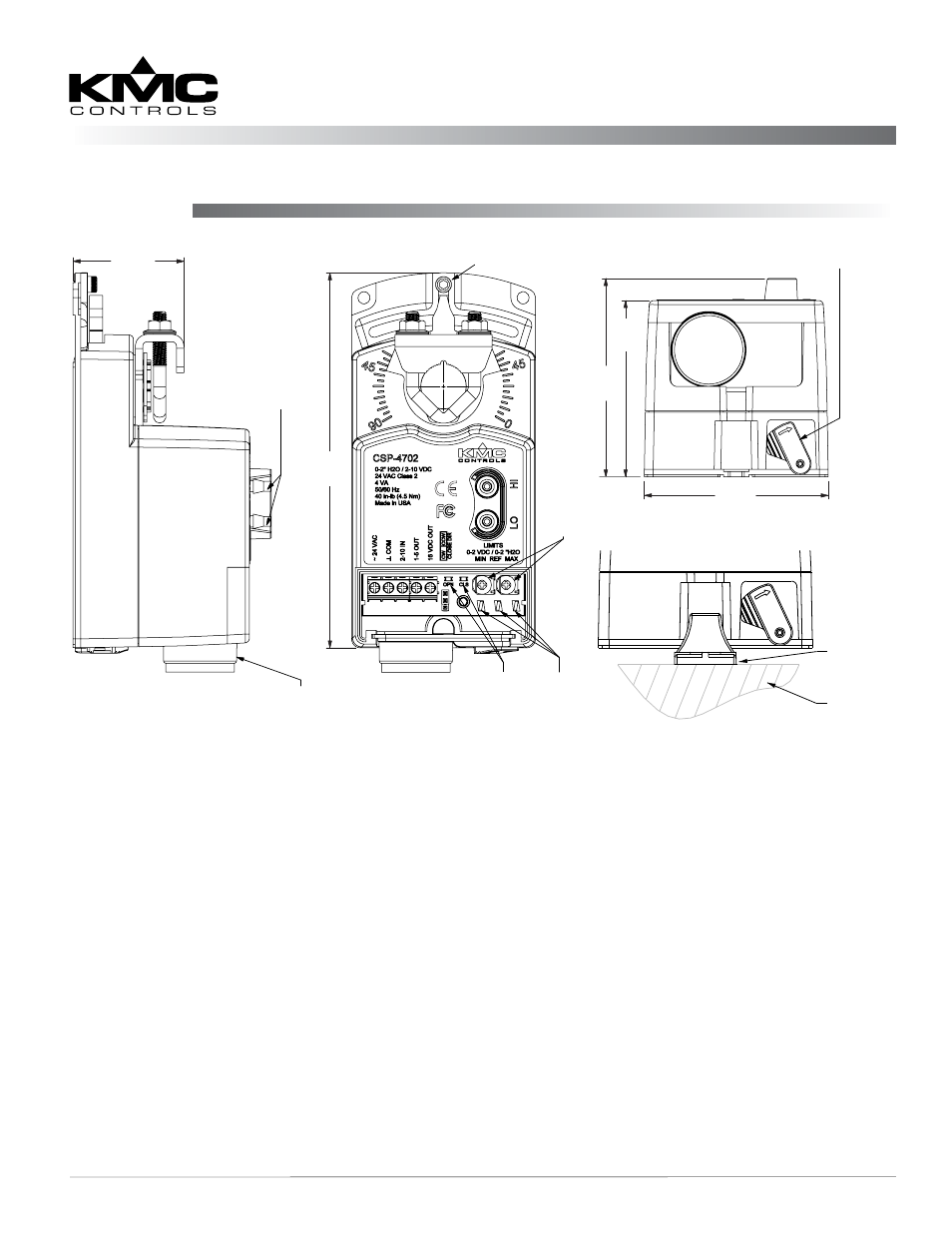

Illustration 1—Overview (Direct-Coupled Mounting)

approximately 5° may provide tight

damper shut-off.

3. Align the actuator and slide it onto the shaft.
4. Leaving a small gap between the actuator and

mounting surface to prevent any binding, finger-

tighten the nuts on the V-bolt.

5. Insert the provided (HMO-4002) non-rotation

bracket into the slot at the base of the actuator

and secure the non-rotation bracket with two #8

or #10 self-tapping screws.

6. Evenly tighten the V-bolt nuts (30–35 in-lb.).
7. If desired, use a 7/64-inch hex key wrench to

loosen and position the end-stop screw.

NOTE: The two holes at the top of the actuator

are NOT for use in direct-coupled

applications. (They are for remote

mounting, such as with the optional HLO-

4001 Crank Arm Kit.)

NOTE: For VAV applications with the analog

CTE-5202 thermostat, see the

CTE-5202

Applications Guide

. For static pressure

controller applications, see the

CSP-

4702 Static Pressure (Bypass) Control

Application Guide

.

The CSP-4702 mounts directly to 1/4- to 5/8-inch (6 to

16 mm) round shafts or 1/4- to 7/16-inch (6 to 11 mm)

square shafts.
1. Ensure the damper can move freely through its

entire range of motion, and fix any binding before

installing the actuator. Turn the damper blade to

its fully closed position.

2. Press (to the right) and hold the gear disengage-

ment lever (see Illustration 1), rotate the actuator

to the fully closed position, and release the lever.

NOTE: Depending on the damper-seal design,

backing the actuator off its stop

HMO-4002

Non-Rotation

Bracket

Mounting

Surface

5.312
(134.9)

Adjustable Stop

Min/Max

Flow Limit

Meter Taps

Min/Max

Flow

Setting

Pots

Open &

Close

LEDs

2.50

(63.5)

2.812
(71.4)

2.60
(66.0)

Gear

Disengagement Lever

1.563
(39.7)

P Ports

Barbed

Connections

for 1/4" FR

Tubing

Removeable Conduit Fitting
with 1/2" NPS Threaded Hole
