CEP-4000 Series

1

Installation Guide

Installation Guide

Mounting

The CEP-4000 series are designed to mount on a

standard 1/2 in. (13 mm) diameter shaft or (using the

optional HFO-0011 adaptor) on a 3/8 in. (9.5 mm)

shaft.

Standard Instructions

1. Ensure that the damper can move freely through

its entire range of motion. Fix any binding before

installing the CEP-4000.

2. Slide the CEP-4000 directly onto the 1/2 in.

diameter damper shaft. The shaft must extend a

minimum of 1-3/4 in. from the mounting surface.

(For a 3/8 in. shaft, see the HFO-0011 Adaptor

section below.)

3. Place the non-rotation bracket (supplied) on the

non-rotation tab.

4. Attach the non-rotation bracket to the mounting

surface using (2) #8 or #10 self-tapping screws

(not included).

5. Check that the standoffs (on the anti-rotation

bracket) provide a 1/8-inch air gap behind the

unit (see illustration).

6. Torque the two 5/16-18 setscrews to 75–85 in-lbs.
7. Mount the factory-calibrated, matching, SSE

series sensor horizontally to maintain calibration

at zero airflow.

HFO-0011 Adaptor

1. Mount the CEP-4000 series actuator over the 3/8

in. shaft.

2. Slide the HFO-0011 over the shaft into the drive

hub of the actuator.

3. Align the adaptor slots with the setscrews.
4. Partially tighten the setscrews.
5. Continue with step 2 under the Standard

Instructions section above.

NOTE: See also the CEP-4995 Universal

Replacement section on page 4 if installing

that replacement model.

Mounting 1

Standard Instructions

1

HFO-0011 Adaptor 1

Wiring 2
Adjustments and Calibration 3
Rotation Setup and Override 3
CEP-4995 Universal Replacement 4
Maintenance 4
More Information 4

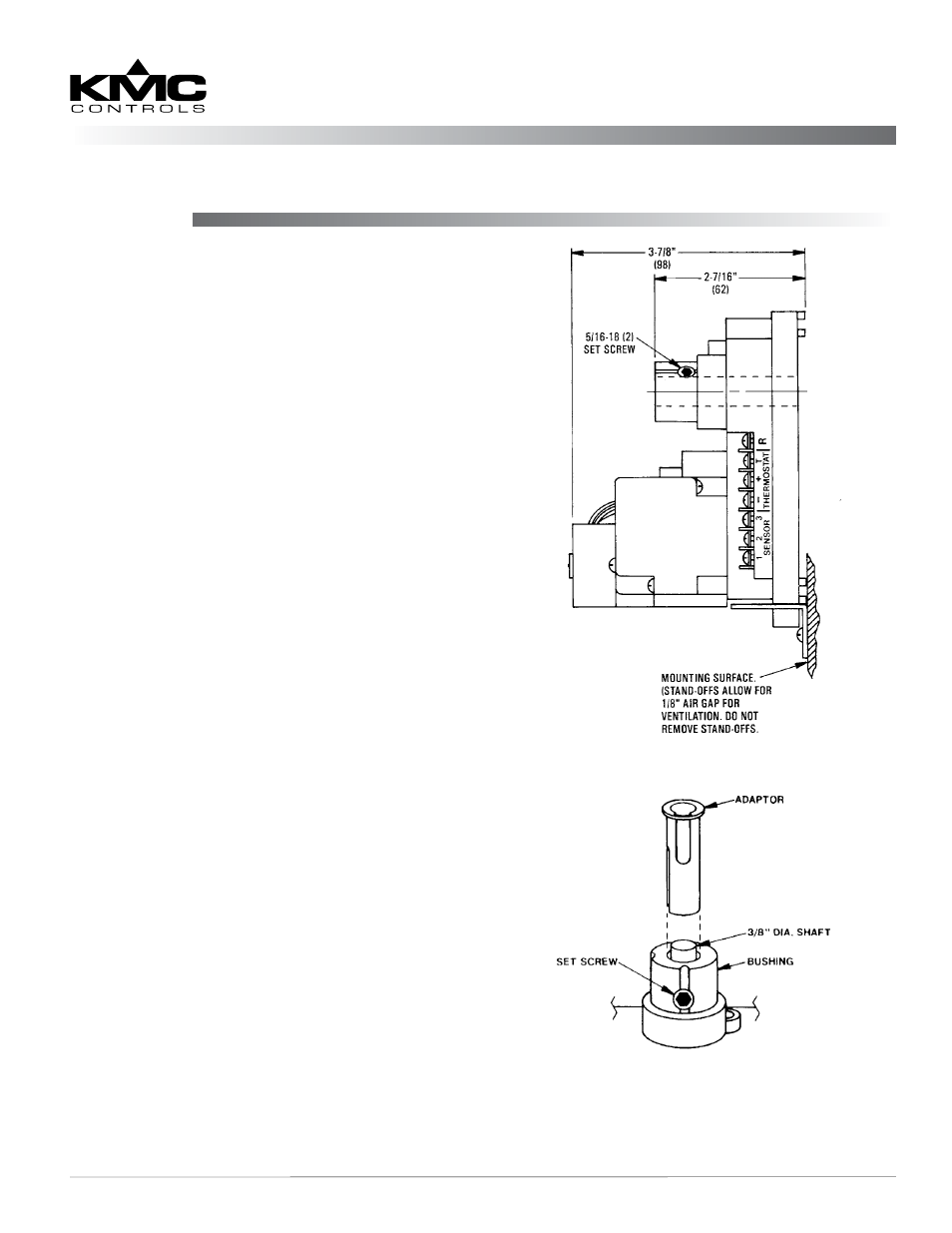

CEP-4000 Side View

HFO-0011 Adaptor

Analog Electronic VAV Flow Controller-Actuators

CEP-4000 Series

NOTE: For information about connections and

usage with newer CTE-5202 thermostats,

see the

CTE-5202 Applications Guide

.
