Publication 1404-UM001F-EN-P - November 2009 127
Setpoint Programming and Operation Chapter 5
Under Reverse Setpoint
An under reverse setpoint is the mirror image of an under forward
setpoint. The magnitude and all limits are negative numbers.
An under reverse setpoint activates when the magnitude of the
parameter being monitored (defined by the Setpoint Type) decreases
below the Setpoint Low Limit in the negative direction and remains
below the limit for a time greater than the Setpoint Action Delay. The
setpoint releases when the magnitude of the parameter being
monitored increases above the Setpoint High Limit and stays above
the limit for a time greater than the Setpoint Release Delay.

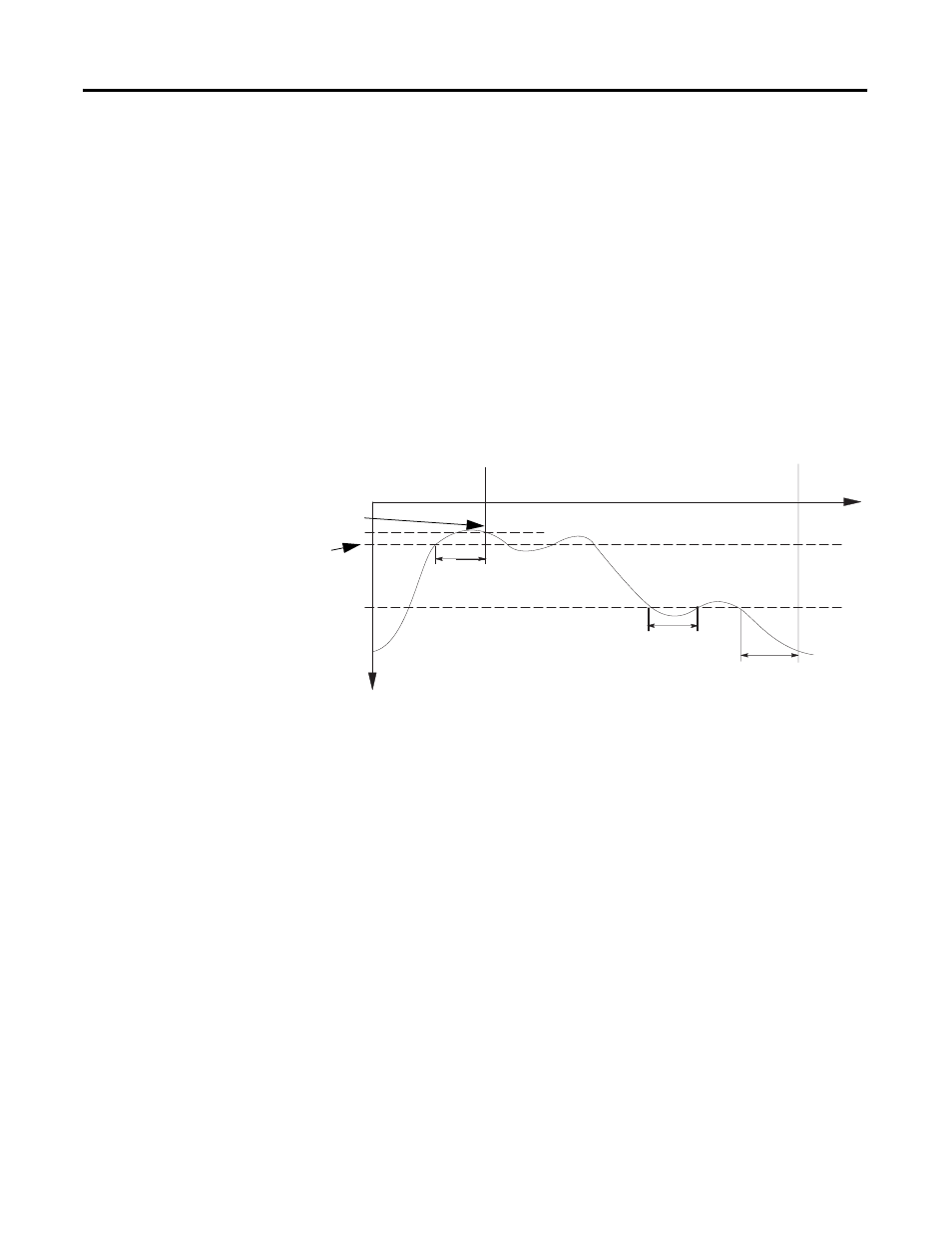

Under Reverse Setpoint Operation
Equal Setpoint
An equal setpoint activates when the monitored parameter equals the
Setpoint High Limit for a time greater than the Setpoint Action Delay.
An equal setpoint releases when the monitored parameter does not
equal the Setpoint High Limit for a period of time greater than the
Setpoint Release Delay. The Setpoint Low Limit is not used for equal
and not equal setpoints.
Parameter Value (-)
Setpoint High Limit
Setpoint Low Limit
Setpoint Activated
≥
Setpoint Action Delay
Release Delay
≥
Setpoint
Release Delay
Time (s)
0
Setpoint Deactivated
Maximum Excursion
