Rockwell Automation 1326 Digital AC Multi-Axis Motion Control System User Manual User Manual
Page 56
Publication 1394-5.0 — May 2000
3-10
Wiring System, Axis, and Shunt Modules, and Motors (for all systems)

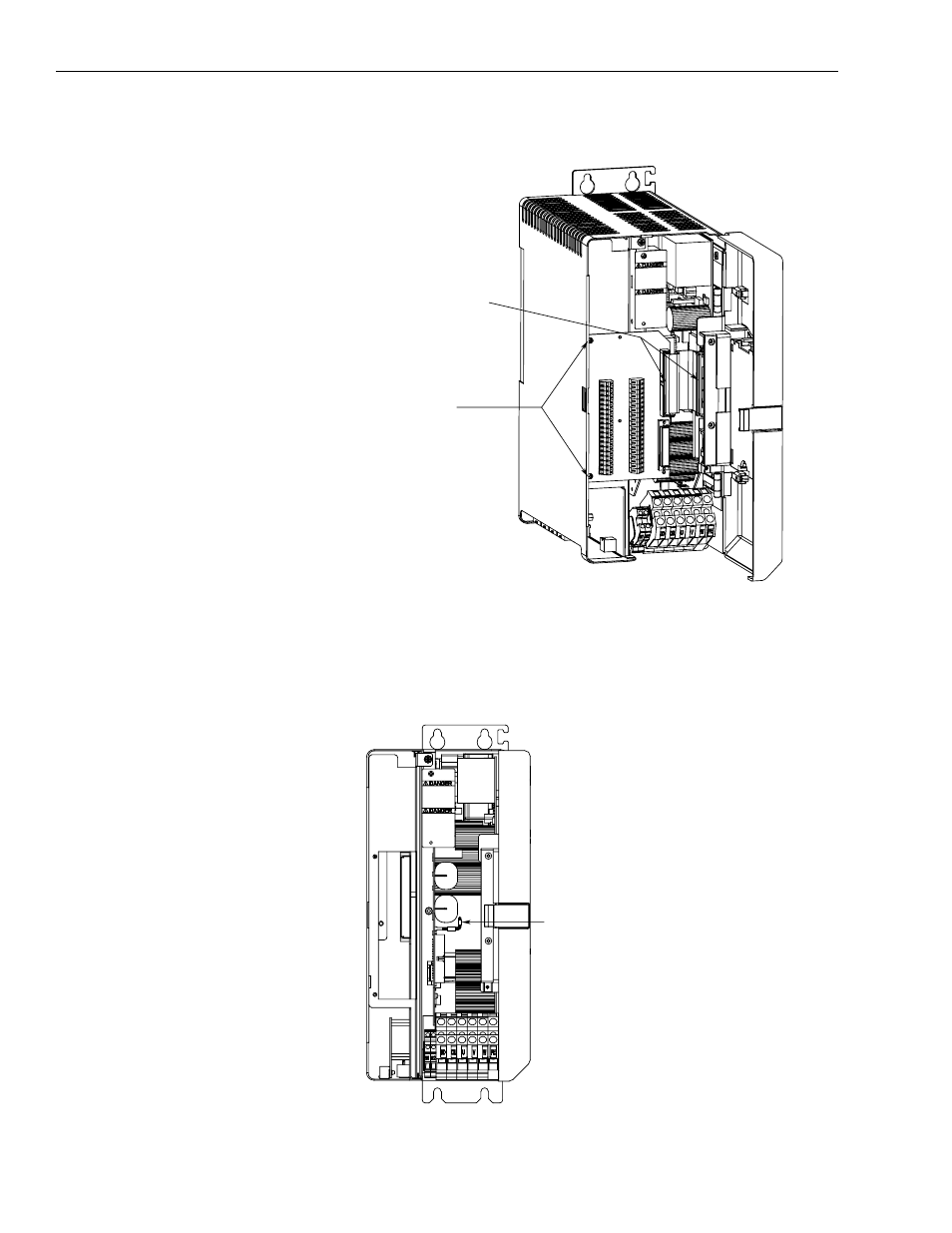

Figure 3.5
Removing the Input Wiring Board in a 22 kW System Module
6. Locate the ground jumper inside the system module. Refer to the
figure below for jumper location.
Figure 3.6
Location of the 22 kW System Module Ground Jumper
Disconnect both sides of
the ribbon cable
Remove both input
wiring board screws and
remove the input wiring board
Ground Jumper
