Publication 1394-5.0 — May 2000
Specifications
A-17
Dimensions
Within this section, you will find dimensions for:
•
The 1394 system module
•
Axis modules (including 1394-DIM and 1394-DCLM)
•
Filters
•
External shunt modules
•
Motors

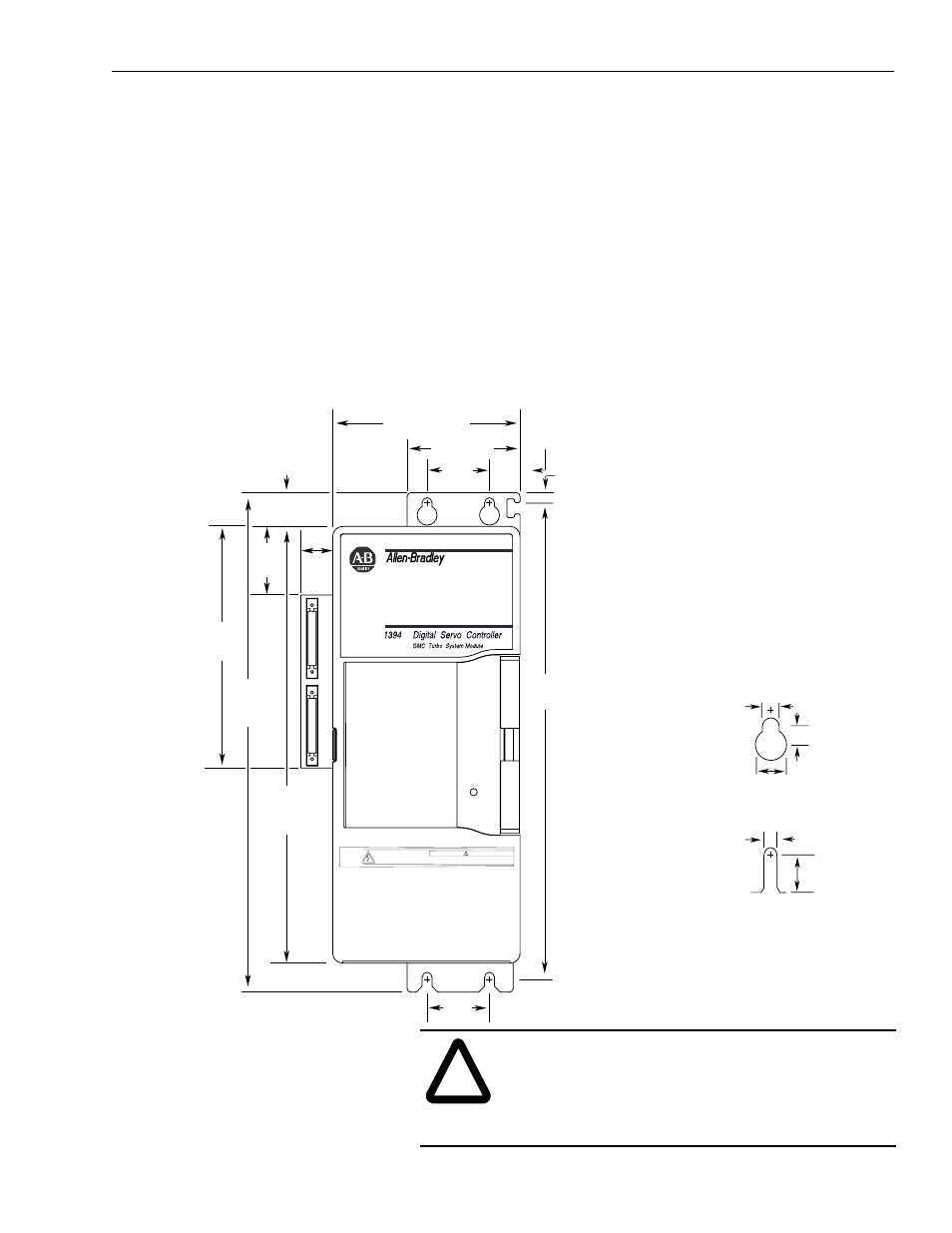

1394 System Module Dimensions
Figure A.3
1394
x-SJT05, 1394x-SJT10 and 1394x-SJT22 System Module
!
ATTENTION: If you are mounting a 1394x-SJT-T
system module, you will need an additional 101.6 mm
(4 in.) of clearance to the left of the system module to
allow for connecting the SLC interface cable (1746-C7
or -C9).
All Slots Accept M6 or 1/4-20 Mtg. Screws
Depth = 280 (11.02)
50.0
(1.97)
50.0
(1.97)
25.0 (0.98)
91.0 (3.58)
150.0 (5.91)
Mounting Hole Detail
Dimensions are in millimeters and (inches)
350.0
(13.78)
385.0
(15.16)
400.0
(15.75)
26.0
(1.02)
8.0 (0.31)
8.0 (0.31)
10.1 (0.40)
15.9 (0.63)
8.0 (0.32)
Status
Dimension shown is for mounting hardware
location and does not reflect the location of
the lower slot radius.
12.0 (0.47)
196.9
(7.75)
26.7
(1.05)
54.0
(2.13)
Fastner
location
1
1
Dimensions apply to 1394
x-SJTxx-T (Turbo)
system module only.
2
2
2
2
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
