Page 197
Publication 1394-5.0 — May 2000
Troubleshooting
9-31
Installing the New Fan
1. Insert the new fan into the fan housing.

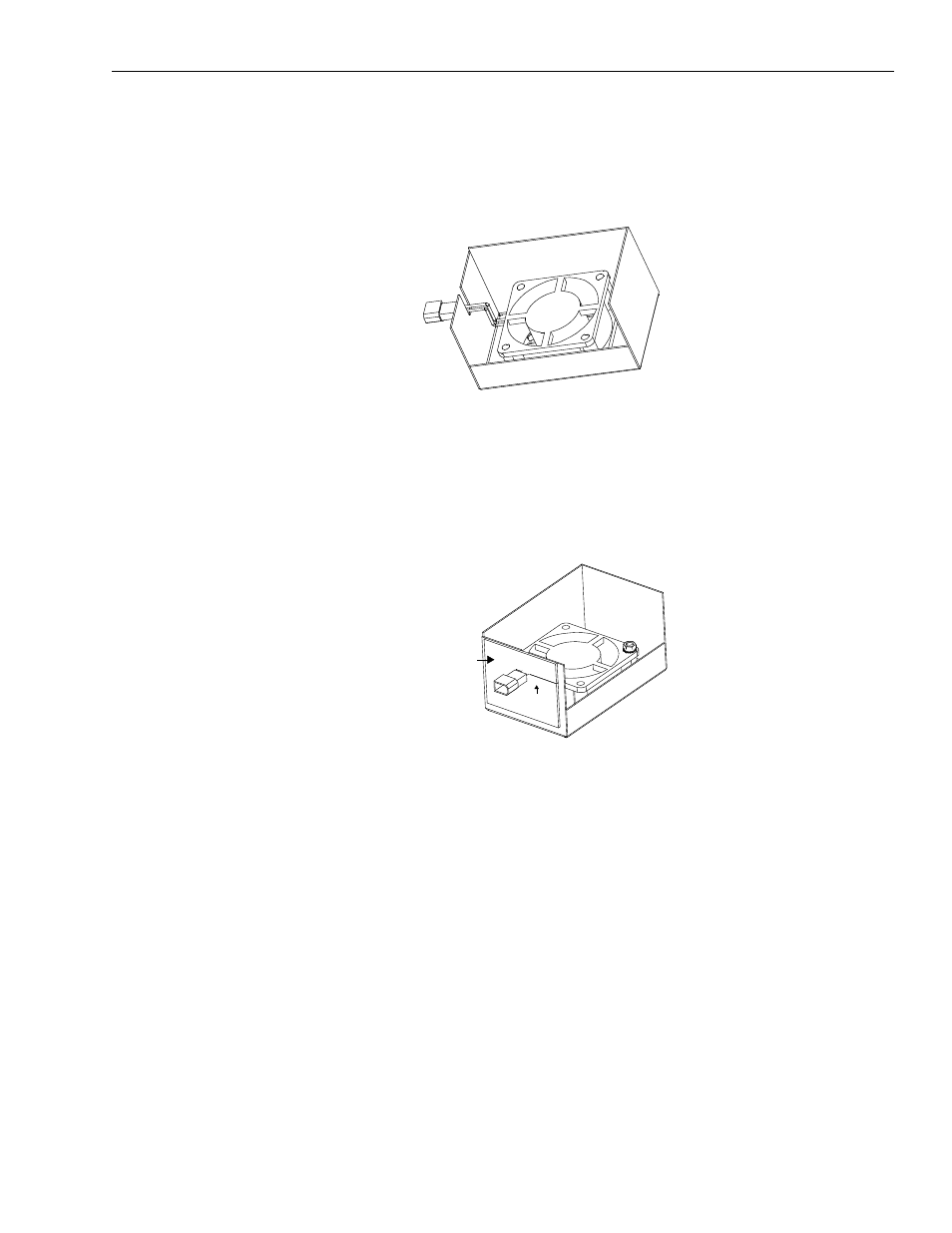

Figure 9.15
Fan Inserted into the Fan Housing
2. Peel the adhesive backing off of the new fan gasket.
3. Attach the new fan gasket to the fan housing in the direction
shown in the figure below. Make sure you compress the slit in the
gasket to minimize the air gap in the gasket.
Figure 9.16
Attaching the New Fan Gasket
4. Press the gasket firmly to the fan housing to secure the gasket.
Fan Gasket
Slit
