Specifications
A-19

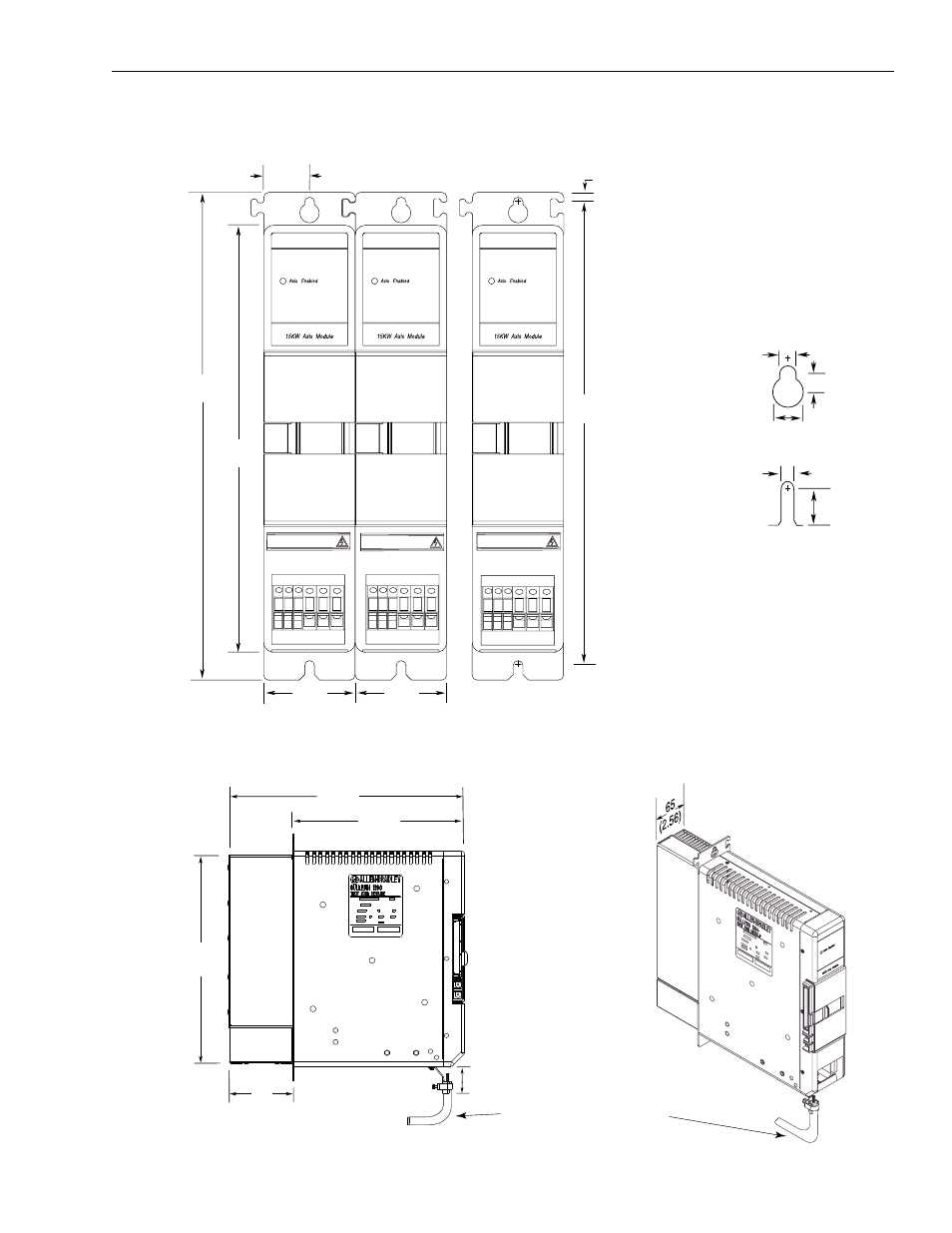

Figure A.6
1394
x-AM50, -AM50-IH, -AM75, and -AM75-IH Axis Module Front View
Figure A.7
1394
x-AM50 and -AM75 Axis Module Side View
350.0
(13.78)
400.0
(15.75)
37.5
(1.48)
75.0
(2.95)
75.0
(2.95)
385.0
(15.16)
8.0 (0.32)
When using the gasket provided with the
axis module, torque the M6 to 7.9 N-m
and the 1/4-20 to 75 lb-in.
All Slots Accept M6 or 1/4-20 Mtg. Screws
Depth = 280 (11.02)
Mounting Hole Detail
Dimensions are in millimeters and (inches)
8.0 (0.31)
8.0 (0.31)
10.1 (0.40)
15.9 (0.63)
12.0 (0.47)
Dimension shown is for mounting hardware
location and does not reflect the location of
the lower slot radius.
1
1
Fastener
location
Heat sink width only
Dimensions are in
millimeters and (inches)
43.69
(1.72)
105
(4.13)
338.1
(13.31)
385
(15.16)
280
(11.02)
Important: Additional clearance
below the axis is necessary to provide
the recommended cable bend radius.
Refer to
1326 Cables for 460V AC
Servo Motors (publication 1326A-
2.11) for more information.
