Overview
1-3
1394 System Overview
GMC System
The 1394 GMC System provides all the functionality of the IMC S
Class Compact Motion Controller and power conversion within the
1394 system module. Allen-Bradley offers two versions of the 1394
GMC system module (Standard GMC and GMC Turbo). Both
systems are completely programmed and commissioned using
GML
(Graphical Motion Control Language), offer Allen-Bradley
DH485, RS-232, and RS-422 as standard communications, and have
Remote I/O and AxisLink available as communication options.
The 1394x-SJTxx-C (Standard GMC) system supports four axis
modules and provides four channels of auxiliary encoder input. The
1394C-SJTxx-L (Standard GMC) provides the same functionality of
the 1394x-SJTxx-C, but supports only one axis module and provides
two channels of auxiliary encoder input.
In addition, the 1394x-SJTxx-T (GMC Turbo) provides more GML
application program memory and executes the programs faster. The
1394x-SJTxx-T offers 64K of memory with a 32-bit processor while
the 1394x-SJTxx-C offers 32K of program memory with a 16-bit
processor. The 1394x-SJTxx-T also includes a direct, high speed link
to the SLC 5/03
, 5/04
,
or 5/05
that simplifies the programming
required to transfer data between the 1394x-SJTxx-T and the SLC
.

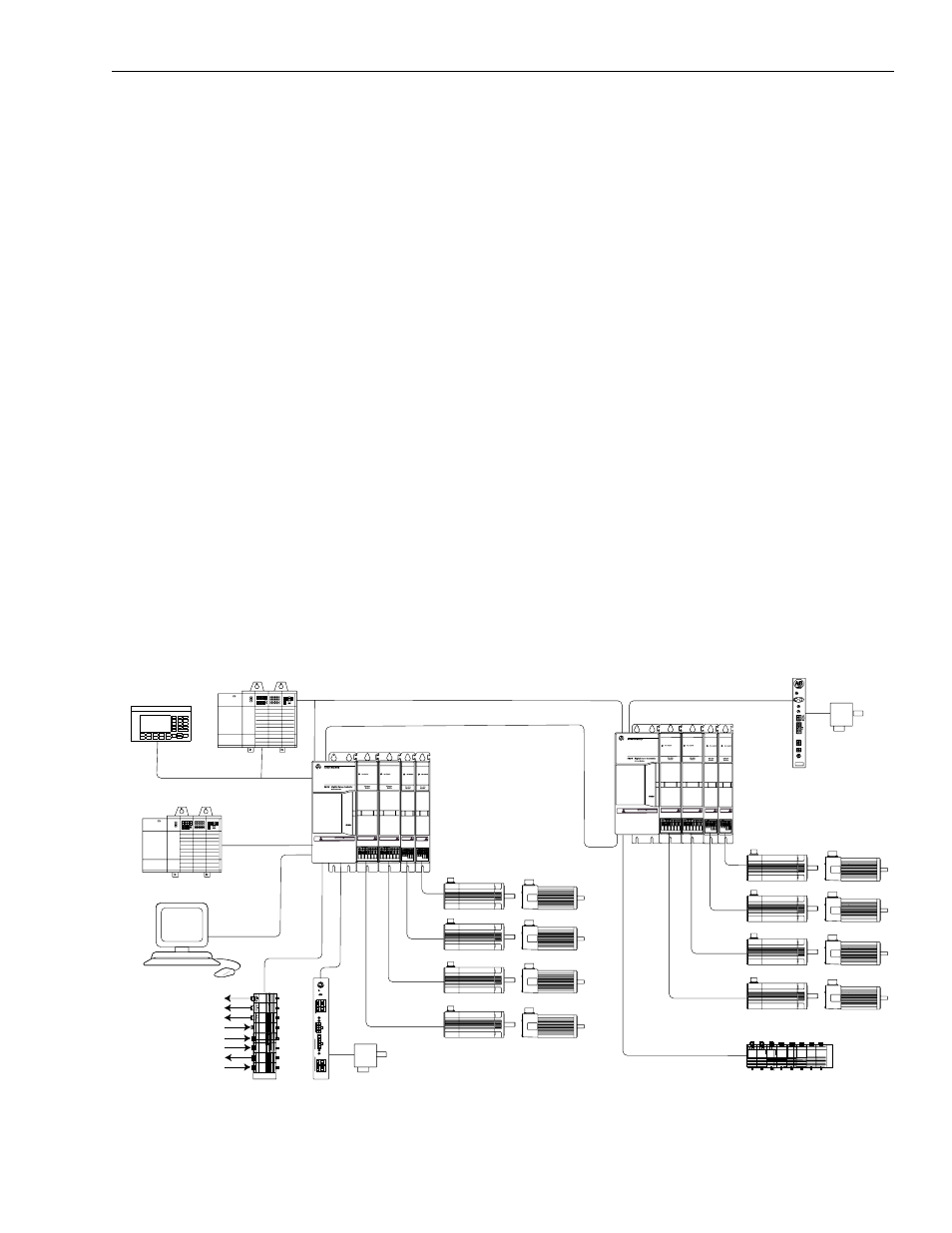

Figure 1.1
Two GMC Turbo Systems (1394
x-SJTxx-T)
RIO
DH-485
AxisLink
GML
1326AB and 1326AS Motors
1326AB and 1326AS Motors
Flex I/O
ALEC
845H
Encoder
RS-232/-422
SLC 500
SLC 5/03, 5/04, or 5/05
1
1394
x-SJTxx-T
1394
x-SJTxx-T
PanelView 550
This interface is only available with the 1394
x-SJTxx-T system module.
1
TM
1746-C7 or -C9
1
Flex I/O
Discrete Outputs
Discrete Inputs
Analog Outputs
Analog Inputs
AEC
AEC
Reset
Axis 0
Axis 1
A
B
A
B
A
x
is
1
A
x
is
0
2
1
SSI
Control
Configur
ation
Configur
ation
Switches
Switches
Encoder
Encoder
Po
w
e
r
SSI
Control
A
B
10
9
8
7
6
2
5
4
3
1
8
7
6
2
4
3
1
5
A
B
10
9
8
7
6
2
5
4
3
1
8
7
6
2
4
3
1
5
4100-AEC
842A
Encoder
AxisLink
