Appendix C Setting Up a Control Surface 341
d Enter a port number, then press ENTER to accept and continue.
For example, you might enter: 49153
Note: To be safe, use one of the range of values set aside as “dynamic and/or private
ports” from 49152 through 65535.
4 Turn off both the MCS-3000 and the MCS-Spectrum.
Now that your control surface is configured, you need to set it up within Color.
To use the MCS-3000 and MCS-Spectrum with Color:
1 Turn on the MCS-Spectrum first, then turn on the MCS-3000.
2 Open Color.
If you’re opening Color for the first time, you’ll be presented with the Control Surface
Startup dialog. If you’ve already opened Color and have disabled the option for making
this dialog appear, you’ll need to click the Show Control Surface Dialog button in the
User Prefs tab of the Setup room.

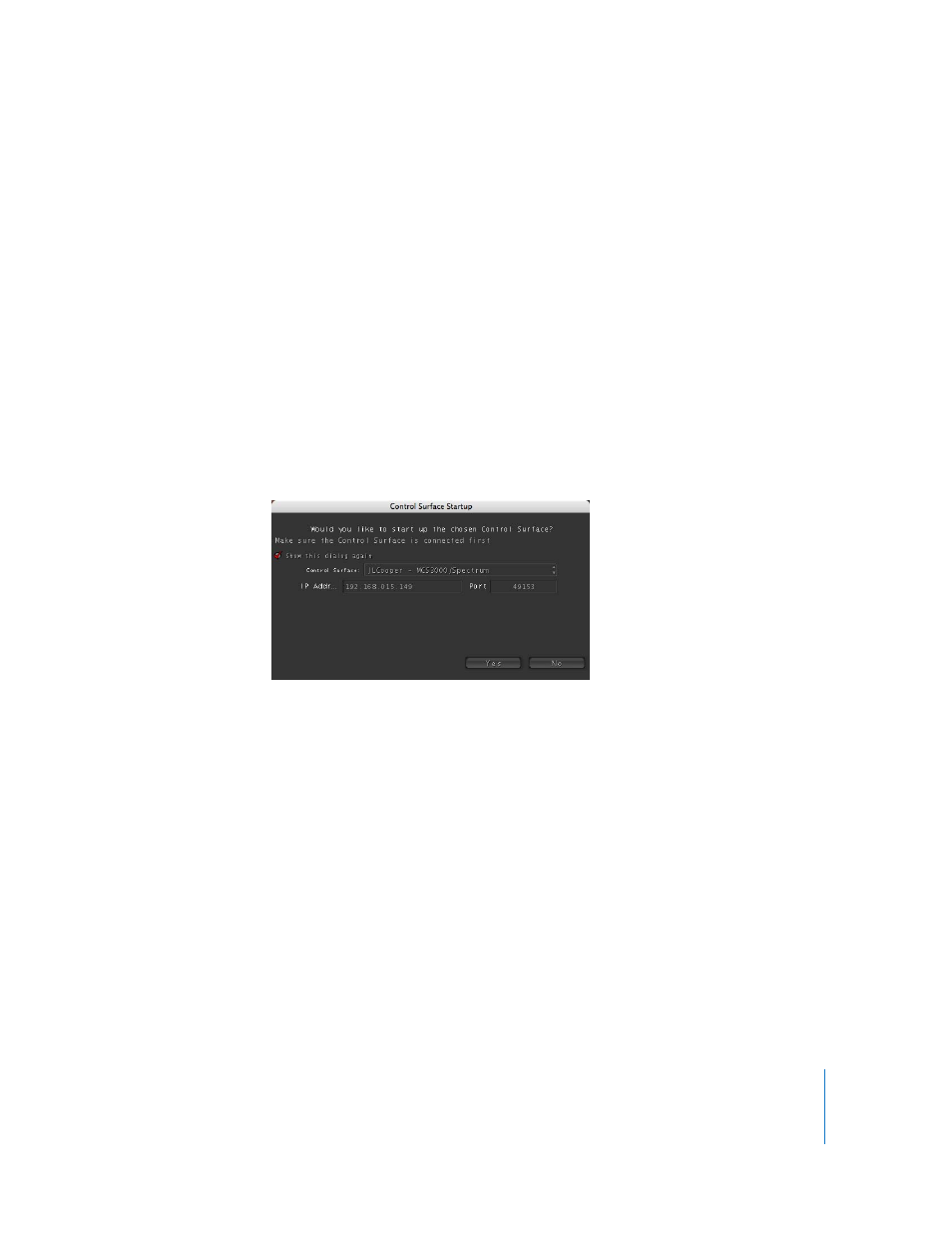

3 When the Control Surface Startup dialog appears:
a Choose “JLCooper - MCS3000/Spectrum” from the Control Surface pop-up menu.
b Type the IP address you entered into the MCS-3000 into the IP Address field, and
press Enter.
c Type the Port number you entered into the MCS-3000 into the Port field, and press
Enter.
4 Click Yes.
The MCS-3000 and MCS-Spectrum should now be ready for use with Color.
