Programming
134 900-0117-01-00 Rev C
Figure 164 Modifying an Existing Configuration (continued)

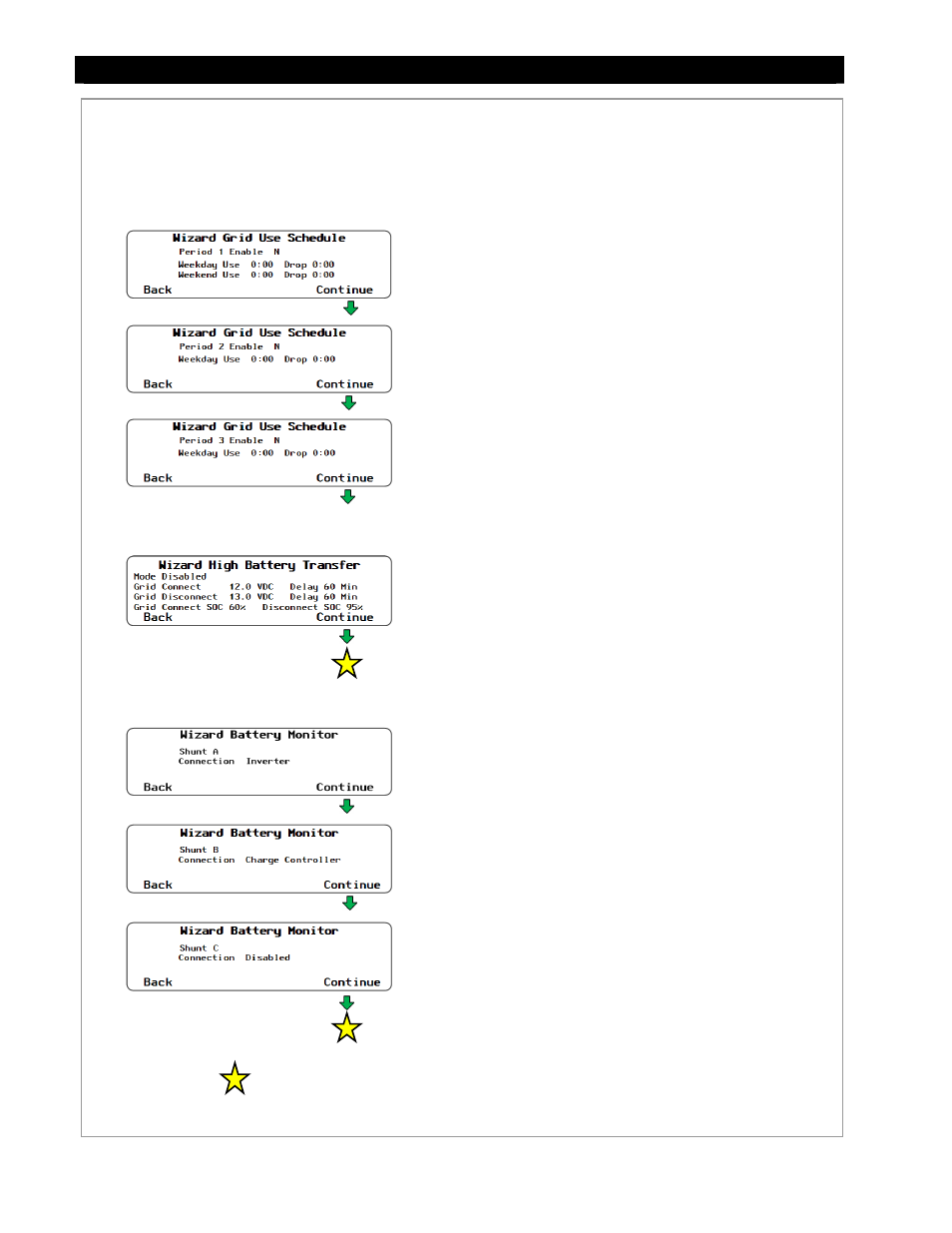

Set Points:
Wizard Grid Use Schedule (see page 126):
 Period 1 Enable - N or Y
 Weekday Use - 0:00 Drop 0:00
 Weekend Use - 0:00 Drop 0:00
 Period 2 Enable - N or Y
 Weekday Use - 0:00 Drop 0:00
 Weekend Use - 0:00 Drop 0:00
 Period 3 Enable - N or Y
 Weekday Use - 0:00 Drop 0:00
 Weekend Use - 0:00 Drop 0:00
Wizard High Battery Transfer (See pages 122 and 125):
 Mode – Y or N
 Grid Connect - xx.x VDC Delay xx min
 Grid Disconnect - xx.x VDC Delay xx min
 Grid Connect SOX xx% Disconnect SOC xx%
Wizard Battery Monitor (See page 112):
(These screens will only be available if a FLEXnet DC Battery
Monitor is installed in the system.)
Shunt A:
 Connection - Disabled, Inverter, Charge Controller,
DC Load, DC Gen, Wind Turbine, Hydro
Shunt B:
 Connection - Disabled, Inverter, Charge Controller,
DC Load, DC Gen, Wind Turbine, Hydro
Shunt C:
 Connection - Disabled, Inverter, Charge Controller,
DC Load, DC Gen, Wind Turbine, Hydro
...continued from previous page.
Soft Keys:
 moves back one screen.
 moves forward to the next screen.
Pressing from the last setup screen takes the user to the Setup
Complete screen. See Figure 166 to apply the changes to the system.
