Director Element Manager user guide

91

Configuring management style

To configure management style for the director, use the following steps:

1.

Click Product > Management Style in the Element Manager window.

NOTE:

To change this value, you must first set the director offline.

NOTE:

If you change the management style to FICON, all ISL/E-Ports are disabled.

2.

Click either the Open Systems or FICON option buttons:
• Use Open Systems management style for all (non-FICON) Fibre Channel environments.
• If the FICON Management Server feature is enabled, the default management style will be

FICON. The management style cannot be changed to Open Systems with the FICON

Management Server feature enabled. Typically, FICON management style is used when

attaching an IBM FICON Parallel Enterprise or IBM zSeries server to the director and

implementing inband director management through a Fibre Connection (FICON) channel.

Configuring operating parameters

Use the procedures in this section to set parameters on the director for switch and fabric operation.

These operating parameters are stored in NV-RAM on the switch.

Configuring switch parameters

Use procedures in this section to set parameters on the director for switch operation through the

Configure Switch Parameters dialog box.

1.

Verify that the director is set offline. For instructions, see ”

Set online state

” on page 142.

CAUTION:

Setting the director offline terminates all Fibre Channel connections.

2.

Click Configure > Operating Parameters > Switch Parameters. The Configure Switch

Parameters dialog box displays.

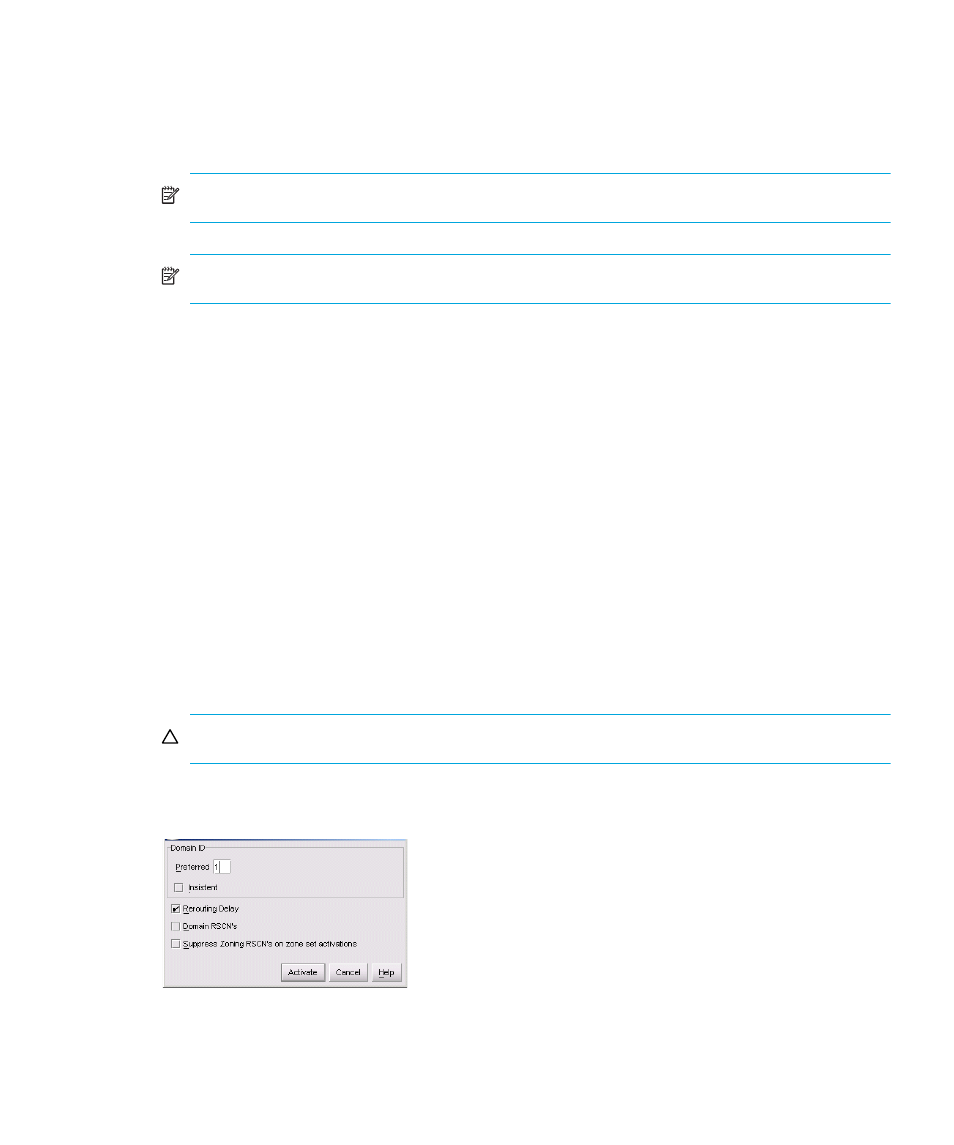

Figure 32

illustrates this dialog box for the Director 2/140.

Figure 32

Configure Switch Parameters dialog box (Director 2/140)
