Director Element Manager user guide

23

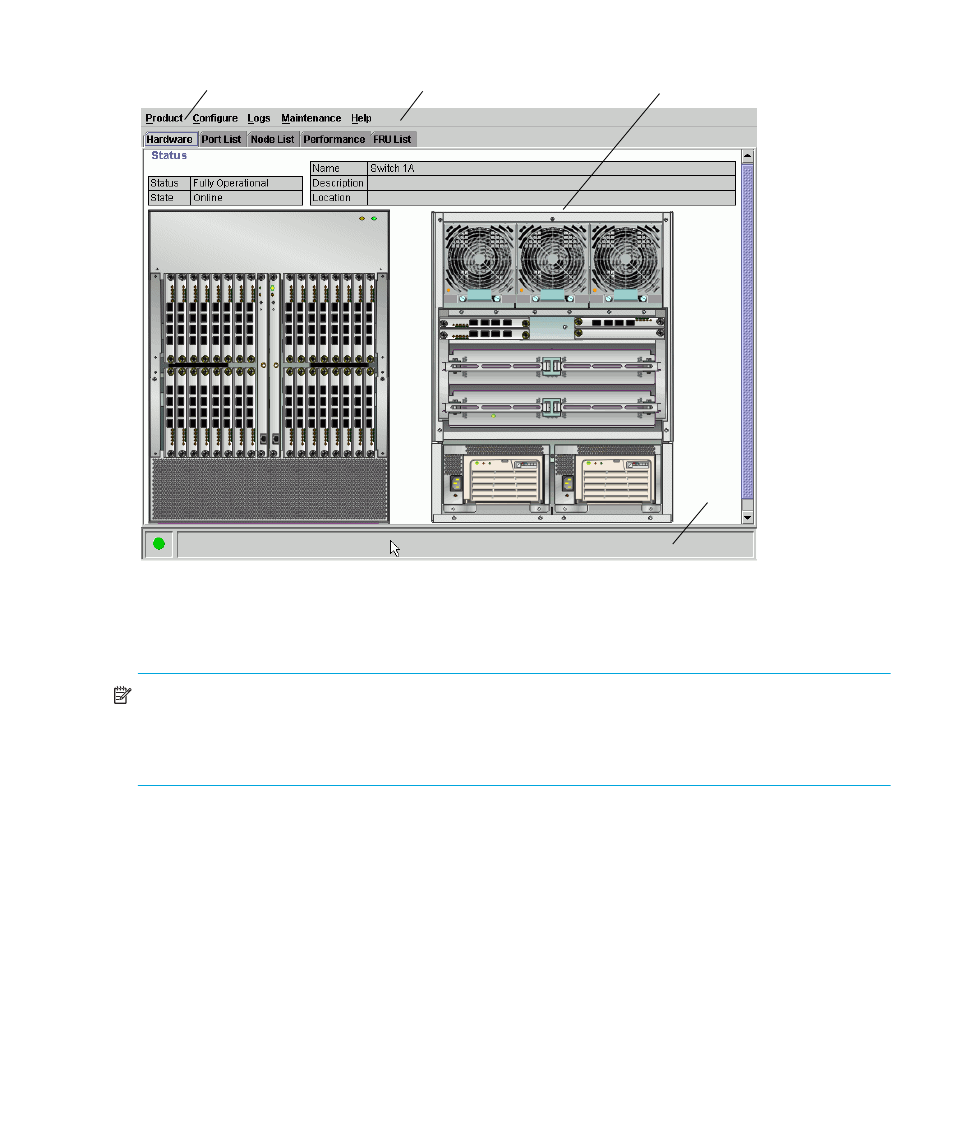

Figure 4

Director 2/140 Element Manager window

NOTE:

The HAFM application window is available as a separate window. You can drag the

Element Manager window away from the HAFM application window and view both windows on

your desktop or minimize one or both of them to icons if desired. You can have a maximum of four

Element Manager windows open concurrently.

Window layout and function

The Element Manager window is divided into the following four main areas (See

Figure 3

on page

22 or

Figure 4

.):

Menu bar

View tabs

View panel

Status bar

The sections that follow describe each of these areas.

1

Menu bar

2

View tabs

3

View panel

4

Status bar

3

1

2

4
