Displaying FRU information

Double-click a CTP card, power supply, cooling fan module, or SBAR card in the Hardware view to

display an FRU Properties dialog box. This dialog box displays the FRU name, slot position relative

to identical FRUs installed in the chassis, active or failed state, beaconing state (CTP card and

SBAR card) part number, and serial number. For the CTP card’s dialog box, the Speed Capability

of the card displays as either

1 Gig

or

2 Gig

.

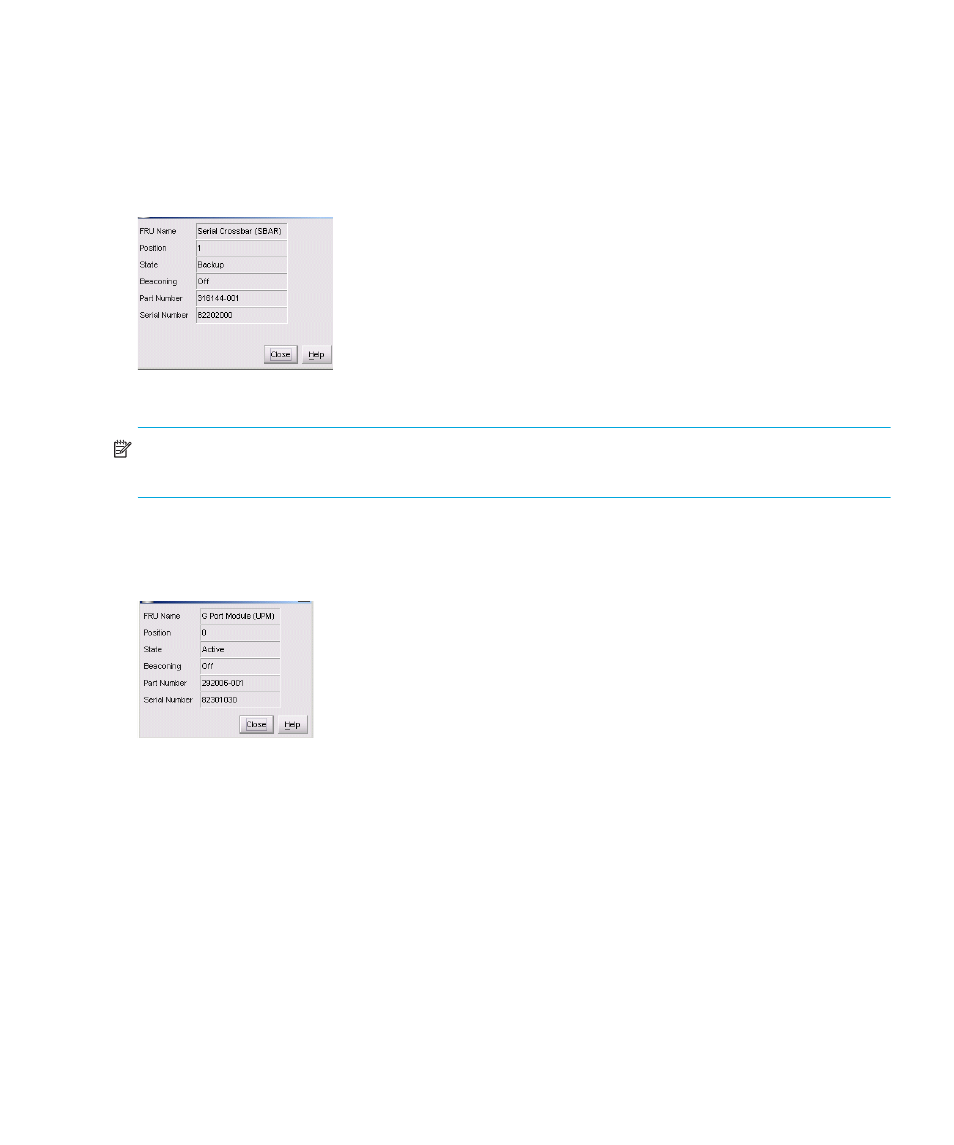

Figure 14

FRU Properties dialog box

NOTE:

You can display a properties dialog box for all FRUs by right-clicking on the FRU and

choosing FRU Properties from the menu.

Display a Properties dialog box for a port card by right-clicking on a card and choosing FRU

Properties from the menu. To display a properties dialog box for an individual port, you must be in

the Port Card view. See ”

Port Card view

” on page 63 for details.

Figure 15

Port Card FRU Properties dialog box
