Director Element Manager user guide

17

You can install the HAFM and Element Manager clients on remote computer systems, as shown in

Figure 1

on page 17. For instructions, refer to the section in HP StorageWorks HA-Fabric Manager

user guide that pertains to the operating system of your computer.

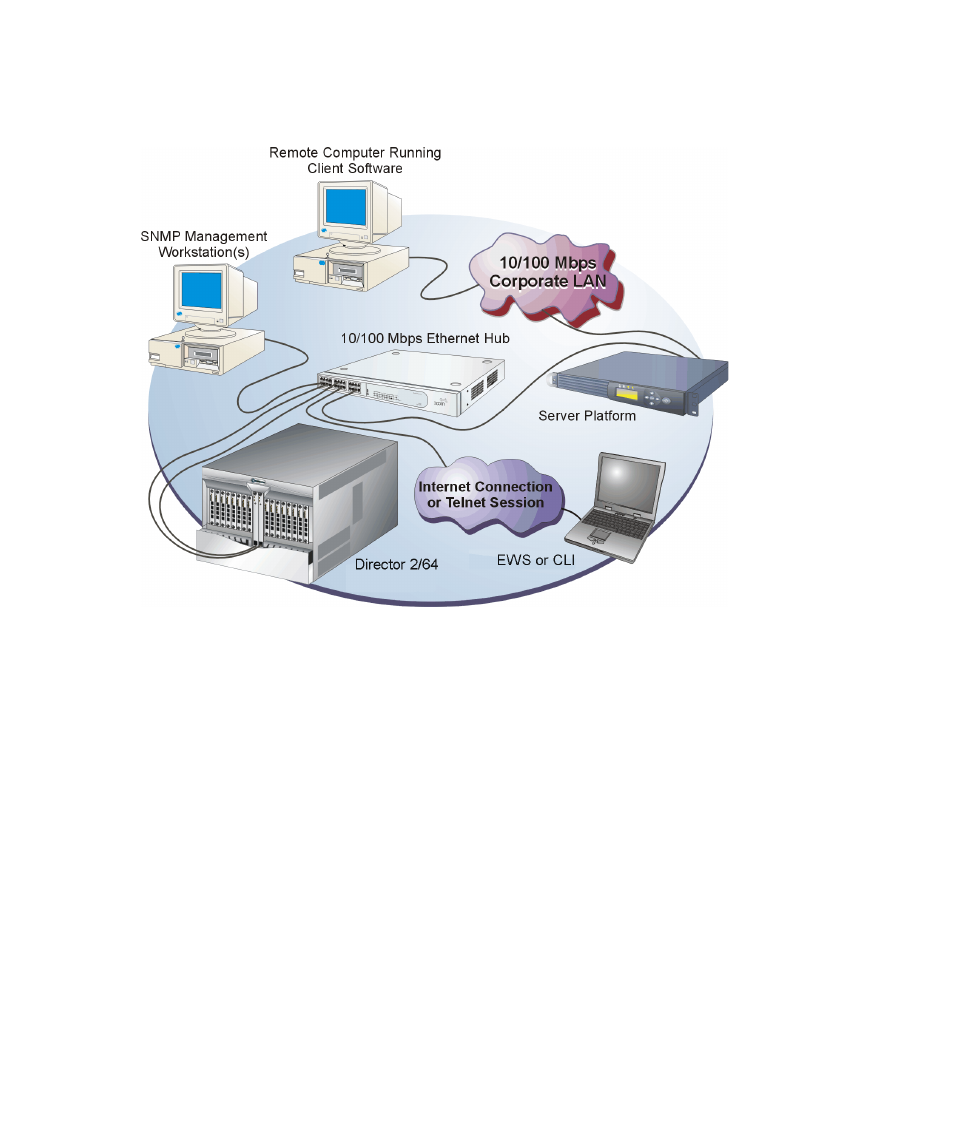

Figure 1

HAFM appliance and remote client computer configuration (dual Ethernet)

Using the Element Manager, you can:

Back up and restore configuration data.

Clear the system error indicator.

Configure extended distance buffering for ports.

Configure Fibre Channel operating parameters for the director, such as BB_Credit, R_A_TOV,

E_D_TOV, preferred domain ID, switch priority, domain RSCNs, preferred and insistent domain

ID, director speed (Director 2/64 only), and rerouting delay.

Configure individual ports with a port name describing the node attached to the port.

Configure keys for new features.

Configure link incident (LIN) alerts.

Configure interoperability mode for multiswitch fabrics.

Configure Open Trunking if the optional Open Trunking feature is installed.

Configure preferred paths for interswitch links (ISLs).

Configure a nickname to display instead of the WWN for the director and for attached node

devices.

Configure Port Binding.
