Port List view
Display the Port List view as shown in
in the View panel by selecting the Port List option
from the view tabs.

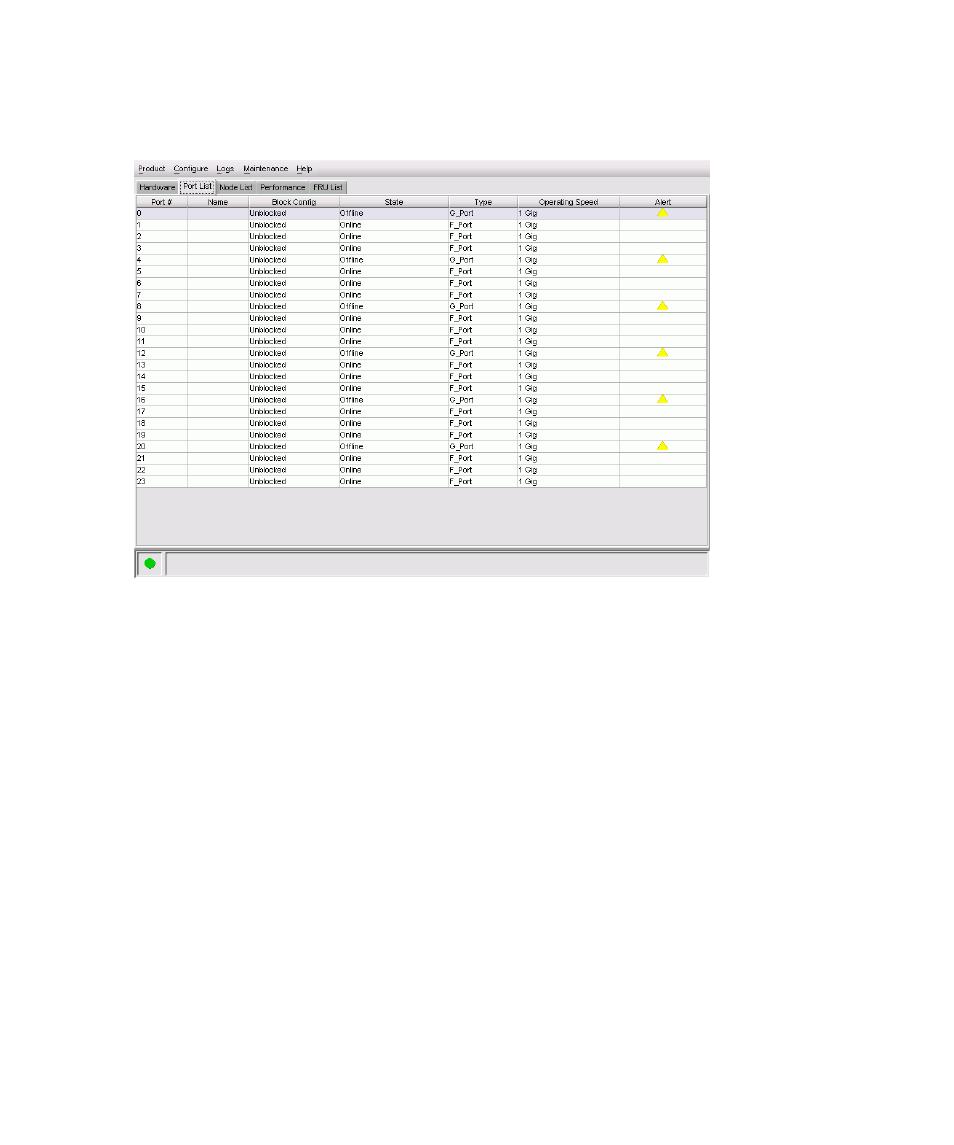

Figure 26
Port List view
The Port List view displays the following information on all ports that can be installed in the director.
All information is updated automatically.
•
#—The physical port number, from 0–63 on the Director 2/64 and 0–127 and 132–143 on the
Director 2/140. Note that for this director, ports 128–131 are internal ports and not available
for external connections.
•
Addr (FICON management style only)—Displays the logical address of the port, which is the
port number in hexadecimal format. For example, the address for port 0 is 4 (0+4). If port
addresses have been swapped, those addresses will be followed by an asterisk (*).
•
Name—Displays the port name as configured through the Configure Ports dialog box.
•
Block Config—Indicates the blocked or unblocked configuration of the port as set through the
Configure Ports dialog box.
The Block Port option is available through port right-click menus in the Hardware view, port row
right-click menus in the Port List view, port bar graph right-click menus in the Performance view,
and the Port secondary menu of the Product menu on the menu bar.
The Block Port option is also available on the port row right-click menus in the Port List view, the
port bar graph right-click menus in the Performance view, and the Port secondary menu of the
Product menu on the menu bar. Blocked states are:
