Monitoring and managing the director

70

Channel Wrap (FICON management style)—Click this option while in FICON management

style to display a check mark and allow a channel wrap test to be initiated from an attached

host or device. In this test, frames are sent to the director port, then the director echoes the

frames back to the sending device to test the channel. The director remains in channel wrap

mode until the option is disabled. While in channel wrap mode, the port can only accept echo

commands from the host and displays to be blocked to all other communication. Click the check

box to remove the check mark and disable channel wrap.

Swap Ports (FICON management style only)—Click this option while in FICON management

style to display the Swap Ports dialog box. Use this dialog box to swap addresses between

ports. For details, see

Swap ports (FICON management style)

” on page 140.

Clear Link Incident Alert(s)—Click this option on the port’s right-click menu on the Port Card

view and the Port List view to display the Clear Link Incident Alert(s) dialog box. Click This port

only to clear the attention indicator for the selected port on the Hardware view, the Port List

view, and the Performance view. Click All ports on director to clear all ports. In addition, the

procedure clears the alert description in port Properties dialog boxes. If there are no link

incident alerts set for a port, no actions occur. Although you can manually clear link incidents,

they may also be cleared by actions outside of the user interface, such as when rebooting the

HAFM appliance.

Reset Port—Click this option to display a confirmation dialog box. Click Yes to reset the port. If

a switch is attached to the port and online, this operation sends a link reset to the attached

switch; otherwise, this action disables port beaconing for the port. If the port is in a failed state,

such as after failing a loopback test, the reset restores the port to an operational state, clearing

the service required (amber) LED. The reset does not affect other ports in the director.

Port Binding—Right-click any port in the Port Card view right-click menu and select Port Binding

to display the Port Binding dialog box, as shown in

Figure 24

on page 70. Use this dialog box

to allow a device with a specific WWN or nickname to have exclusive communication

privileges over a port. To use this dialog box, see the following paragraphs.

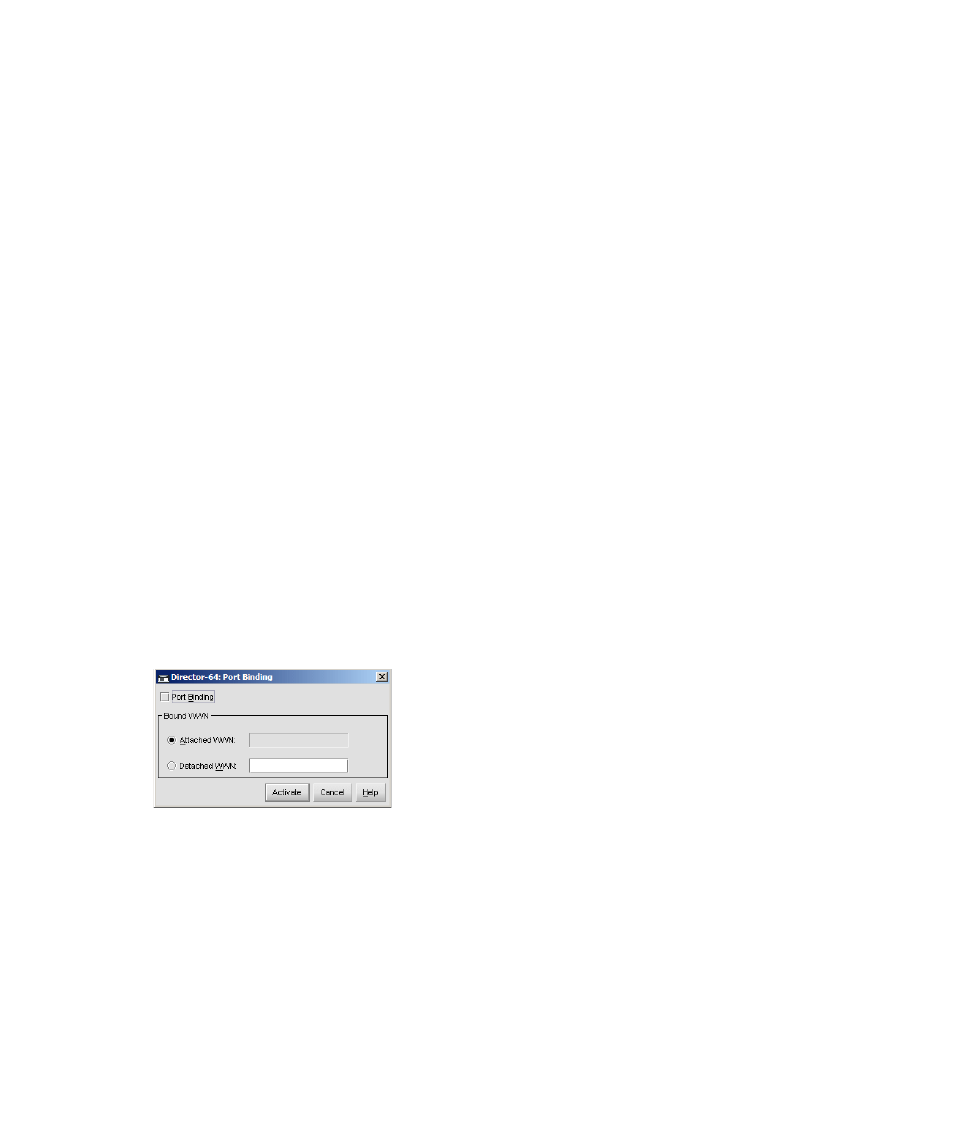

Figure 24

Port Binding dialog box

Use the Port Binding dialog box to set the following options:
• Port Binding—Click to place a check mark in the box and enable Port Binding for the port.

When enabled, only a specific device can communicate through the port. This device is

specified by the WWN or nickname entered into the Bound WWN field (either the Attached

WWN or Detached WWN options). With the check box cleared, any device can

communicate through the port even if a WWN or nickname is specified in the Bound WWN

field.
