FRU List view

To display the FRU List view, click the FRU List view tab. A table, as shown in

Figure 11

, displays in

the View panel. This table includes information about each FRU installed in the director. All data is

dynamic and updates automatically.

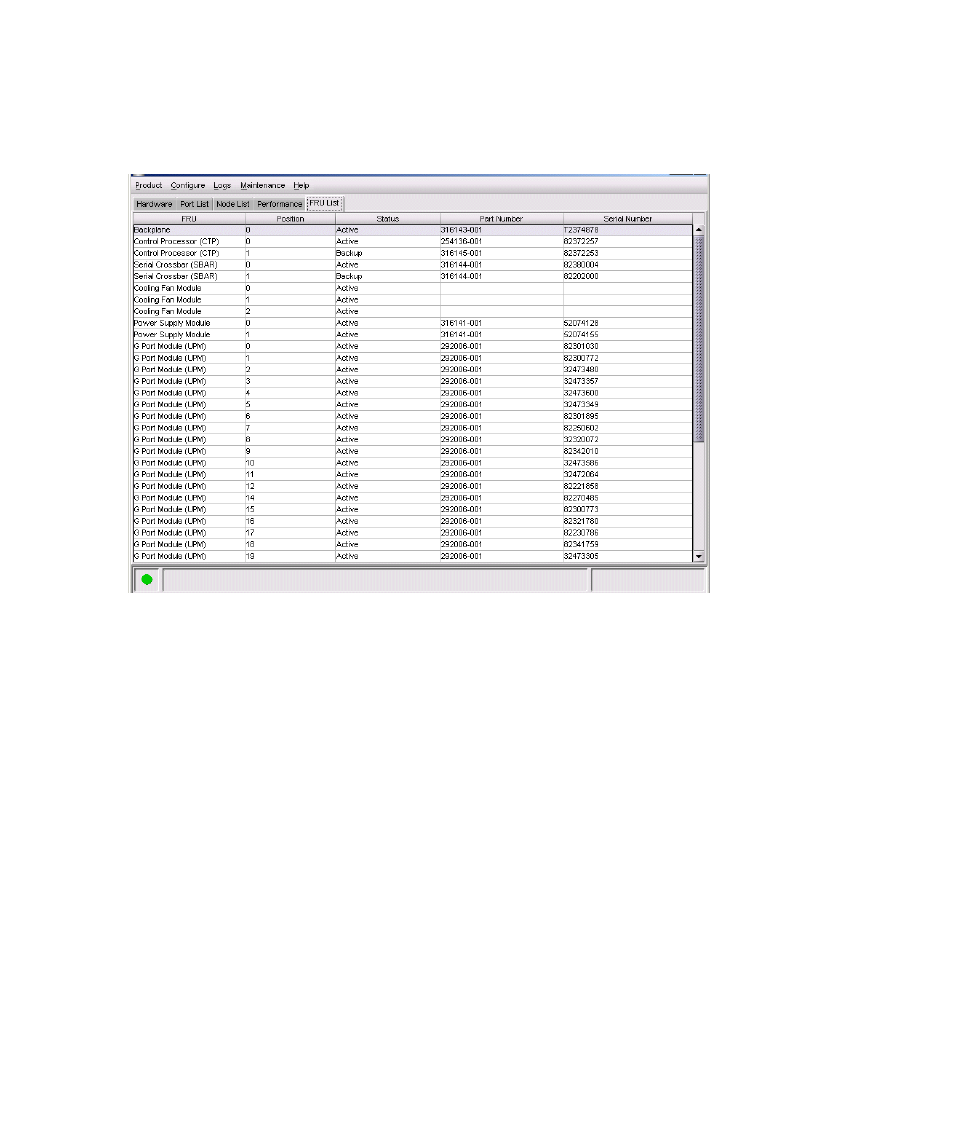

Figure 11

FRU List view

To display a Properties dialog box for an FRU, click on the FRU row and then select Product > FRU

> FRU Properties.
For details on navigating and monitoring via the FRU List view, see ”

FRU List view

” on page 84.

Status bar

The status bar is located along the bottom of the Element Manager window. (See

Figure 3

on page

22 or

Figure 4

on page 23.) Then status bar includes a symbol that displays on the left side of the

bar and messages that display in the panel to the right of the symbol. The symbol indicates the

current operating status of the director, and the messages provide descriptions of menu options as

you move the mouse pointer over the options under the menu bar.
See

Table 2

on page 43 for the meaning of these status symbols and of the corresponding alert

text that displays in the Status table at the top of the Hardware view in the main panel.
