Director Element Manager user guide

33

View tabs

Select one of the following view tabs across the top of the Element Manager window to display

related information and menus in the View panel:

Hardware

Port List

Node List

Performance

FRU List

View panel

Views selected from the view tabs display under the tabs in the View panel. For detailed

information on using these views, see

Monitoring and managing the director

” on page 51.

Hardware view

The Hardware view displays the current hardware components and field replaceable units (FRUs)

installed in the director. Menu options in this view allow you to control component operation. Menu

options, as well as visual status indicators, allow you to monitor component status. See

Figure 5

on

page 33 for an example of the Director 2/64 Hardware view and

Figure 6

on page 34 for an

example of the Director 2/140 Hardware view.

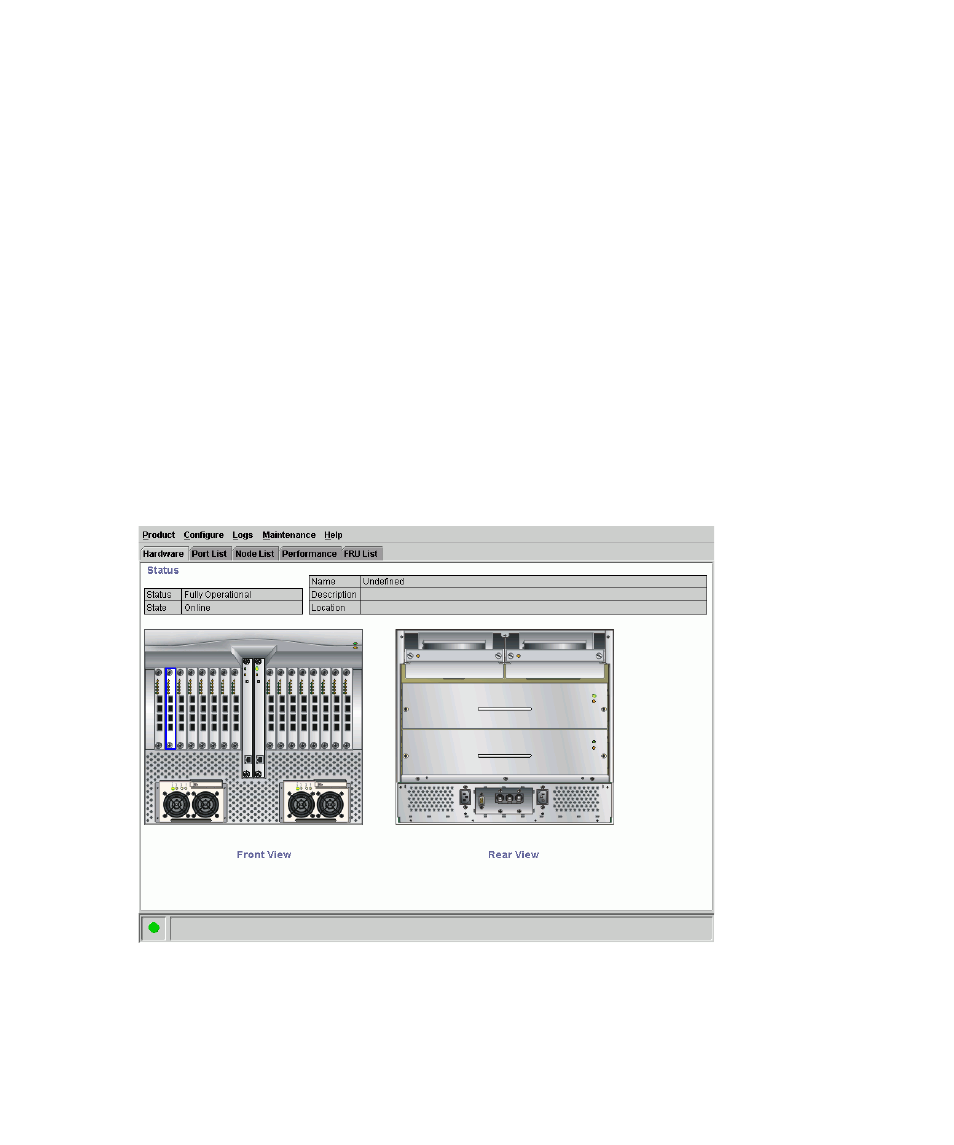

Figure 5

Director 2/64 Hardware view
