Director Element Manager user guide 43
If a gray square displays in the status bar (no Ethernet connection), a reason for the status displays
in the Status table at the top of the Hardware view. See ” Director Status table” on page 52 for
details. See Table 2 for the meanings of status symbols that display in Element Manager views.

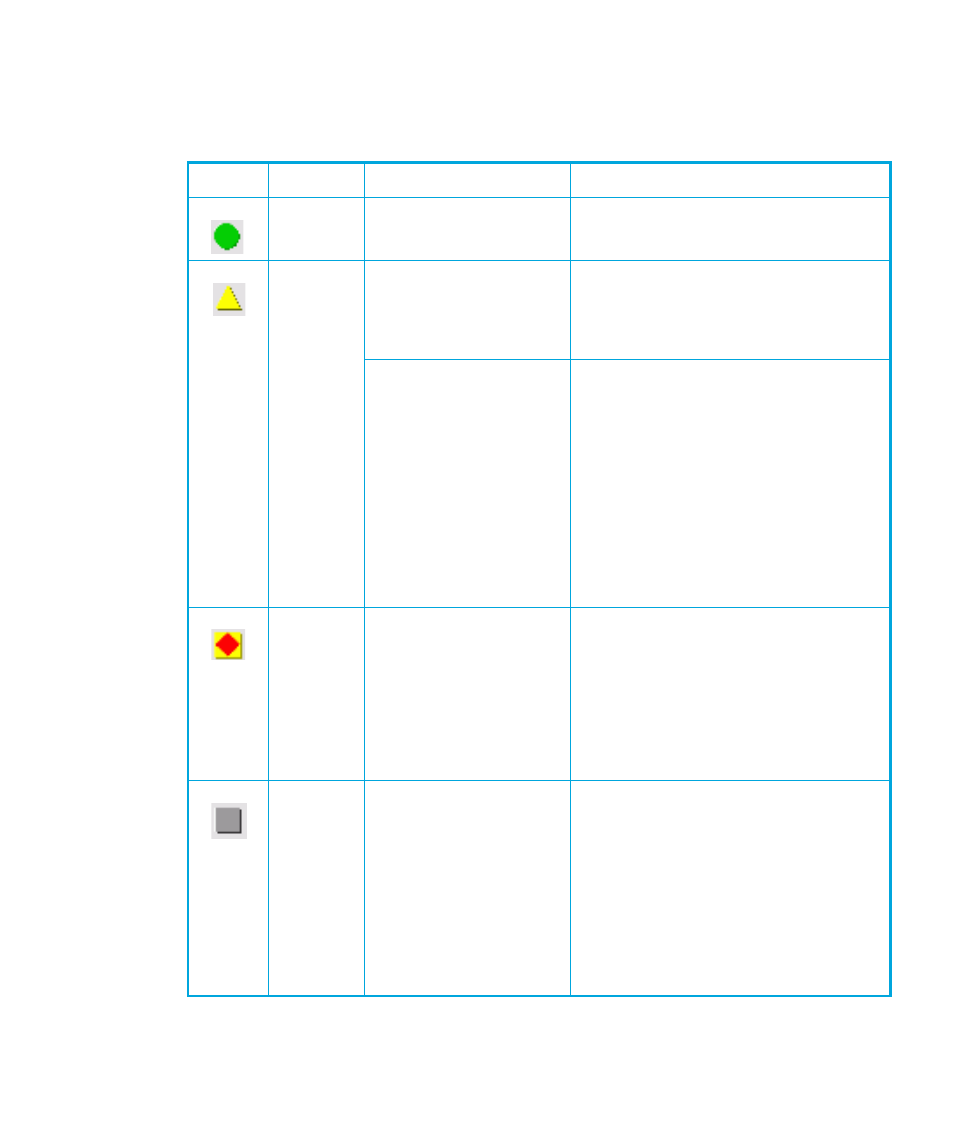

Table 2 Operating status—status bar and director Status table
Symbol Status bar Director Status table text Description
Green
Circle
Fully Operational All components and installed ports are
operational; no failures.
Yellow
Triangle
Redundant Failure A redundant component has failed,
such as a power supply, and the
backup component has taken over
operation.
Minor Failure A failure occurred which has decreased
the director operational ability. Normal
switching operations are not affected.
One or more Port cards failed, but at
least one Port card is still operational.
A fan has failed or is not rotating
sufficiently.
One of two CTP cards failed.
One of two SBAR cards failed.
Red and
Yellow
Diamond
NOT OPERATIONAL A critical failure prevents the director
from performing fundamental switching
operations.
All fans fail.
Both SBAR cards fail.
All installed Port cards fail.
Gray
Square
Never Connected
Link Timeout
Protocol Mismatch
Duplicate Session
Unknown Network
Address
Incorrect Product Type
Director status is unknown. This occurs if
the Ethernet network connection
between the HAFM appliance and the
director cannot be established or if the
CTP fails. See ” Director Status table” on
page 52 for details on the status table
text.
