Configuring the director 118
Creating new alerts
1. In the Hardware view, click Configure > Threshold Alerts. The Configure Threshold Alert(s)
dialog box displays, as shown in Figure 48 on page 118.
NOTE: If alerts are configured, they will display in table format showing the name of the
alert, type of alert (Rx, Tx, or Rx or Tx), and alert state (inactive or active).

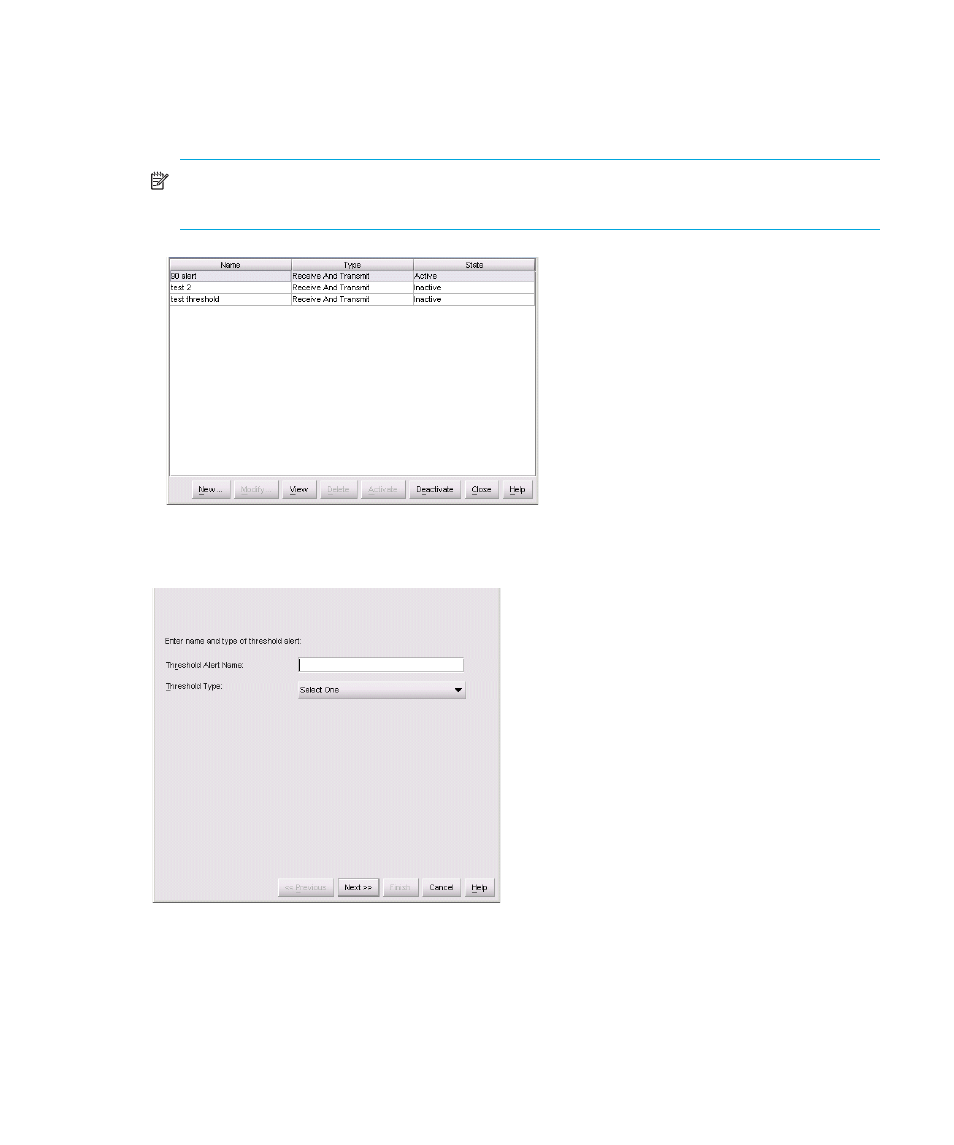

Figure 48 Configure Threshold Alert(s) dialog box
2. Click New. The New Threshold Alert dialog box displays, as shown in Figure 49 .
Figure 49 New Threshold Alerts dialog box - first screen
3. Enter a name from one to 64 characters in length. All characters in the ISO Latin-1 character
set, excluding control characters, are allowed.
4. Click one of the following on the drop-down list under the Name field:
• Rx Throughput—An alert will occur if the threshold set for receive throughput is reached
