Threshold Alert log

This log provides details of threshold alert notifications. Besides the date and time that the alert

occurred, the log also displays details about the alert as configured through the Configure

Threshold Alerts option under the Configure menu on the menu bar.

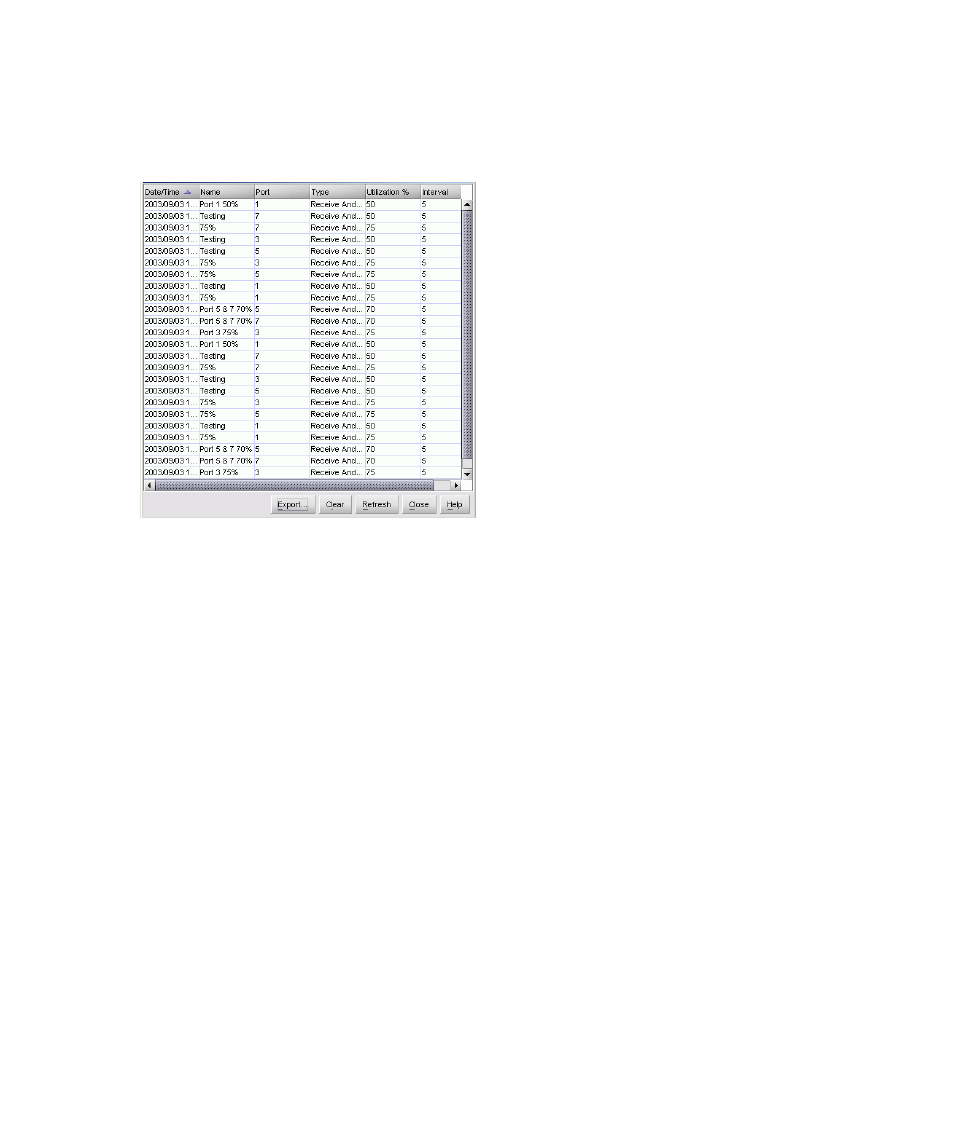

Figure 60

Threshold Alert log

Date/Time—Date and time stamp for when the alert occurred.

Name—Name for the alert as configured through the Configure Threshold Alerts dialog box.

Port—Port number where the alert occurred.

Type—The type of alert: transmit (Tx) or receive (Rx).

Utilization %—Percent usage of traffic capacity. This is the percent of the port’s throughput

capacity achieved by the measured throughput. This setting constitutes the threshold value and

is configured through the Configure Threshold Alerts dialog box. For example, a value of 25

means that threshold occurs when throughput reaches 25 percent of the port’s capacity.

Alert Time—The time that the utilization % must exist before an alert is generated. This is set

through the Configure Threshold Alerts dialog box.

Interval—The time interval during which the throughput is measured and an alert can generate.

This is set through the Configure Threshold Alerts dialog box.

Open Trunking Log

This log displays only if the optional Open Trunking feature is installed. For details, see ”

Open

Trunking Log

” on page 169.
