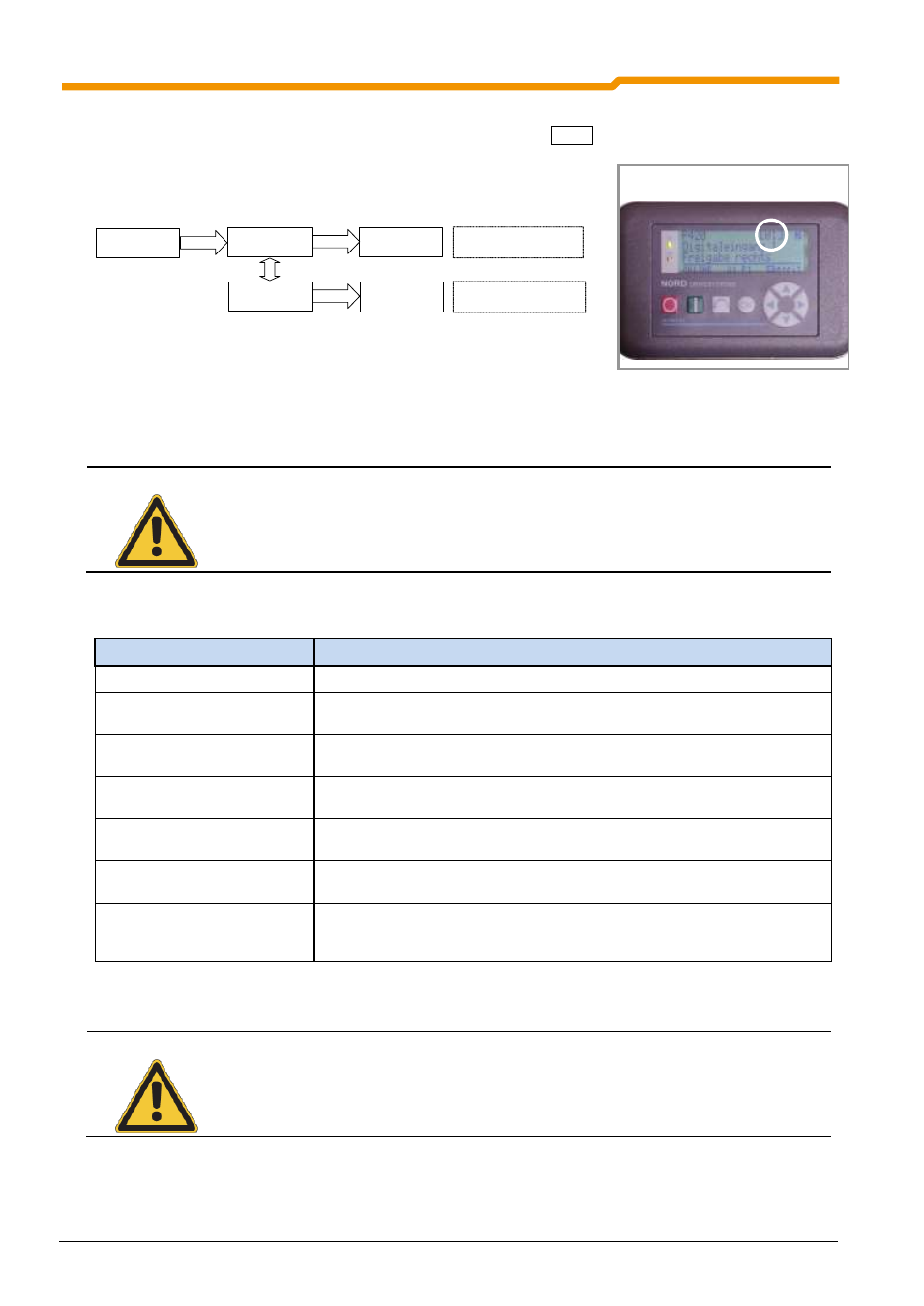

If the SimpleBox SK CSX-3H is used, the array level is shown by _ - 0 1 . With the ParameterBox SK PAR-
3H (picture on right) the selection options for the array level appear at the top right of the display.
SimpleBox SK CSX-3H
P_ 0 1 P50 2
P_ 0 2
OFF
OFF
Setting:
Value of master function 1
Setting:
Value of master function 2
ENTER ENTER
ENTER
VALUE
6.1 Frequency inverter parameterisation
Every frequency inverter is factory-set for a motor of the same power. All parameters can be adjusted
"online". There are four switchable parameter sets available during operation. As delivered, all parameters
are visible; however, some can be hidden with parameter P003.
NOTE
As there are dependencies between parameters, it is possible for invalid internal data and
operating faults to be generated briefly. Only the inactive or non-critical parameter sets should
be adjusted during operation.
The individual parameters are combined in various groups. The first digit of the parameter number indicates
the assignment to a menu group:
Menu group No. Master function
Operating displays (P0--): For the selection of the physical units of the display value.
Basic parameters (P1--): Contain the basic inverter settings, e.g. switch on and switch off procedures and,
along with the motor data, are sufficient for standard applications.
Motor data (P2--): Settings for the motor-specific data, important for ISD current control, and
selection of characteristic curve during the setting of dynamic and static boost.
Control terminals (P4--): Analog input and output scaling, specification of digital input and relay output
functions, as well as PI controller parameters.
Extra functions (P5--): Functions dealing with e.g. the BUS interface, pulse frequency or fault
acknowledgement.
Information (P7--): Display of e.g. actual operating values, old error messages, equipment status
reports or software version.
Array parameters -01
...
-xx
Some parameters in these groups can be programmed and read in several levels
(arrays). After the parameter is selected, the array level must also be selected.
NOTE: Parameter P523 can be used to load the factory settings for all parameters at any time. This
can be helpful, e.g. during the commissioning of a frequency inverter whose parameters no
longer correspond with the factory settings.
ATTENTION
All current parameter settings will be overwritten, if P523= 1 is set and confirmed with "OK".
To save the actual parameter settings, these can be transferred to the ParameterBox memory.
ParameterBox SK PAR-3H
