SK 180E Manual for frequency inverters
60 Pre-series version BU 0180 GB-0914
3.4 Details of external Technology Units SK TU4-
…
The technology units are divided into two different groups. The BUS group contains all the bus modules and
the I/O extension. These are connected to the SK 1x0E via the system bus.
The second group includes other technology units, e.g. the maintenance switch SK TU4-MSW.
Due to the very different functions, the device groups require different connection units.

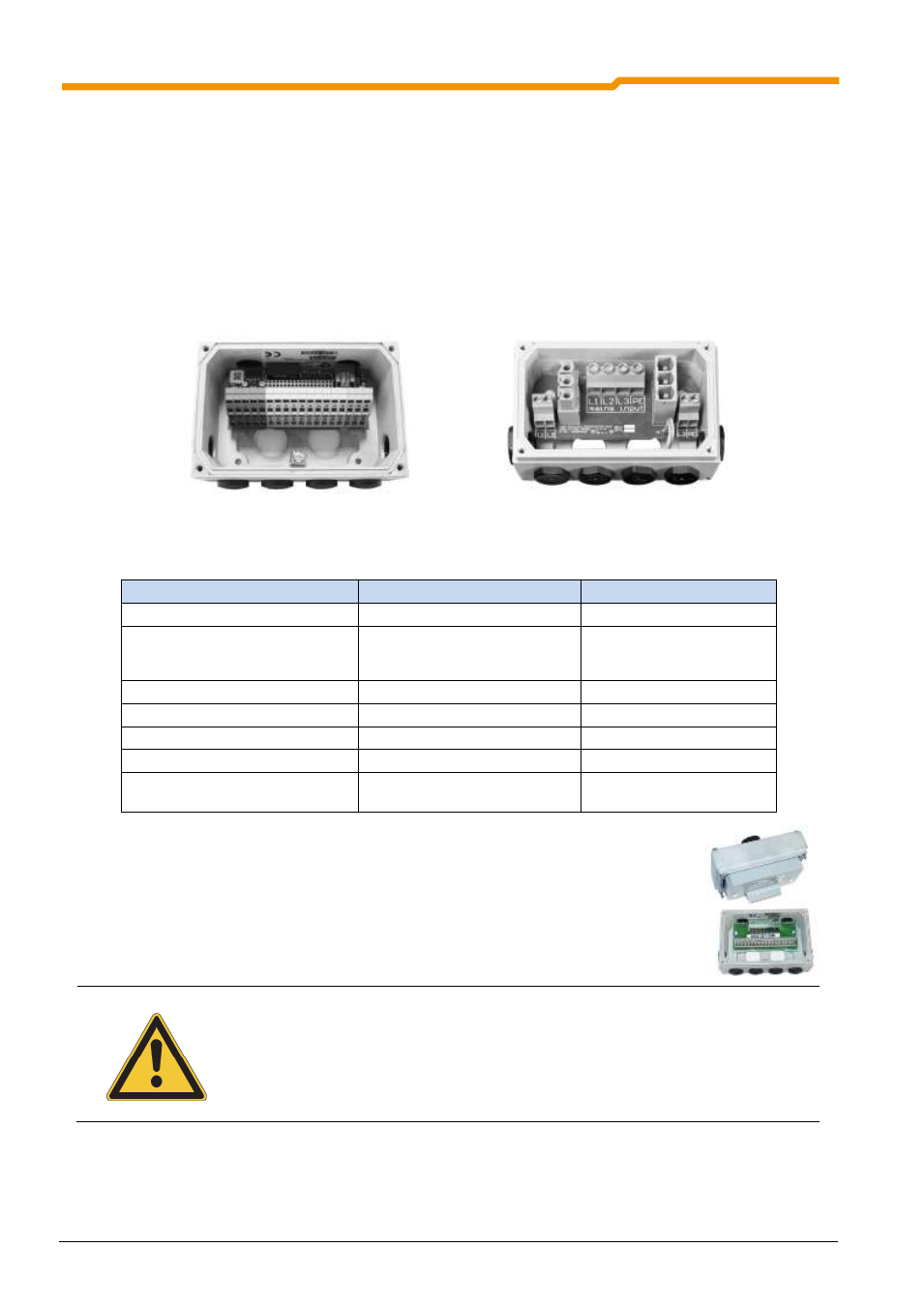

3.4.1 Connection unit SK TI4-TU-BUS / -MSW
SK TI4-TU-BUS SK TI4-TU-MSW
Feature Bus modules Maintenance switch
Designation of connection unit SK TI4-TU-BUS SK TI4-TU-MSW
Designation of Technology Units SK TU4-PBR- …
…CAO… / …DEV… / …EIP…/ …ECT… /
…PNT… / …POL… / …IOE…
SK TU4-MSW- …
24V - supply required! Yes No
24V supply integrated No No
System bus connection Yes No
Motor mounting possible Yes Yes
Mounting near to motor possible Yes, with wall-mounting kit
SK TIE4-WMK-TU
Yes, with wall-mounting kit
SK TIE4-WMK-TU
All connections are made via the connection unit. This includes customer control of the
module and connection of the module to the frequency inverter. In parallel with this, the
analog and digital inputs and outputs of the frequency inverter also remain available.
The relevant Technology Unit is attached to the appropriate Adapter Unit with screws.
Installation information can be found in Section 3.2.2.
NOTE
Connection terminals with identical designations are first connected internally, if the
technology unit has been mounted on the corresponding connection unit. Because of this,
when removing a BUS module from the connection unit, the relevant BUS system (e.g.
Profibus) is disconnected.
