Watlow EZ-ZONE

®

PM Integrated Controller

26

Chapter 2 Install and Wire

Warning:

Óç

Use National Electric (NEC) or other

country-specific standard wiring and

safety practices when wiring and

connecting this controller to a power

source and to electrical sensors or

peripheral devices. Failure to do so

may result in damage to equipment

and property, and/or injury or loss
of life.

Note:

Maximum wire size termination and

torque rating:

• 0.0507 to 3.30 mm

2

(30 to 12

AWG) single-wire termination or

two 1.31 mm

2

(16 AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be labeled

differently, depending on the model

number.

Note:

To prevent damage to the control-

ler, do not connect wires to unused
terminals.

Note:

Maintain electrical isolation between

analog input 1, digital input-outputs,

switched dc/open collector outputs

and process outputs to prevent
ground loops.

Note:

The control output common termi-

nal and the digital common terminal

are referenced to different voltages

and must remain isolated.

Note:

This Equipment is suitable for use in

CLASS I, DIVISION 2, Groups A, B,

C and D or Non-Hazardous locations
only. Temperature Code T4A

Warning:

ç

Explosion Hazard - Dry contact clo-

sure Digital Inputs shall not be used

in Class I Division 2 Hazardous Loca-

tions unless switch used is approved
for this application.

Warning:

ç

Explosion Hazard – Substitution of

component may impair suitability

for CLASS I, DIVISION 2.

Warning:

ç

Explosion Hazard - Do not discon-

nect while the circuit is live or

unless the area is known to be free

of ignitable concentrations of flam-

mable substances.

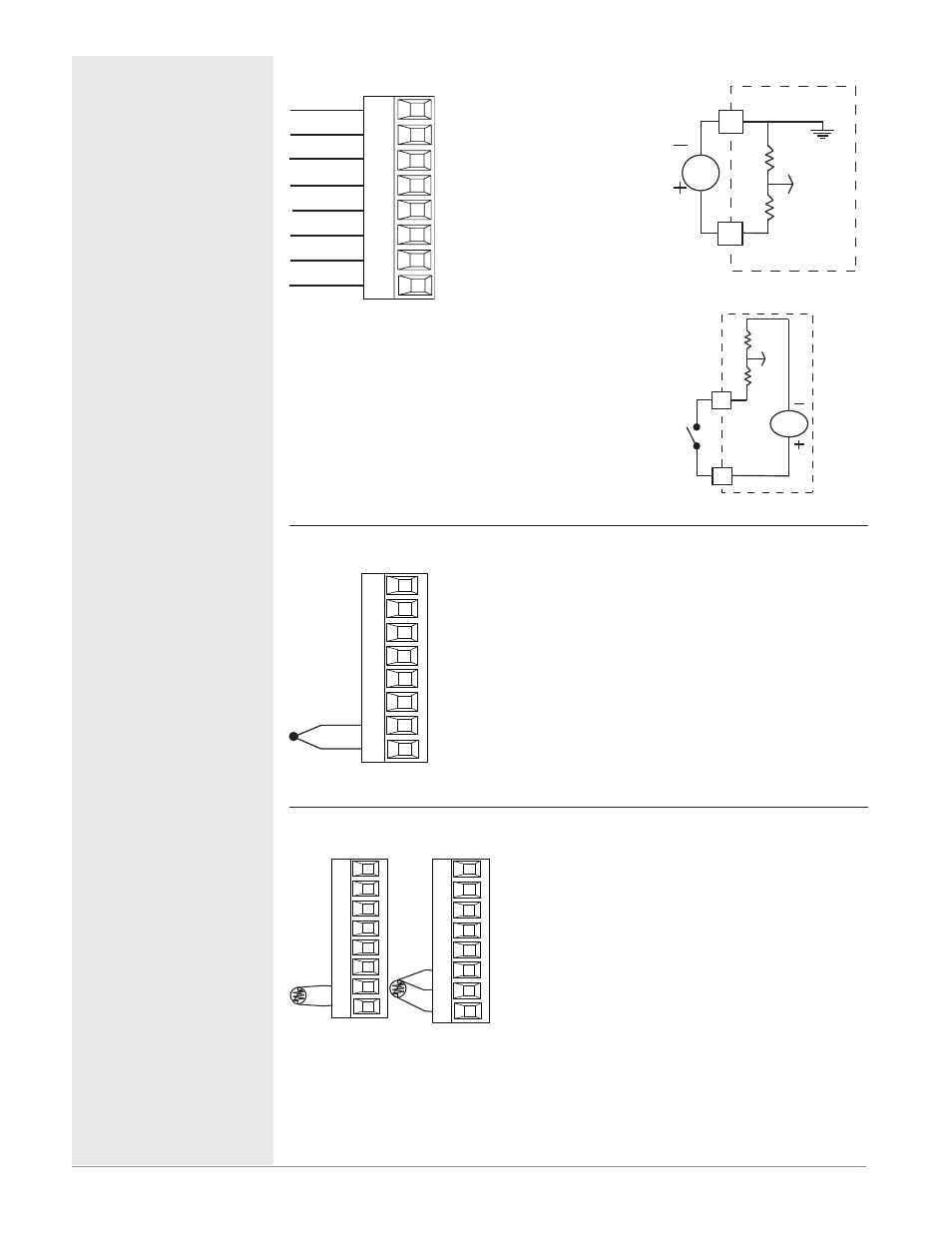

Digital Input 7 - 12

Common

DC Input

B7
D7
D8
D9
D10
D11
D12
Z7

Slot E

Internal Supply

DC Input

DC Input

DC Input

DC Input

DC Input

Input 1, 2 Thermocouple

-

+

S_
R_

Slot A,B

• 2K Ω maximum source resistance
• >20 MΩ input impedance
• 3 microampere open-sensor detection
• Thermocouples are polarity sensitive. The negative lead (usually

red) must be connected to S1 and/or S2.

• To reduce errors, the extension wire for thermocouples must be

of the same alloy as the thermocouple.

Input 1: PM _ [C,R,B

*

] _ _ _ - _ _ _ _ _ _ _ (S1/R1)

Input 2: PM _ _ _ _ _ - _ [C,R,L] _ _ _ _ _ (S2/R2)

*PM(4, 8 and 9) only

Input 1, 2 RTD

2-wire

S_
R_

S1

S3

Slot A,B

3-wire

T_
S_
R_

S1

S2

S3

Slot A, B

• platinum, 100 and 1,000 Ω @ 0°C
• calibration to DIN curve (0.00385 Ω/Ω/°C)
• 20 Ω total lead resistance
• RTD excitation current of 0.09 mA typical. Each ohm of lead

resistance may affect the reading by 0.03°C.

• For 3-wire RTDs, the S1 lead (usually white) must be con-

nected to R1 and/or R2

• For best accuracy use a 3-wire RTD to compensate for lead-

length resistance. All three lead wires must have the same

resistance

Input 1: PM _ [C,R,B

*

] _ _ _ - _ _ _ _ _ _ _ (S1/R1),(T1/S1/R1)

Input 2: PM _ _ _ _ _ - _ [C,R,L] _ _ _ _ _ (S2/R2),(T2/S2/R2)

*PM(4, 8 and 9) only

Digital Input Event Conditions
• Dry Contact
- Input inactive when > 100KΩ
- Input active when < 50Ω
• Voltage
- Input inactive when < 2V
- Input active when > 3V

• Six user configurable digital in-

puts/outputs per slot

- Slot E DIO 7-12
PM [4,6,8] _ _ _ _- [C,D] _ _ _ _

_ _

common

Vdc

B

_

D

_

D

_

_

24 Vdc

Z

Dry Contact

Voltage Input
