Page 22: Pm integrated controller, Chapter 2 install and wire
Watlow EZ-ZONE
®
PM Integrated Controller
•
19
•
Chapter 2 Install and Wire

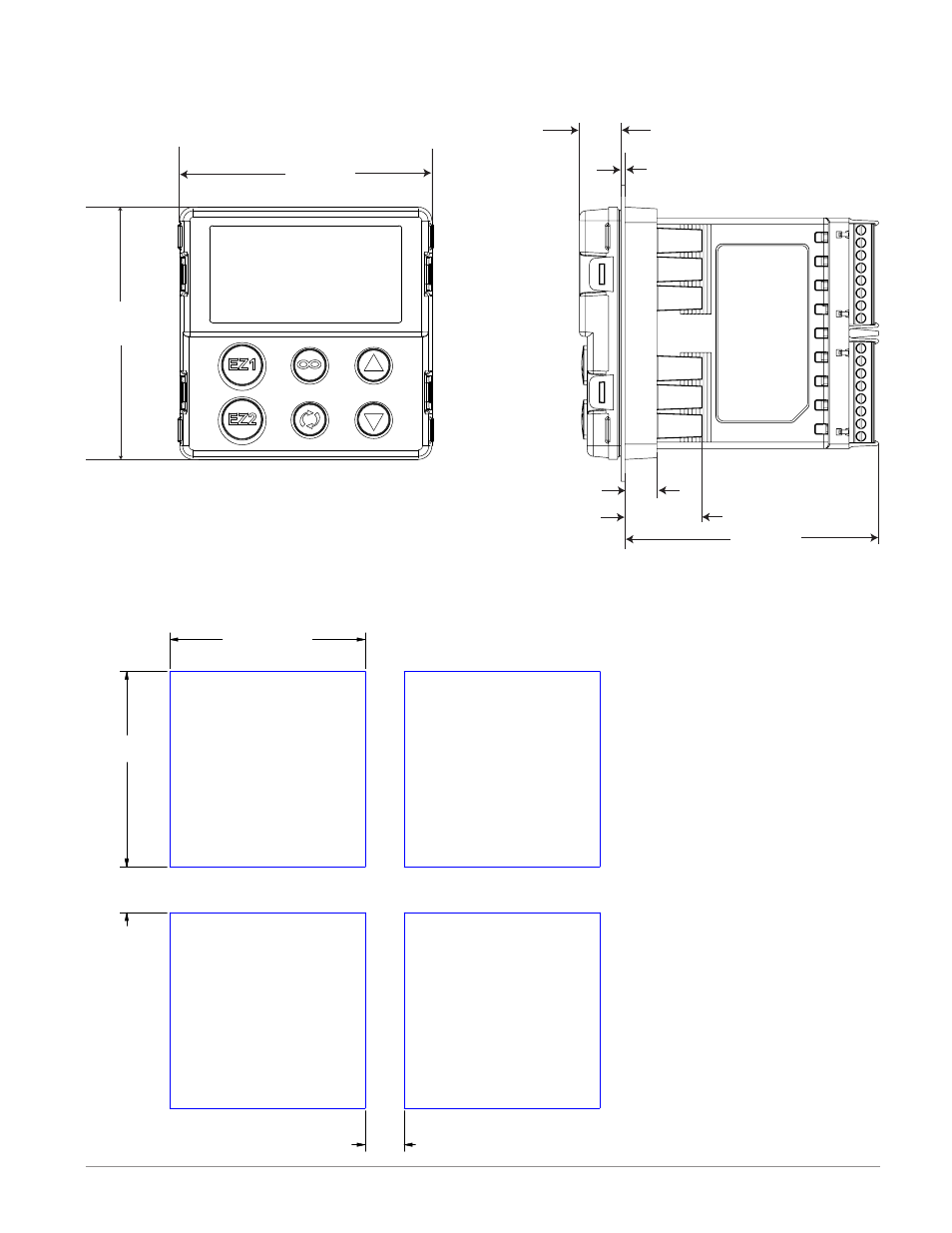

1/4 DIN (PM4) Dimensions
(3.95 in)
100.33 mm
(0.62 in)
15.75 mm
(0.06 in)
1.52 mm
(3.97 in)
100.84 mm
(0.50 in)
12.70 mm
(1.21 in)
30.73 mm
(3.95 in)
100.33 mm
1/4 DIN (PM4) Recommended Panel Spacing
21.6 mm
(0.85 inches)
Minimum
21.6 mm
(0.85 inches)
Panel thickness 1.53 to 9.52 mm
(0.060 to 0.375 inches)
92.0 to 93.0 mm
(3.62 to 3.65 inches)
92.0 to 93.0 mm
(3.62 to 3.65 inches)
