Watlow EZ-ZONE

®

PM Integrated Controller

103

Chapter 7 Profiling Page

Chapter 7: Profiling Page

7

Navigating the Profiling Page

Note:

Some of these menus and parameters may not appear, depending on the controller's options. See model

number information in the Appendix for more information. If there is only one instance of a menu, no sub-

menus will appear.

Profile Setup

First, consider some foundational profile setup features that once configured, will apply to all configured pro-

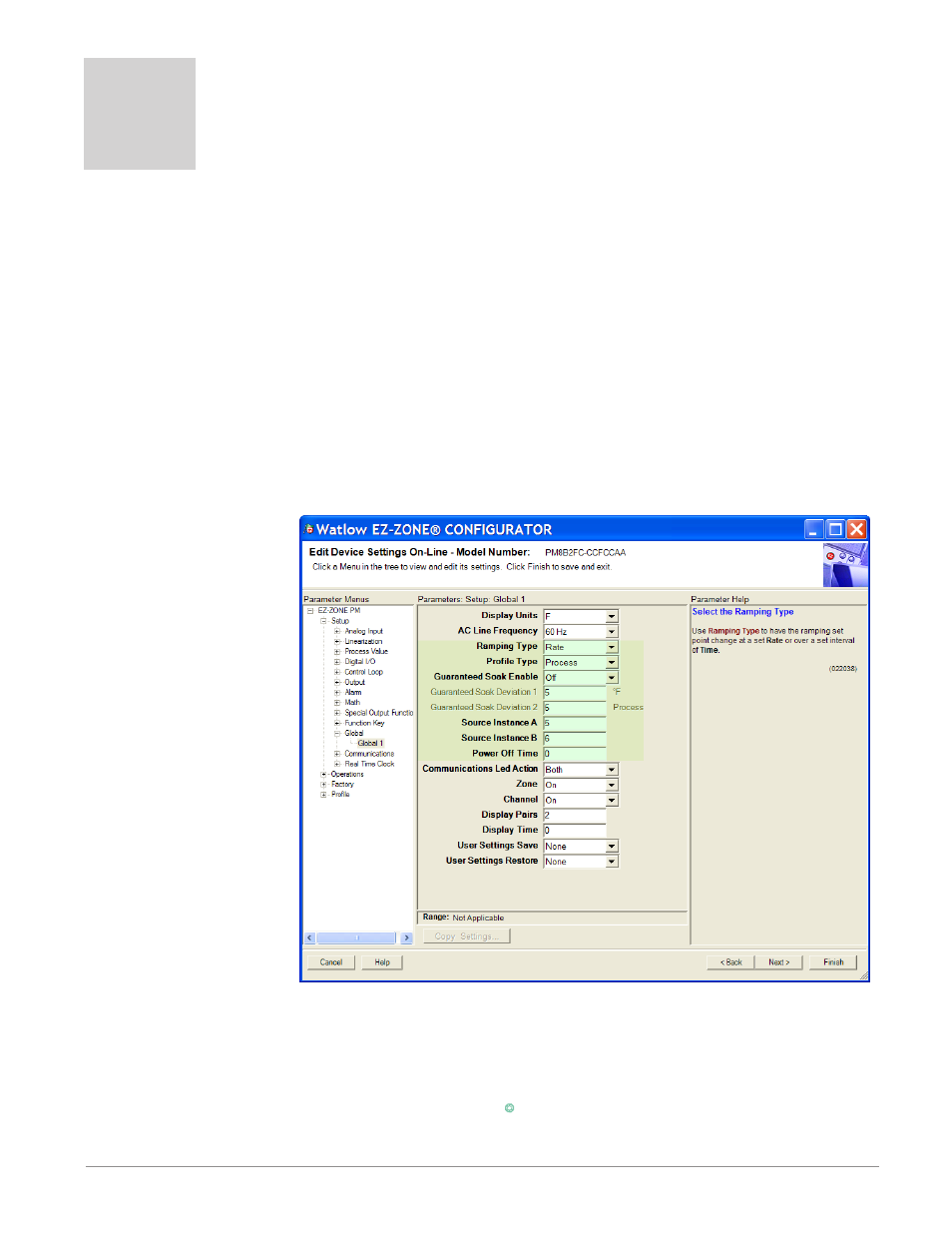

files. The screen shot below (EZ-ZONE Configurator software) graphically shows the settings (shaded green)

that will apply to all profiles; e.g., if Guaranteed Soak is not enabled here this feature will not be available in

any individual profile configuration.
Some of those features that apply to all profiles are listed below with a brief description of their function.
- Ramping Type (Time or Rate) which changes the profile set point based on a set interval of time or set

rate.

- Profile Type (Set Point or Process) determines whether a step (any step changing the set point) of a profile

will begin by using the process value (Process) or the last closed-loop set point (Set Point).

- Guaranteed Soak En-

able, when set to on makes

this feature available in

all profiles. If Guaranteed

Soak Enable is on, use

Guaranteed Soak Deviation

1 to 2 to set the value for

the corresponding loop. Set

the deviation or band above

or below the working set

point where this condition

must be met before the pro-

file can proceed.

Note:

Changes made to profile

parameters in the Profil-

ing Pages will be saved and

will also have an immedi-

ate impact on the running

profile. Some parameters

in the Profile Status Menu

can be changed for the cur-

rently running profile, but

should only be changed by

knowledgeable personnel

and with caution. Chang-

ing parameters via the Profile Status Menu will not change the stored profile but will have an immediate

impact on the profile that is running.

Once these global profile features are configured, the next step will require navigation to the Profiling Page.

Here, each desired ramp and soak profile will be configured.
To navigate to the Profile Page from the front panel, follow the steps below:
1. From the Home Page, press and hold the Advance Key

for approximately five seconds. The profile

prompt [ProF] will appear in the lower display and the profile number (e.g. [``p1]) appears in the upper

display.
