Watlow EZ-ZONE

®

PM Integrated Controller

25

Chapter 2 Install and Wire

Warning:

Óç

Use National Electric (NEC) or other

country-specific standard wiring and

safety practices when wiring and

connecting this controller to a power

source and to electrical sensors or

peripheral devices. Failure to do so

may result in damage to equipment

and property, and/or injury or loss
of life.

Note:

Maximum wire size termination and

torque rating:

• 0.0507 to 3.30 mm

2

(30 to 12

AWG) single-wire termination or

two 1.31 mm

2

(16 AWG)

• 0.8 Nm (7.0 lb.-in.) torque

Note:

Adjacent terminals may be labeled

differently, depending on the model

number.

Note:

To prevent damage to the control-

ler, do not connect wires to unused
terminals.

Note:

Maintain electrical isolation between

analog input 1, digital input-outputs,

switched dc/open collector outputs

and process outputs to prevent
ground loops.

Note:

The control output common termi-

nal and the digital common terminal

are referenced to different voltages

and must remain isolated.

Note:

This Equipment is suitable for use in

CLASS I, DIVISION 2, Groups A, B,

C and D or Non-Hazardous locations
only. Temperature Code T4A

Warning:

ç

Explosion Hazard - Dry contact clo-

sure Digital Inputs shall not be used

in Class I Division 2 Hazardous Loca-

tions unless switch used is approved
for this application.

Warning:

ç

Explosion Hazard – Substitution of

component may impair suitability

for CLASS I, DIVISION 2.

Warning:

ç

Explosion Hazard - Do not discon-

nect while the circuit is live or

unless the area is known to be free

of ignitable concentrations of flam-

mable substances.

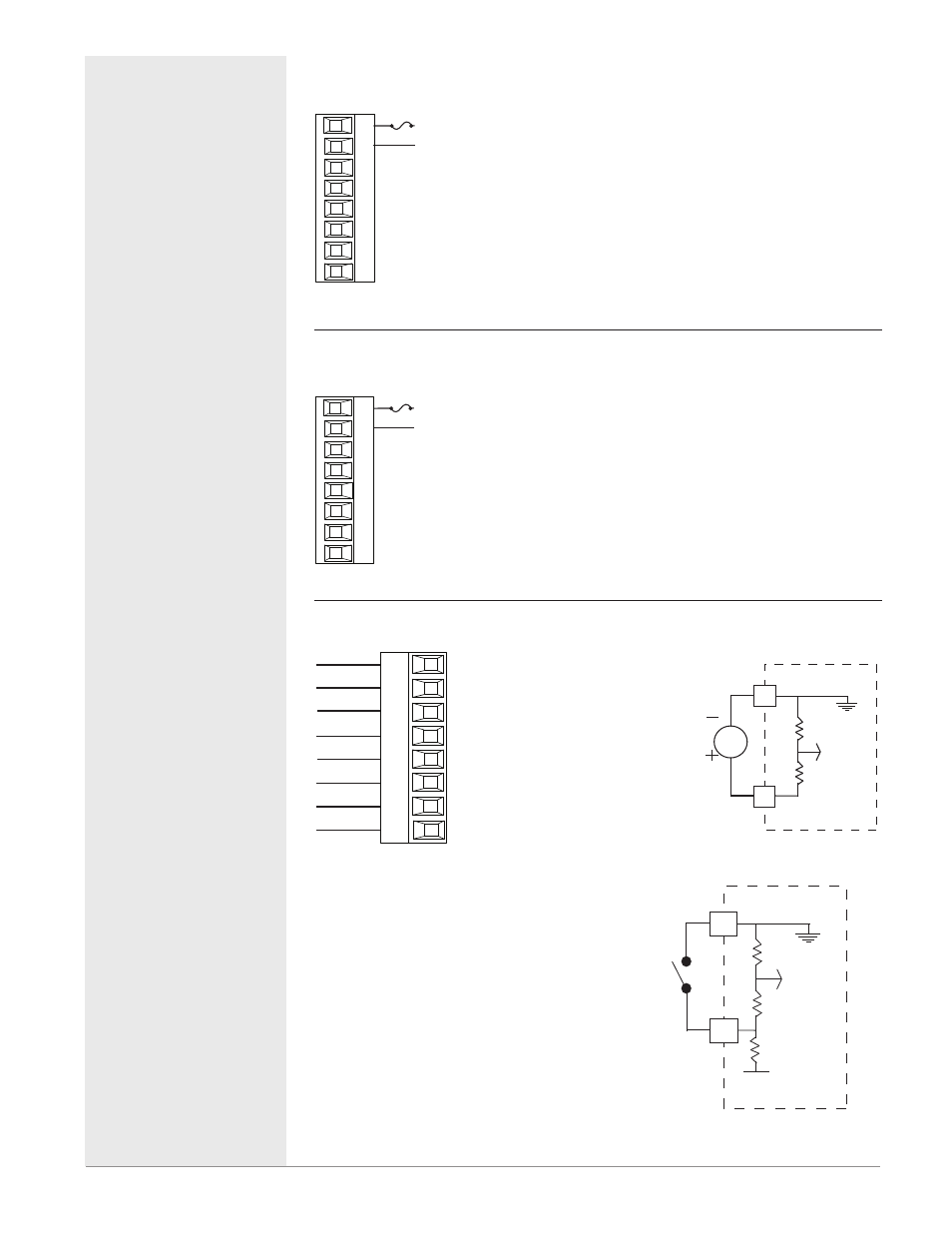

Low Power

Power

power

power

98
99

CF

CD
CE

B5
D6
D5

Slot C

fuse

• Minimum/Maximum Ratings
• 12 to 40VÎ (dc)
• 20 to 28VÅ (ac) Semi Sig F47
• 47 to 63 Hz
• 14VA maximum power consumption (PM4, 8 and 9)
• 10VA maximum power consumption (PM6)
PM_ _ [3,4] _ _ - _ _ _ _ _ _ _

High Power

Power

power

power

98
99

CF

CD
CE

B5
D6
D5

Slot C

fuse

• Minimum/Maximum Ratings
• 85 to 264VÅ (ac)
• 100 to 240VÅ (ac) Semi Sig F47
• 47 to 63 Hz
• 14VA maximum power consumption (PM4, 8 and 9)
• 10VA maximum power consumption (PM6)
PM_ _ [1,2] _ _ - _ _ _ _ _ _ _

Digital Input 5 - 6

Digital Input
• Update rate 10 Hz
• Dry contact or dc voltage

DC Voltage
• Input not to exceed 36V at 3 mA
• Input active when > 3V @ 0.25 mA
• Input inactive when < 2V

Dry Contact
• Input inactive when > 500 Ω
• Input active when < 100 Ω
• maximum short circuit 13 mA
PM _ _ [2,4] _ _-_ _ _ _ _ _ _

Voltage Input

common

Vdc

D

_

B

_

Dry Contact

common

24 Vdc

B

_

_

D

98
99
CF
CD
CE
B5
D6
D5

Slot C

DC Input

common

DC Input
