Receiving a Remote Set Point

The remote set point feature allows the controller to use a thermocouple, RTD, 1 k potentiometer or pro-

cess signal at input 2 to establish the set point, which allows its set point to be manipulated by an external

source. A common application would use one ramping controller with a set-point retransmit output to ramp

multiple controllers using the remote set point. Or you could use an analog output from a PLC to send set

point values to an EZ-ZONE PM.

The controller must have two process inputs to use the remote set point feature.
You may select between local and remote set points at the front panel, with an event input, from a remote

computer using the communications feature or from an external switch using an event input. Make sure all

input and output impedances are compatible.
1. Switch to the remote set point with Remote Enable [`r;En] (Operations Page, Loop Menu). Select whether

the remote set point controls an open- or closed-loop set point with Remote Set Point Type [`r;ty].

2. Assign the function of switching to a remote set point to a digital input with Digital Input Function

[``Fn]

(Setup Page, Digital Input Menu).

3. Assign the function of switching to a remote set point to the EZ Key with Digital Input Function [``Fn]

(Setup Page, Function Key Menu).

Ten Point Linearization

The linearization function allows a user to re-linearize a value read from an analog input. There are 10 data

points used to compensate for differences between the

sensor value read (input point) and the desired value

(output point). Multiple data points enable compensation

for non-linear differences between the sensor readings

and target process values over the thermal or process

system operating range. Sensor reading differences can

be caused by sensor placement, tolerances, an inaccu-

rate sensor or lead resistance.
The user specifies the unit of measurement and then

each data point by entering an input point value and a

corresponding output point value. Each data point must

be incrementally higher than the previous point. The

linerization function will interpolate data points linear-

ly in between specified data points.

Note:

Output Point 1 will be the minimum value that can be displayed, and Output Point 10 will be the maximum

value that can be displayed. Consider setting Output Point 1 to the minimum operating range, and Output

Point 10 to the maximum operating range; for that sensor type.

Outputs

Duplex

Certain systems require that a single process output control both heating and cooling outputs. An EZ-ZONE

®

PM controller with a process output can function as two separate outputs.

With a 4 to 20mA output the heating output will operate from 12 to 20mA (0 to +100 percent) and the cool-

ing output will operate from 12 to 4mA (0 to -100 percent).

In some cases this type of output is required by the device that the EZ-ZONE PM controls, such as a

three-way valve that opens one way with a 12 to 20mA signal and opens the other way with a 4 to 12mA sig-

nal. This feature reduces the overall system cost by using a single output to act as two outputs.

Outputs 1 and 3 can be ordered as process outputs. Select duplex [dUPL] as the Output Function [``Fn]

(Setup Page, Output Menu). Set the output to volts [uoLt] or milliamps [`MA] with Output Type [`o;ty].

Set the range of the process output with Scale Low [`S;Lo] and Scale High [`S;hi].

2

3

4

5 6

7

8

9

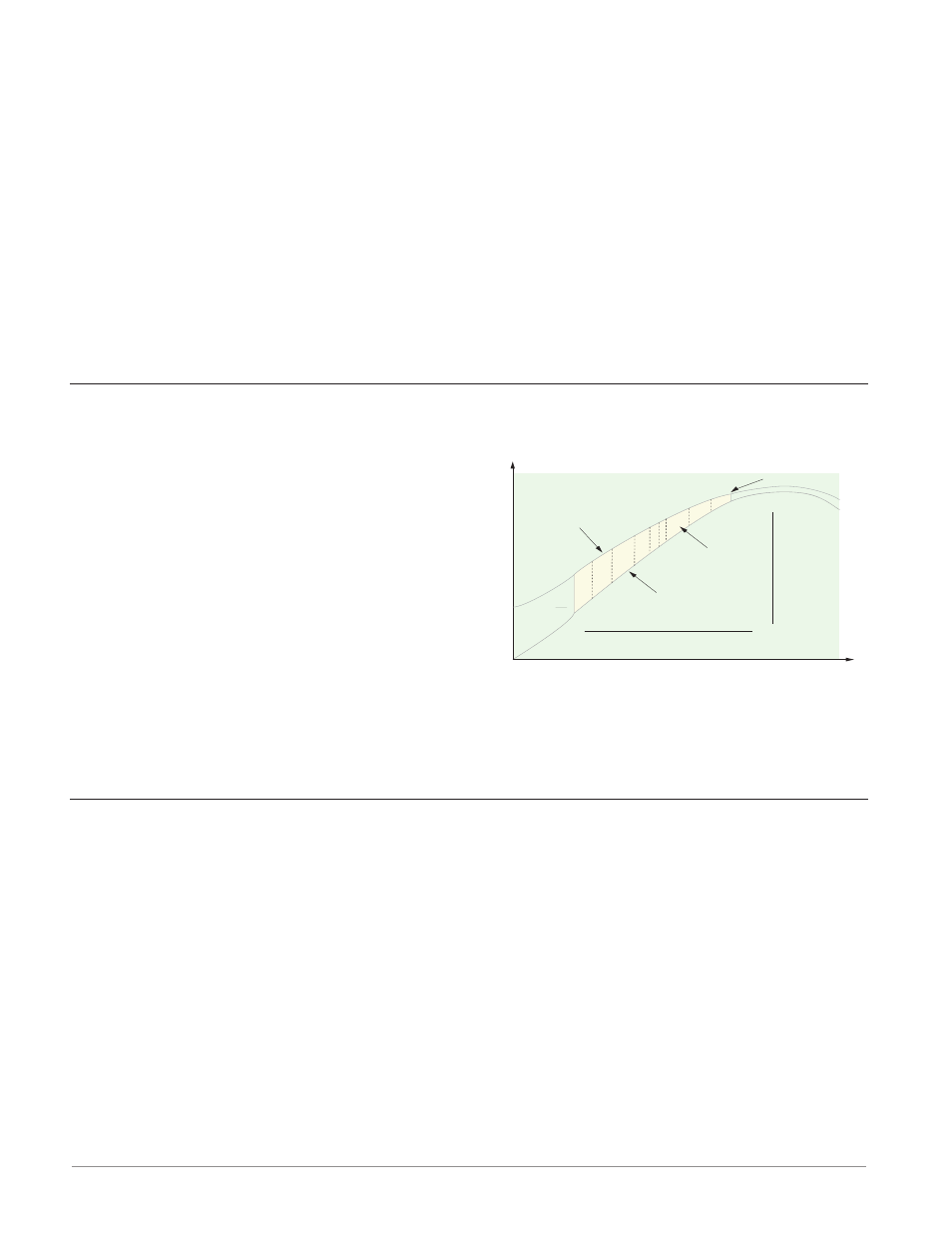

Reading from Sensor

without Linearization

(Actual Value)

Input Point 1

Output Point 1

Input Point 10

Output Point 10

Offset Zone

Reading from Sensor

with Linearization

(Displayed Value)

No Offset

T

emperature

Time
