Example 3: Square Root

Requirements:
One analog input and the enhanced software option are required and at least one output adjusts the controlled

part of the process.
Overview:
Calculates the square root value of the sensor connected to Analog Input 1.
When function is set for Square Root, the PV Function output equals square root value of Source A. Control loop 1

will control Analog Input 1 to Closed Loop Set Point 1.

Example 4: Ratio

Requirements:

Two analog inputs and the enhanced software option are required and at least one output adjusts the controlled

part of the process.

Overview:

The Ratio feature allows control of one process as a ratio of another process. This is especially useful in applica-

tions that mix two materials, whether steam, paint or food ingredients. Analog Input 1 monitors the controlled

part of the process. Analog Input 2 of the controller measures the part of the process that is either uncontrolled or

controlled by another device. The part of the process controlled will be maintained at a level equal to the quantity

measured at input 2 multiplied by the ratio term set by the user as Closed Set Point 1. When function is set for

Ratio, the PV Function output equals Source A as a ratio to Source B. Control loop 1 will control Analog Input 1 to

Closed Loop Set Point 1.
Applications of ratio control:
• Blending two or more flows to produce a mixture with specified composition.
• Blending two or more flows to produce a mixture with specified physical properties.
• Maintaining correct air and fuel mixture to combustion.

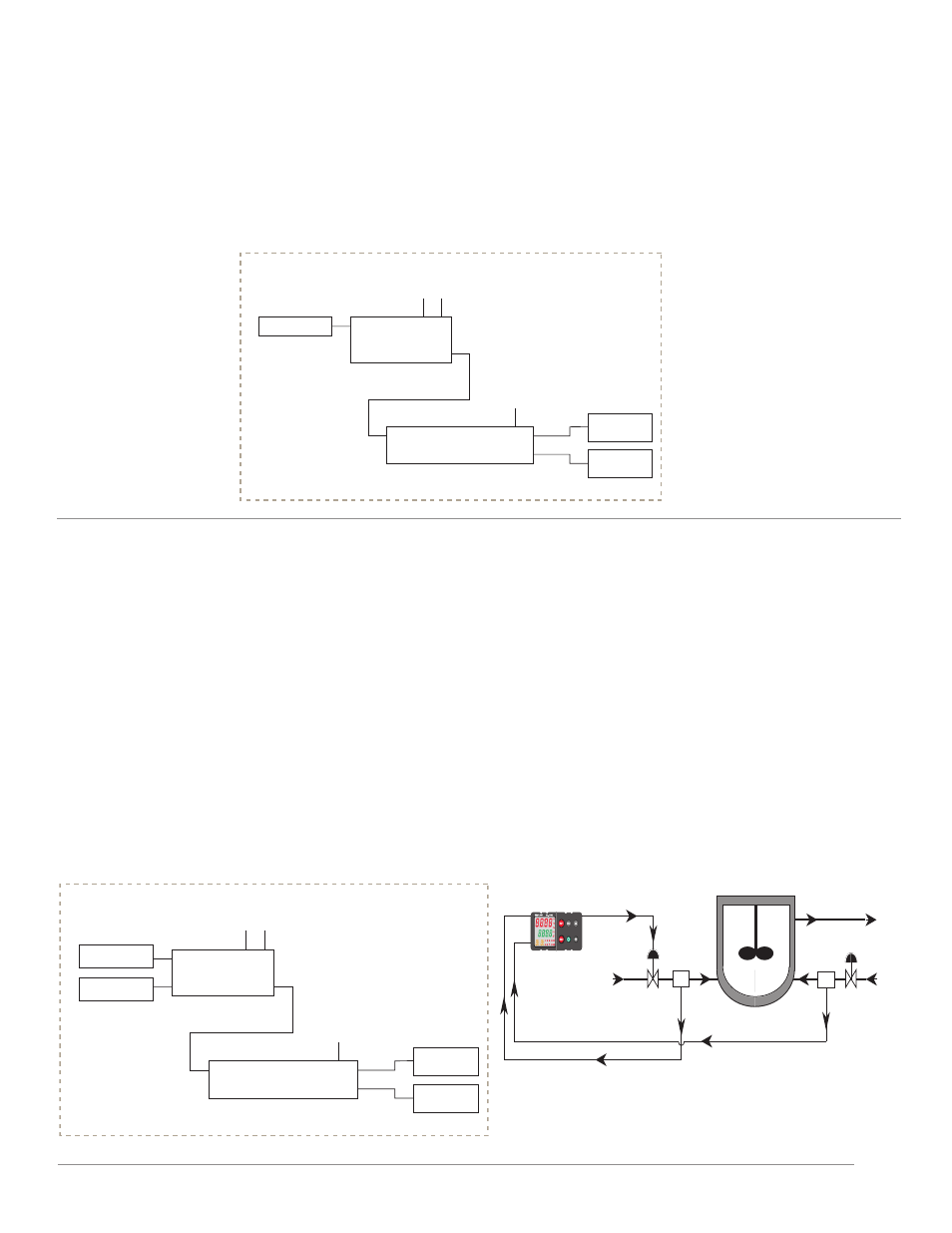

Square Root

Closed Loop

Set P

oint

1

Function

Filt

er

Source A

Source A

Heat Power

Cool Power

0 to 100%

0 to 100%

Output

Heat

Cool

Output n

Output n

Analog Input 1

Control Loop 1

PV Function

Ratio

Closed Loop

Set P

oint

1

Function

Filt

er

Source A

Source A

Source B

Heat Power

Cool Power

0 to 100%

0 to 100%

Output

Heat

Cool

Output n

Output n

Analog Input 1

Analog Input 2

Control Loop 1

PV Function

controlled

uncontrolled

controlled flow
of pigment

flow

transmitter

motorized
valve

Mixing Tank

flow

transmitter

mixed paint

uncontrolled
flow of
unmixed paint

®

Input 2

Input 1

Output 1
