Watlow ez-zone, Pm integrated controller, Chapter 2 install and wire – Watlow EZ-ZONE PM Integrated Controller User Manual

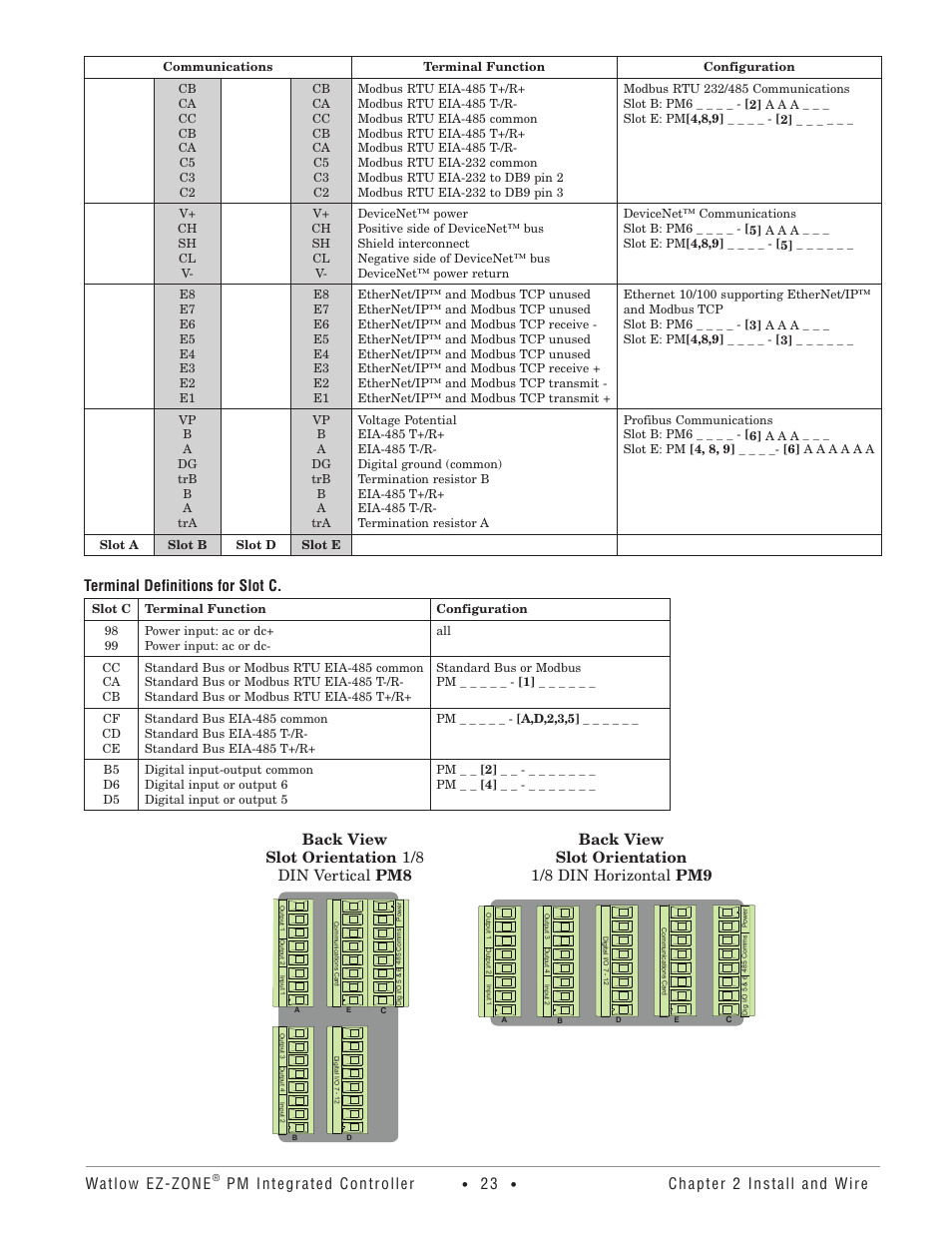

Page 26: Terminal definitions for slot c, Back view slot orientation 1/8 din horizontal pm9, Back view slot orientation 1/8 din vertical pm8
