ATtiny261/461/861

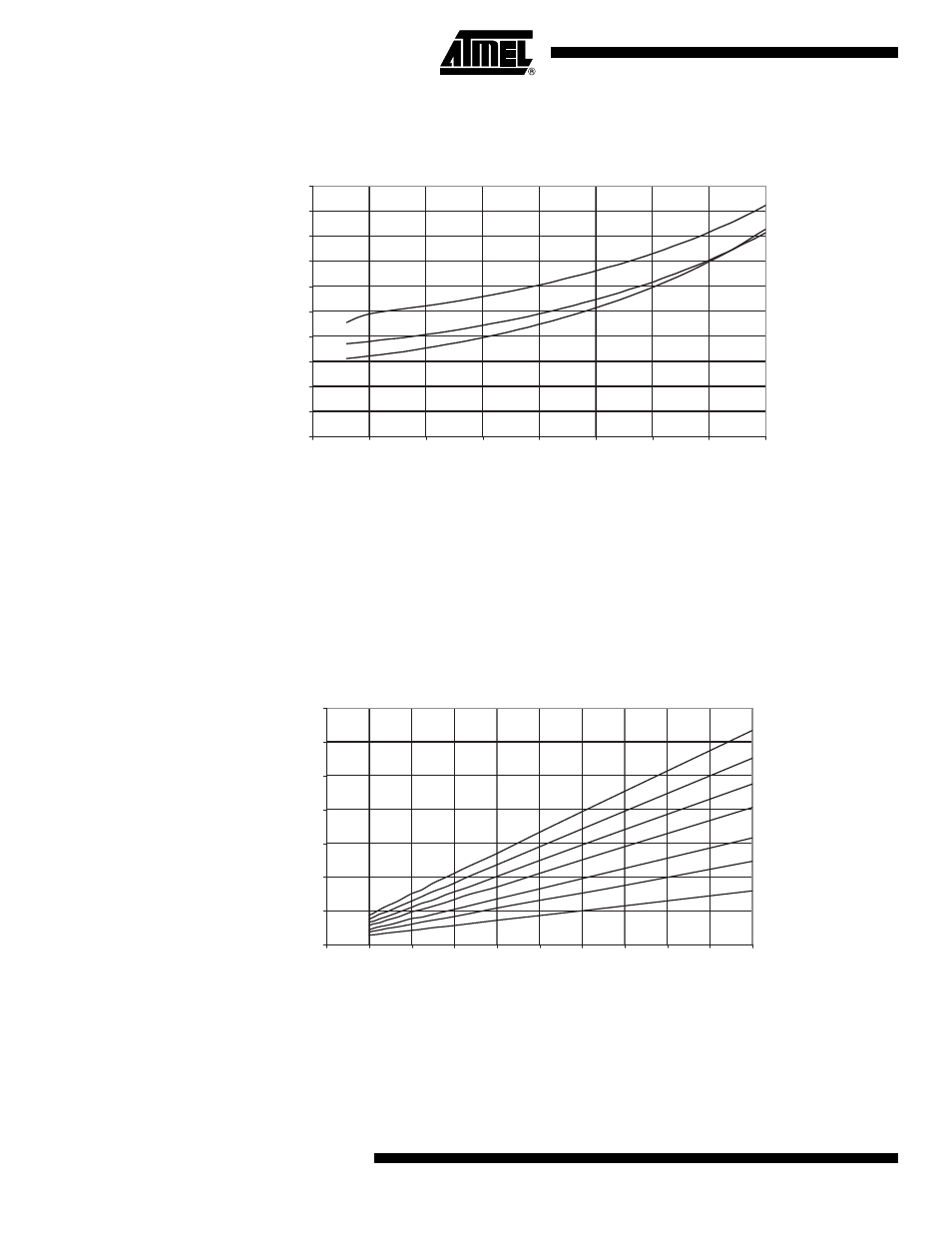

Figure 24-41. Watchdog Timer Current vs. V
CC
24.11 Current Consumption in Reset and Reset Pulsewidth
Figure 24-42. Reset Supply Current vs. Low Frequency (0.1 - 1.0 MHz, Excluding Current
Through the Reset Pull-up)
WATCHDOG TIMER CURRENT vs. V
CC
85 ˚C
25 ˚C
-40 ˚C
0
1
2
3
4
5
6
7
8
9
10
1,5 2 2,5 3 3,5 4 4,5 5 5,5
V
CC
(V)
I CC
(uA)
RESET SUPPLY CURRENT vs. Low Frequency
0.1 - 1.0 MHz, EXCLUDING CURRENT THROUGH THE RESET PULL-UP
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
2.7 V
1.8 V
0
0,02
0,04
0,06
0,08
0,1
0,12
0,14
0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1
Frequency (MHz)
I CC
(mA)
