24.8 BOD Threshold and Analog Comparator Offset

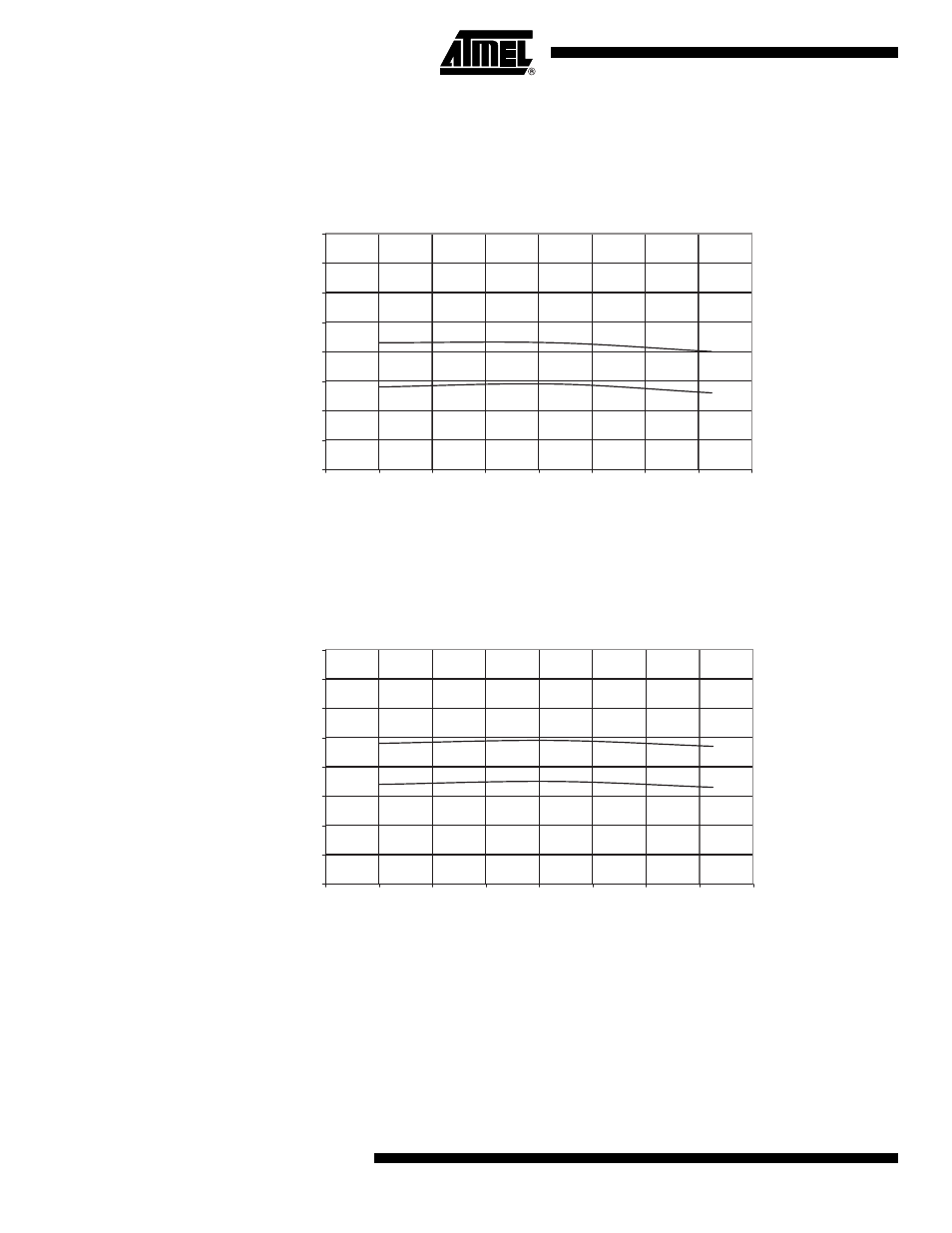

Figure 24-29. BOD Threshold vs. Temperature (BOD Level is 4.3V)
Figure 24-30. BOD Threshold vs. Temperature (BOD Level is 2.7V)
BOD THRESHOLDS vs. TEMPERATURE
BODLEVEL is 4.3V
Rising V
CC
Falling V
CC
4,1
4,15
4,2
4,25
4,3
4,35
4,4
4,45
4,5
-60 -40 -20 0 20 40 60 80 100
Temperature (C)
Threshold (V)
BOD THRESHOLDS vs. TEMPERATURE
BODLEVEL is 2.7V
Falling V
CC
Rising V
CC
2,5
2,55
2,6
2,65
2,7
2,75
2,8
2,85
2,9
-60 -40 -20 0 20 40 60 80 100
Temperature (C)
Threshold (V)
