ATmega32/64/M1/C1
26.2 Idle Supply Current

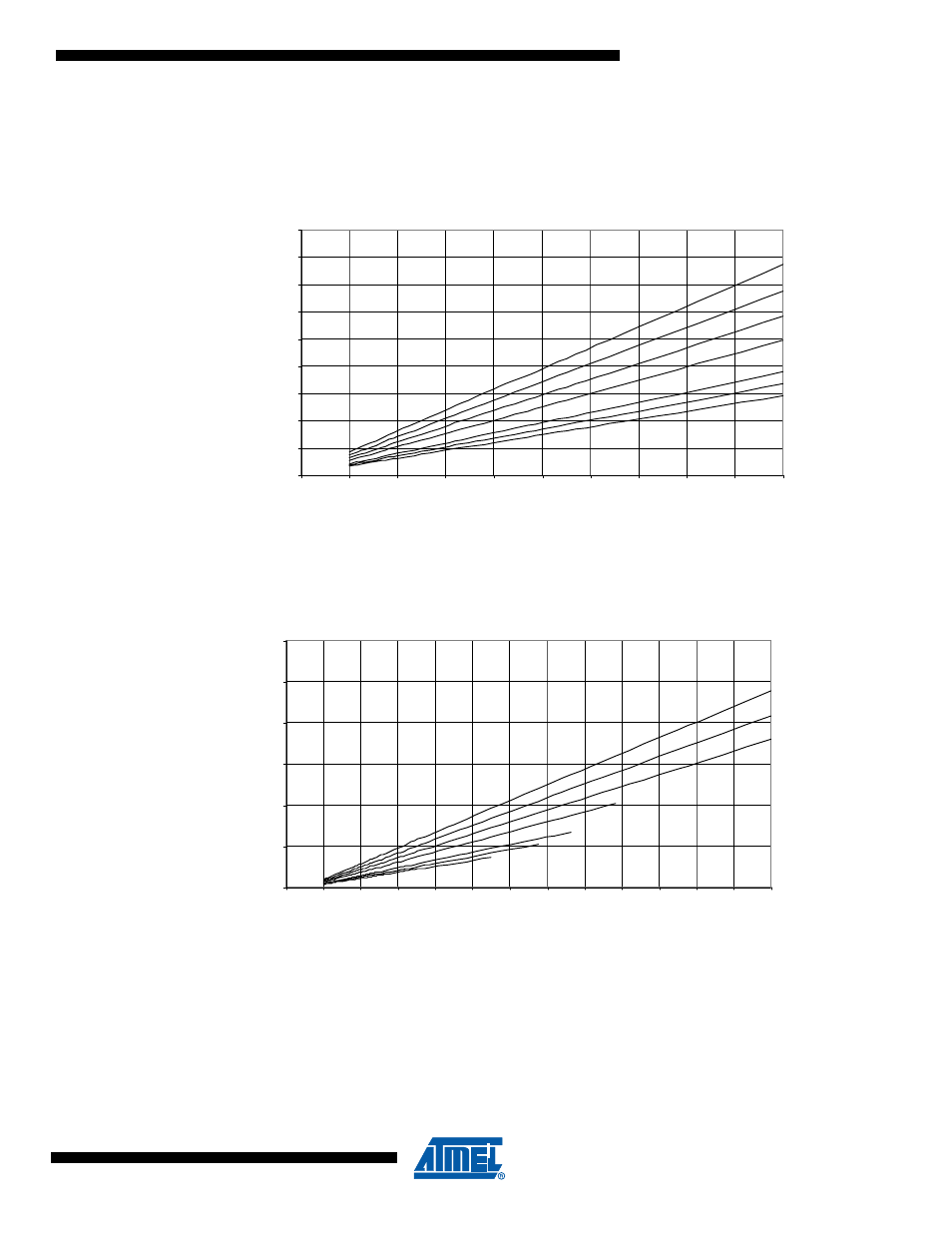

Figure 26-5. Idle Supply Current vs. Frequency (0.1 - 1.0 MHz)
Figure 26-6. Idle Supply Current vs. Frequency (1 - 24 MHz)
IDLE SUPPLY CURRENT vs. LOW FREQUENCY
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
3.0 V
2.7 V
0
0,05
0,1
0,15
0,2
0,25
0,3
0,35
0,4
0,45
0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1
Frequency (MHz)
I CC
(mA
)
IDLE SUPPLY CURRENT vs. FREQUENCY
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
3.0 V
2.7 V
0
2
4
6
8
10
12
-1 1 3 5 7 9 11 13 15 17 19 21 23 25
Frequency (MHz)
I CC
(mA
)
