ATmega32/64/M1/C1
26.1 Active Supply Current

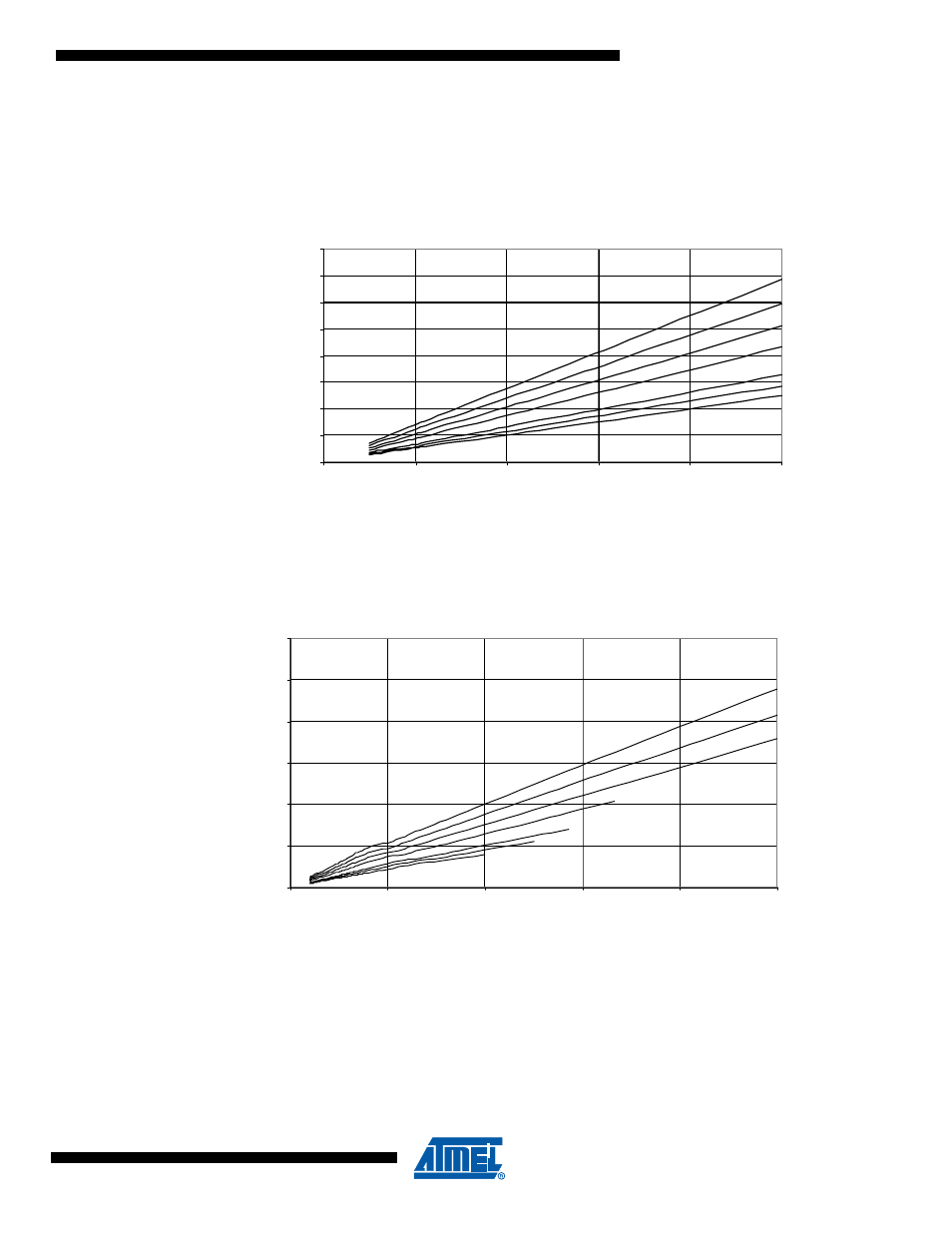

Figure 26-1. Active Supply Current vs. Frequency (0.1 - 1.0 MHz)
Figure 26-2. Active Supply Current vs. Frequency (1 - 24 MHz)
ACTIVE SUPPLY CURRENT vs. LOW FREQUENCY
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
3.0 V
2.7 V
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
0 0.2 0.4 0.6 0.8 1
Frequency (MHz)
I CC
(m
A
)
ACTIVE SUPPLY CURRENT vs. FREQUENCY
5.5 V
5.0 V
4.5 V
4.0 V
3.3 V
3.0 V
2.7 V
0
5
10
15
20
25
30
0 5 10 15 20 25
Frequency (MHz)
I CC
(mA
)
