ZyWALL 5/35/70 Series User’s Guide
Chapter 2 Introducing the Web Configurator 87

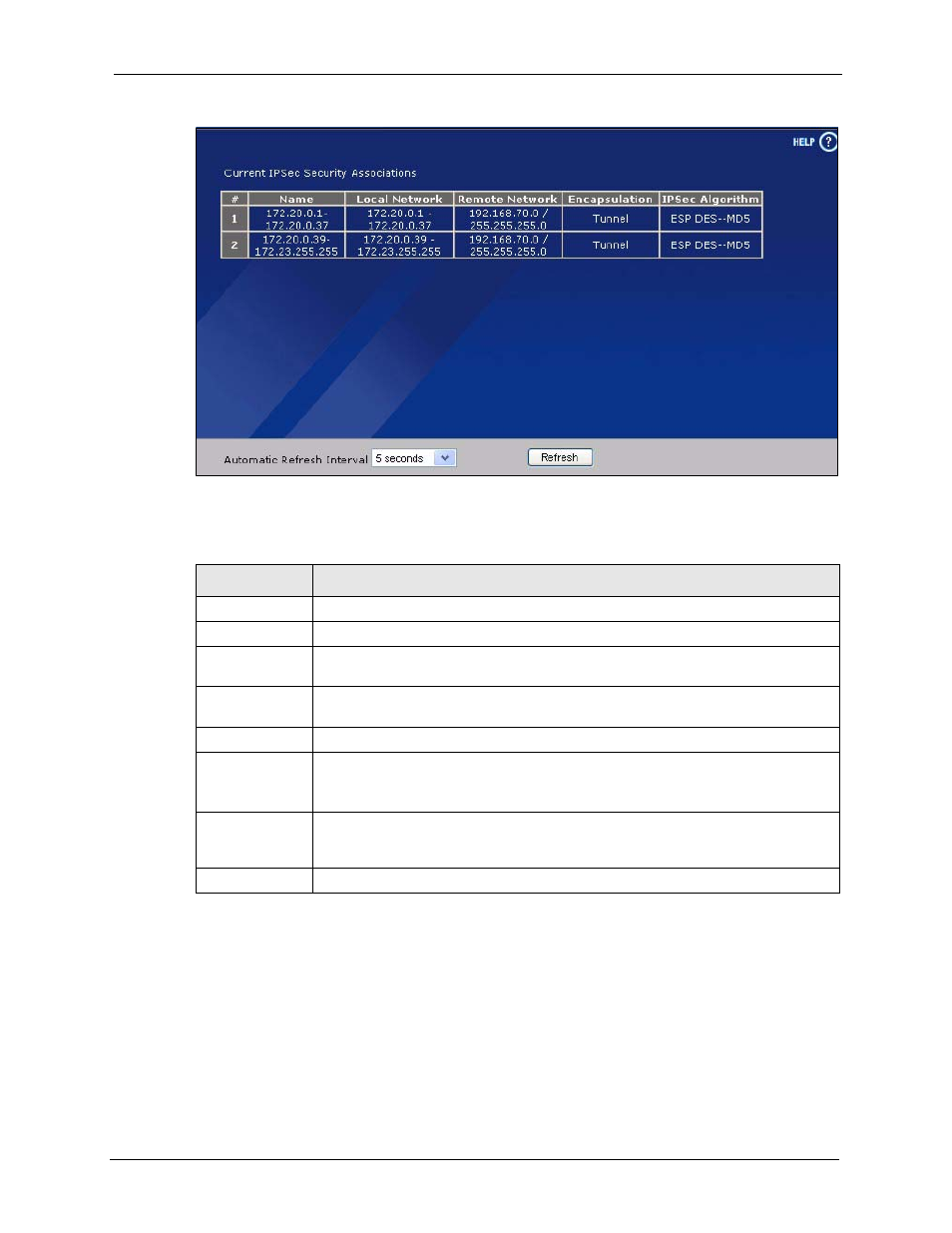

Figure 15 HOME > VPN Status
The following table describes the labels in this screen.
2.4.10 Bandwidth Monitor
Click Bandwidth in the HOME screen to display the bandwidth monitor. This screen displays
the device’s bandwidth usage and allotments.
Table 11 HOME > VPN Status
LABEL DESCRIPTION
# This is the security association index number.
Name This field displays the identification name for this VPN policy.
Local Network This field displays the IP address of the computer using the VPN IPSec feature of
your ZyWALL.
Remote Network This field displays IP address (in a range) of computers on the remote network
behind the remote IPSec router.
Encapsulation This field displays Tunnel or Transport mode.
IPSec Algorithm This field displays the security protocols used for an SA.
Both AH and ESP increase ZyWALL processing requirements and communications
latency (delay).
Automatic
Refresh Interval Select a number of seconds or None from the drop-down list box to update all
screen statistics automatically at the end of every time interval or to not update the
screen statistics.
Refresh Click this button to update the screen’s statistics immediately.
