ZyWALL 5/35/70 Series User’s Guide

70

Chapter 2 Introducing the Web Configurator

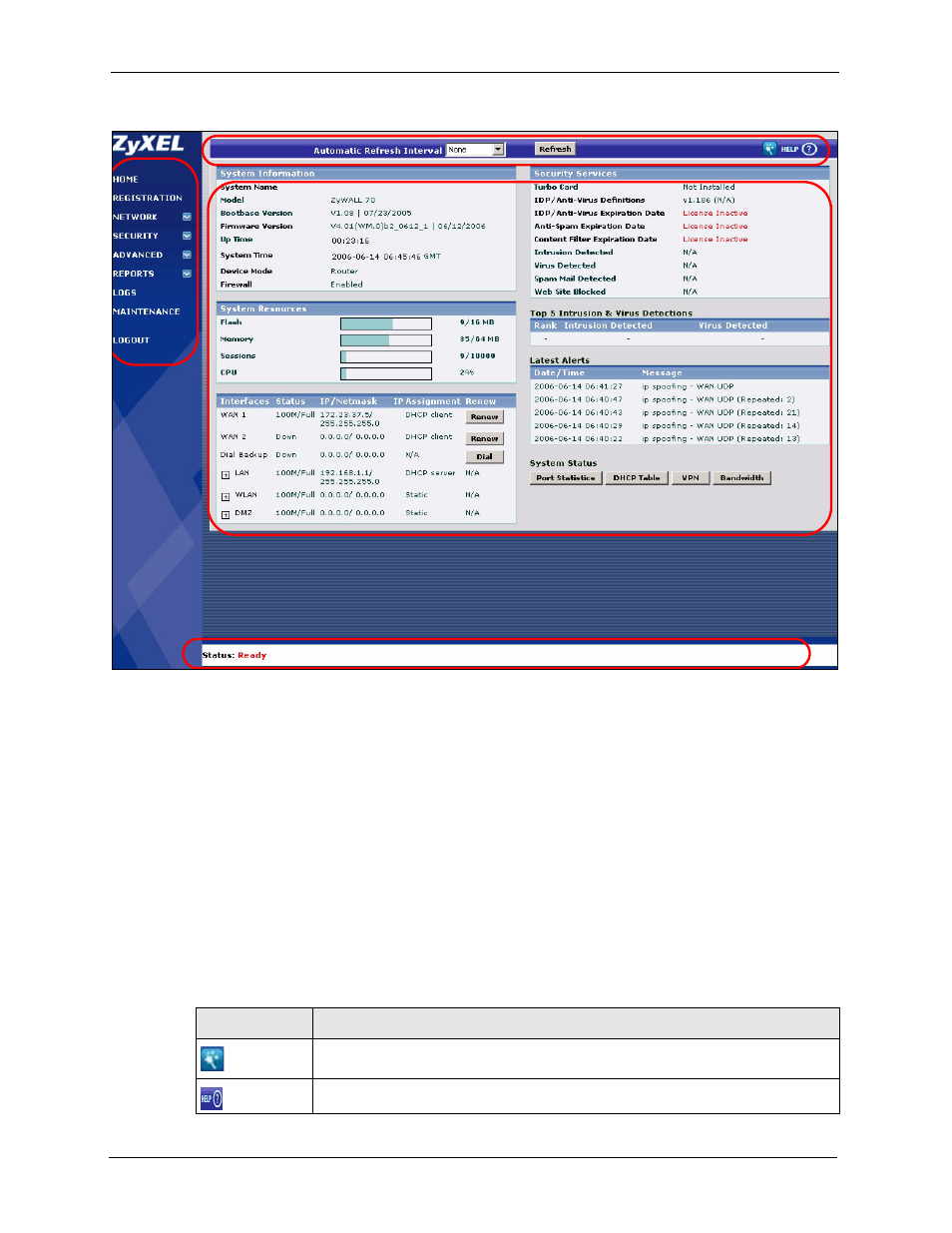

Figure 9 HOME Screen

As illustrated above, the main screen is divided into these parts:

• A - title bar

• B - navigation panel

• C - main window

• D - status bar

2.4.1 Title Bar

The title bar provides some icons in the upper right corner.

The icons provide the following functions.

C

D

B

A

Table 3 Title Bar: Web Configurator Icons

ICON

DESCRIPTION

Wizards: Click this icon to open one of the web configurator wizards. See

Chapter 3

on page 89

for more information.

Help: Click this icon to open the help page for the current screen.
