ZyWALL 5/35/70 Series User’s Guide
Chapter 11 Firewall 225

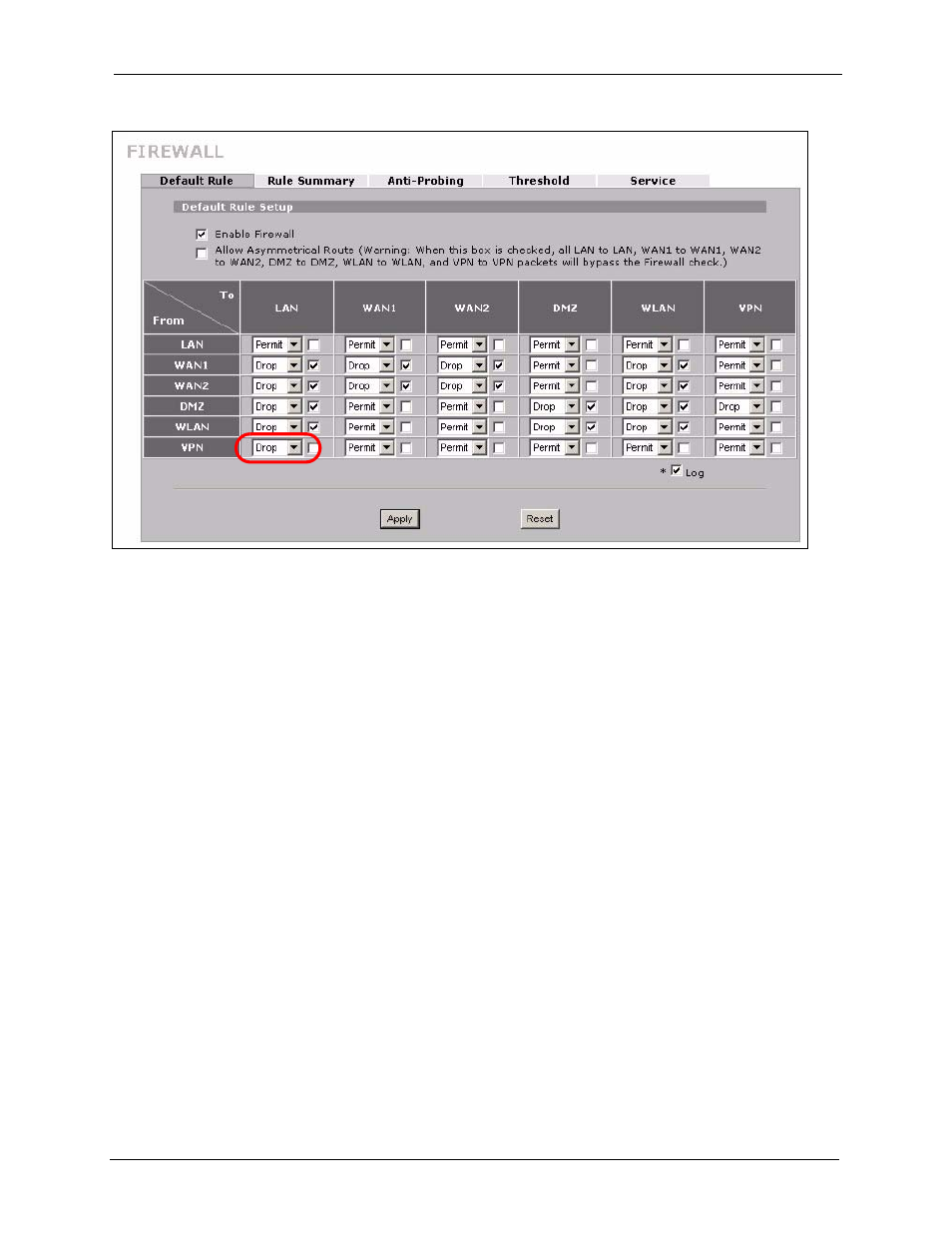

Figure 109 Block VPN to LAN Traffic by Default Example
11.3.3 From VPN To VPN Packet Direction
From VPN To VPN firewall rules apply to traffic that comes in through one of the
ZyWALL’s VPN tunnels and terminates at the ZyWALL (like for remote management) or
goes out through another of the ZyWALL’s VPN tunnels (this is called hub-and-spoke VPN,
see
Section 18.16 on page 358 for details). The ZyWALL decrypts the traffic and applies the
firewall rules before re-encrypting it or allowing the traffic to terminate at the ZyWALL.
In the following example, the From VPN To VPN default firewall rule silently blocks the
traffic that the ZyWALL receives from any VPN tunnel (either A or B) that is destined for the
other VPN tunnel or the ZyWALL itself. VPN traffic destined for the DMZ is allowed
through.
