ZyWALL 5/35/70 Series User’s Guide
102 Chapter 3 Wizard Setup

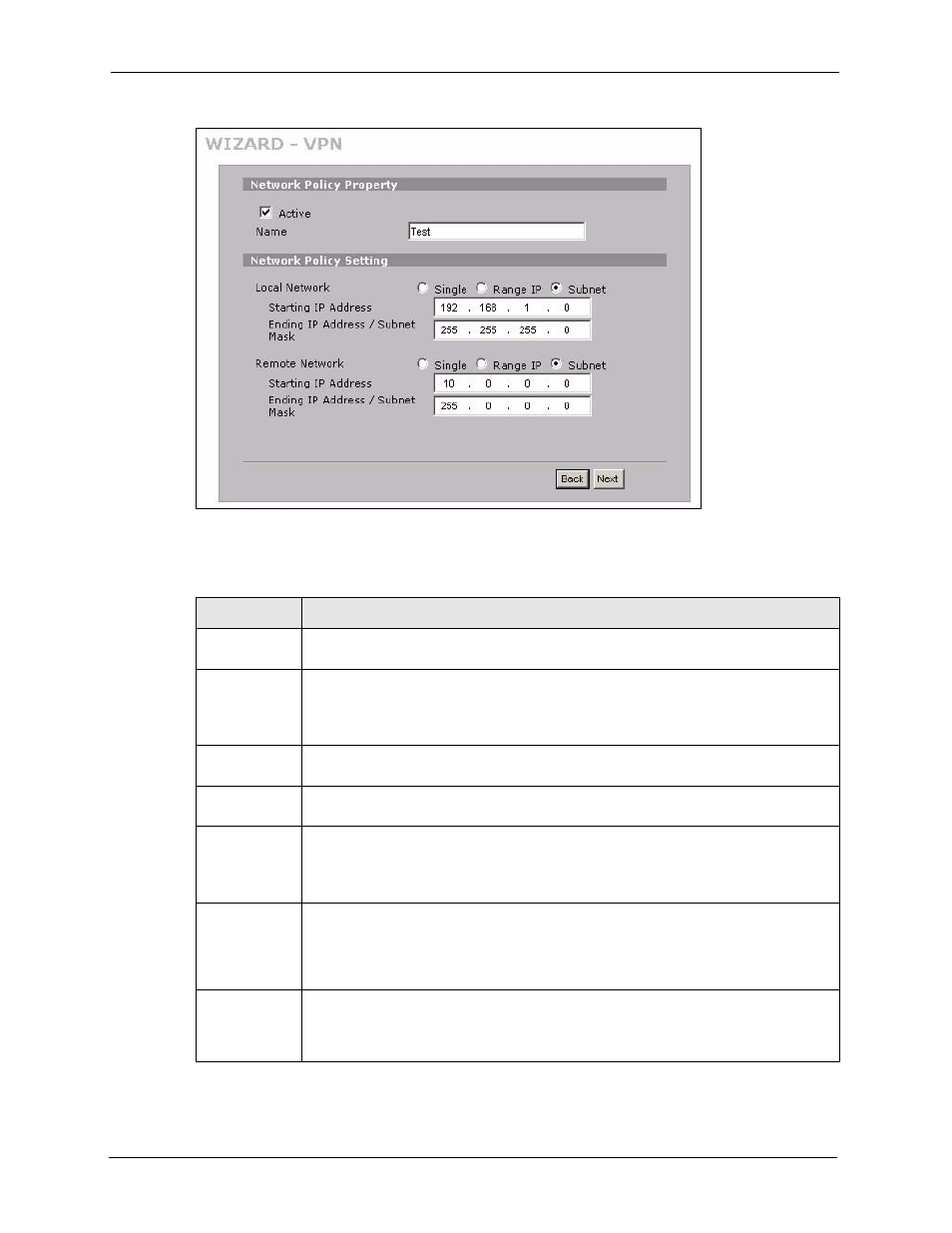

Figure 30 VPN Wizard: Network Setting
The following table describes the labels in this screen.
Table 17 VPN Wizard: Network Setting
LABEL DESCRIPTION
Network Policy
Property
Active If the Active check box is selected, packets for the tunnel trigger the ZyWALL to build
the tunnel.
Clear the Active check box to turn the network policy off. The ZyWALL does not apply
the policy. Packets for the tunnel do not trigger the tunnel.
Name Type up to 32 characters to identify this VPN network policy. You may use any
character, including spaces, but the ZyWALL drops trailing spaces.
Network Policy
Setting
Local Network Local IP addresses must be static and correspond to the remote IPSec router's
configured remote IP addresses.
Select Single for a single IP address. Select Range IP for a specific range of IP
addresses. Select Subnet to specify IP addresses on a network by their subnet mask.
Starting IP
Address When the Local Network field is configured to Single, enter a (static) IP address on
the LAN behind your ZyWALL. When the Local Network field is configured to Range
IP, enter the beginning (static) IP address, in a range of computers on the LAN behind
your ZyWALL. When the Local Network field is configured to Subnet, this is a (static)
IP address on the LAN behind your ZyWALL.
Ending IP
Address/
Subnet Mask When the Local Network field is configured to Single, this field is N/A. When the
Local Network field is configured to Range IP, enter the end (static) IP address, in a
range of computers on the LAN behind your ZyWALL. When the Local Network field
is configured to Subnet, this is a subnet mask on the LAN behind your ZyWALL.
