ZyWALL 5/35/70 Series User’s Guide
246 Chapter 11 Firewall

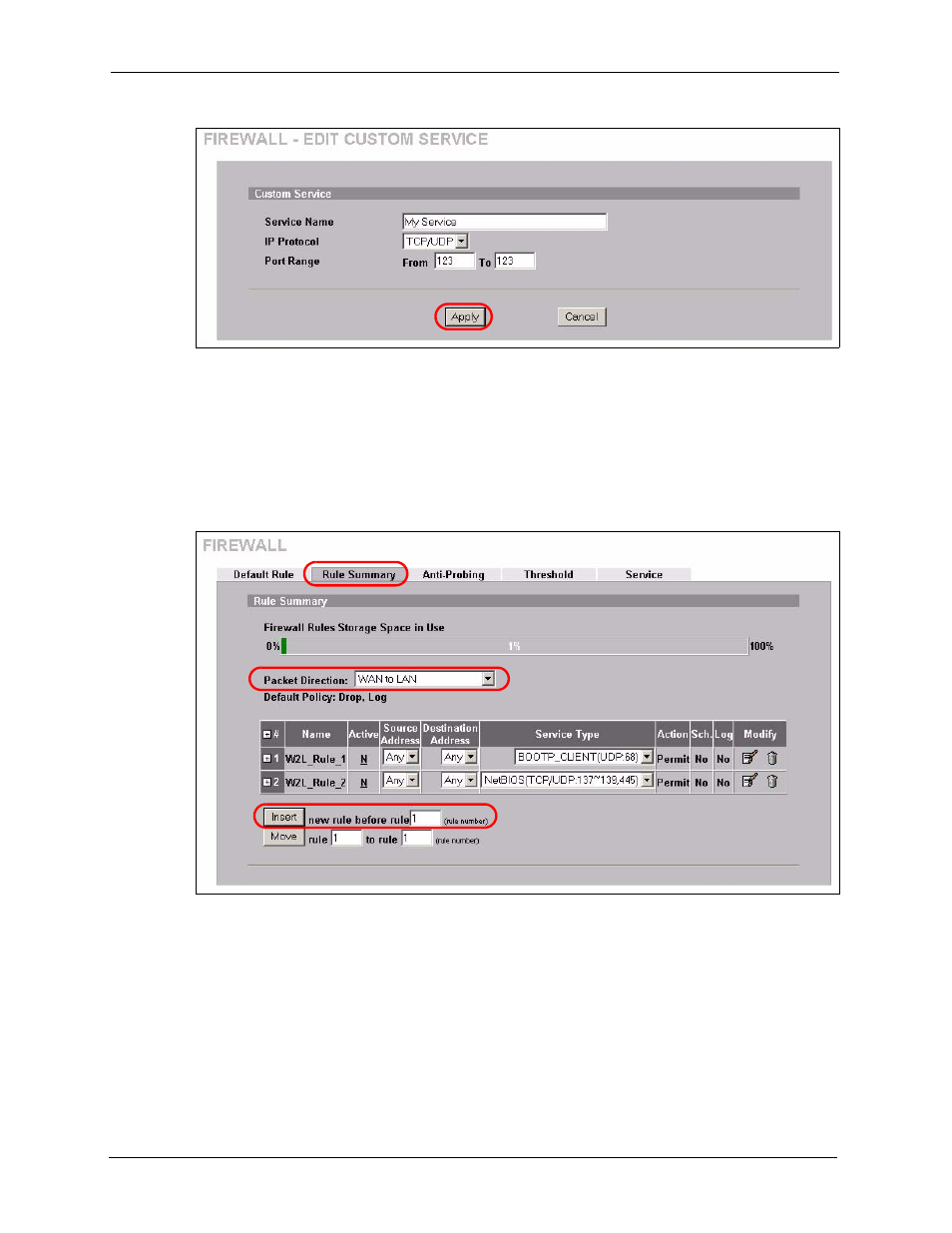

Figure 125 My Service Firewall Rule Example: Edit Custom Service
3 Click Rule Summary. Select WAN to LAN from the Packet Direction drop-down list
box.
4 In the Rule Summary screen, type the index number for where you want to put the rule.
For example, if you type 6, your new rule becomes number 6 and the previous rule 6 (if
there is one) becomes rule 7.
5 Click Insert to display the firewall rule configuration screen.
Figure 126 My Service Firewall Rule Example: Rule Summary
6 Enter the name of the firewall rule.
7 Select Any in the Destination Address(es) box and then click Delete.
8 Configure the destination address fields as follows and click Add.
