ZyWALL 5/35/70 Series User’s Guide
432 Chapter 24 Bandwidth Management

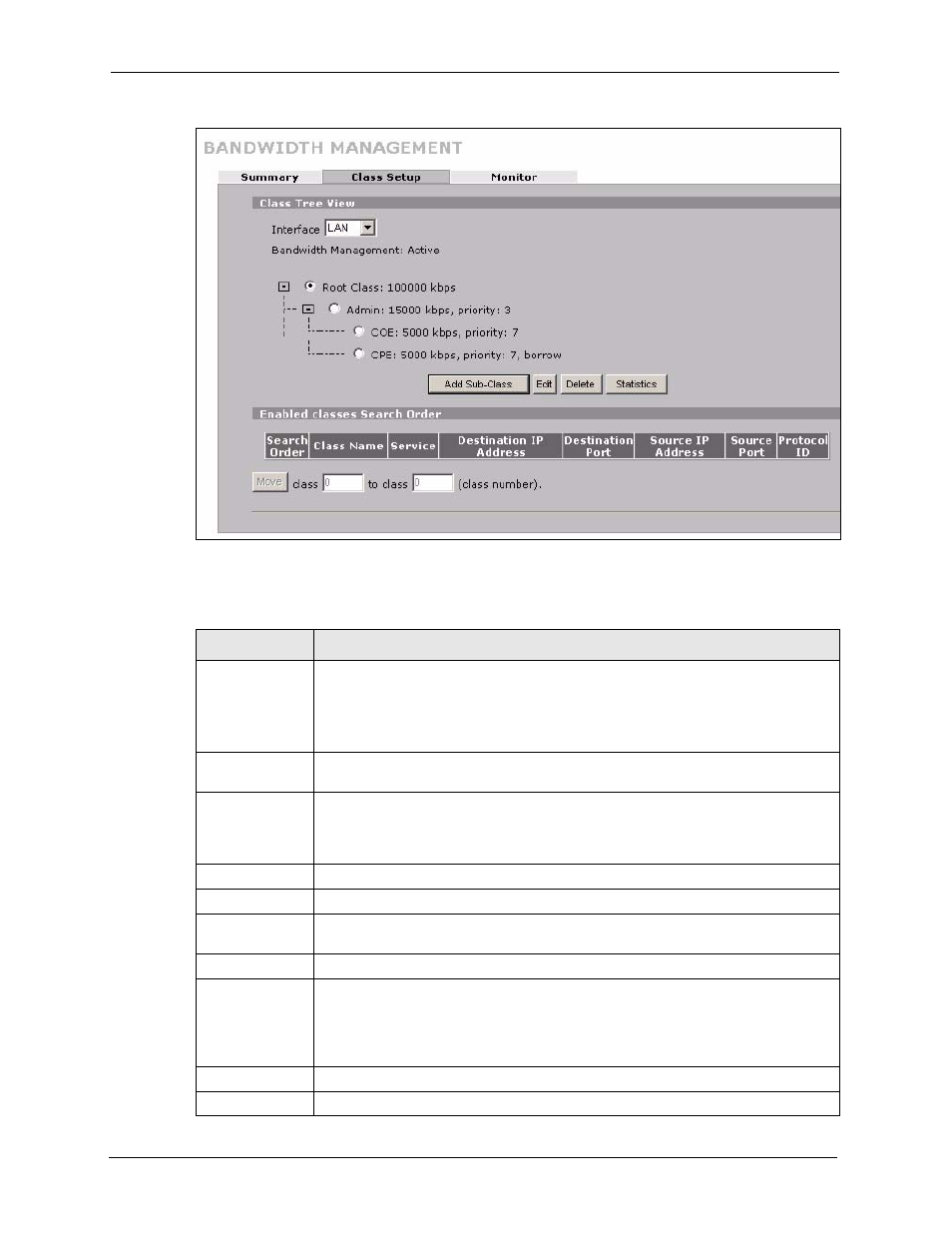

Figure 228 ADVANCED > BW MGMT > Class Setup
The following table describes the labels in this screen.
Table 139 ADVANCED > BW MGMT > Class Setup
LABEL DESCRIPTION
Interface Select an interface for which you want to set up bandwidth management classes.
Bandwidth management controls outgoing traffic on an interface, not incoming. So,
in order to limit the download bandwidth of the LAN users, set the bandwidth
management class on the LAN. In order to limit the upload bandwidth, set the
bandwidth management class on the corresponding WAN interface.
Bandwidth
Management This field displays whether bandwidth management on the interface you selected in
the field above is enabled (Active) or not (Inactive).
After you select an interface, the bandwidth management classes configured for the
interface display. The name, bandwidth and priority display for each class. “borrow”
also displays if the class is set to use bandwidth from its parent class if the parent
class is not using up its bandwidth budget.
Add Sub-Class Click Add Sub-class to add a sub-class.
Edit Click Edit to configure the selected class. You cannot edit the root class.
Delete Click Delete to delete the class and all its sub-classes. You cannot delete the root
class.
Statistics Click Statistics to display the status of the selected class.
Enabled classes
Search Order This list displays the interface’s active bandwidth management classes (the ones
that have the bandwidth filter enabled). The ZyWALL applies the classes in the
order that they appear here. Once a connection matches a bandwidth management
class, the ZyWALL applies the class’s rules and does not check the connection
against any other bandwidth management classes.
Search Order This is the index number of an individual bandwidth management class.
Class Name This is the name that identifies a bandwidth management class.
