ZyWALL 5/35/70 Series User’s Guide
Chapter 3 Wizard Setup 103
3.5 VPN Wizard IKE Tunnel Setting (IKE Phase 1)
Use this screen to specify the authentication, encryption and other settings needed to negotiate
a phase 1 IKE SA.

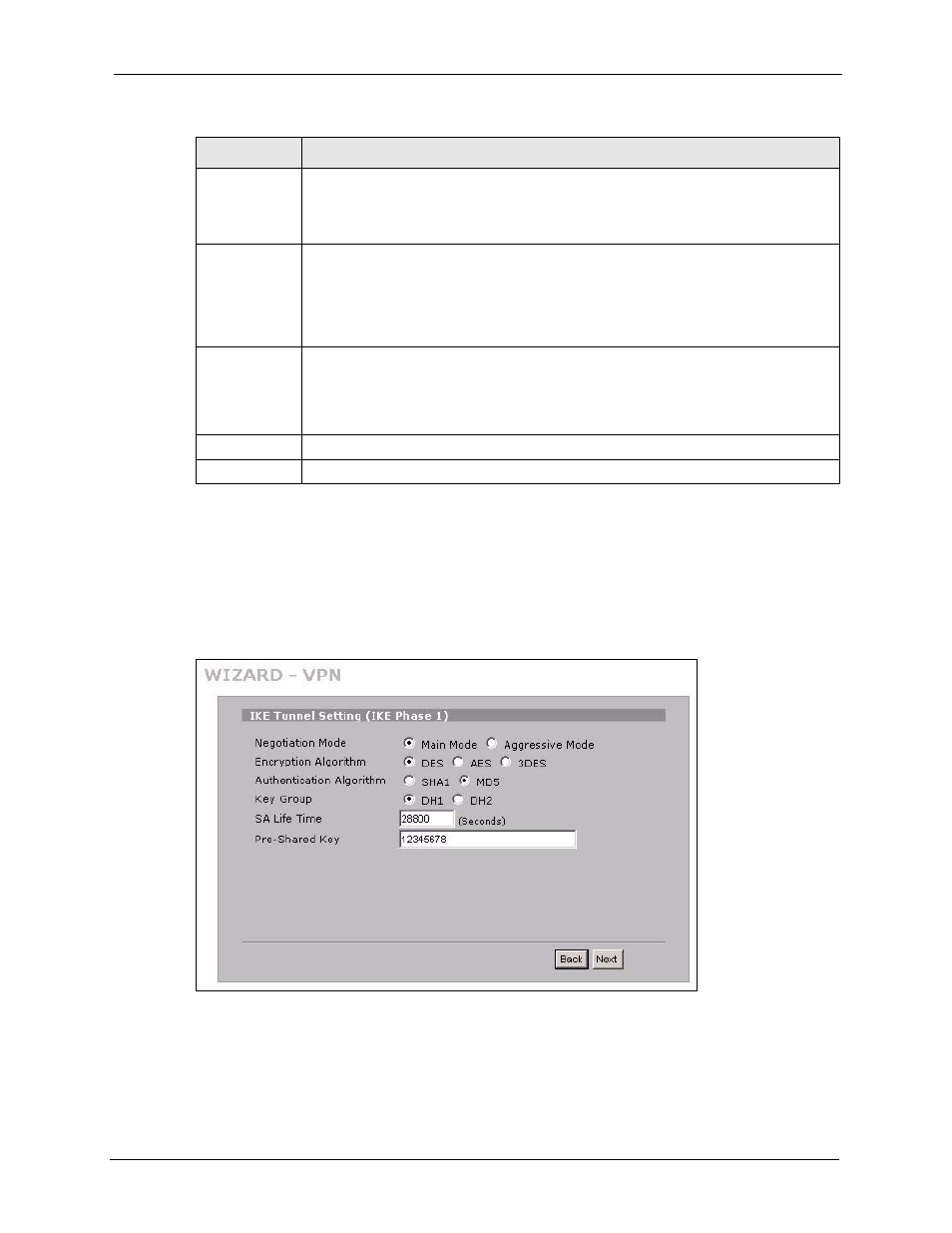

Figure 31 VPN Wizard: IKE Tunnel Setting
Remote
Network Remote IP addresses must be static and correspond to the remote IPSec router's
configured local IP addresses.
Select Single for a single IP address. Select Range IP for a specific range of IP
addresses. Select Subnet to specify IP addresses on a network by their subnet mask.
Starting IP
Address When the Remote Network field is configured to Single, enter a (static) IP address
on the network behind the remote IPSec router. When the Remote Network field is
configured to Range IP, enter the beginning (static) IP address, in a range of
computers on the network behind the remote IPSec router. When the Remote
Network field is configured to Subnet, enter a (static) IP address on the network
behind the remote IPSec router
Ending IP
Address/
Subnet Mask When the Remote Network field is configured to Single, this field is N/A. When the
Remote Network field is configured to Range IP, enter the end (static) IP address, in
a range of computers on the network behind the remote IPSec router. When the
Remote Network field is configured to Subnet, enter a subnet mask on the network
behind the remote IPSec router.
Back Click Back to return to the previous screen.
Next Click Next to continue.
Table 17 VPN Wizard: Network Setting
LABEL DESCRIPTION
