ZyWALL 5/35/70 Series User’s Guide
Chapter 2 Introducing the Web Configurator 71
2.4.2 Main Window
The main window shows the screen you select in the navigation panel. It is discussed in more
detail in the rest of this document.
Right after you log in, the HOME screen is displayed. The screen varies according to the
device mode you select in the MAINTENANCE > Device Mode screen.
2.4.3 HOME Screen: Router Mode
The following screen displays when the ZyWALL is set to router mode. This screen displays
general status information about the ZyWALL. The ZyWALL is set to router mode by default.
Not all fields are available on all models.

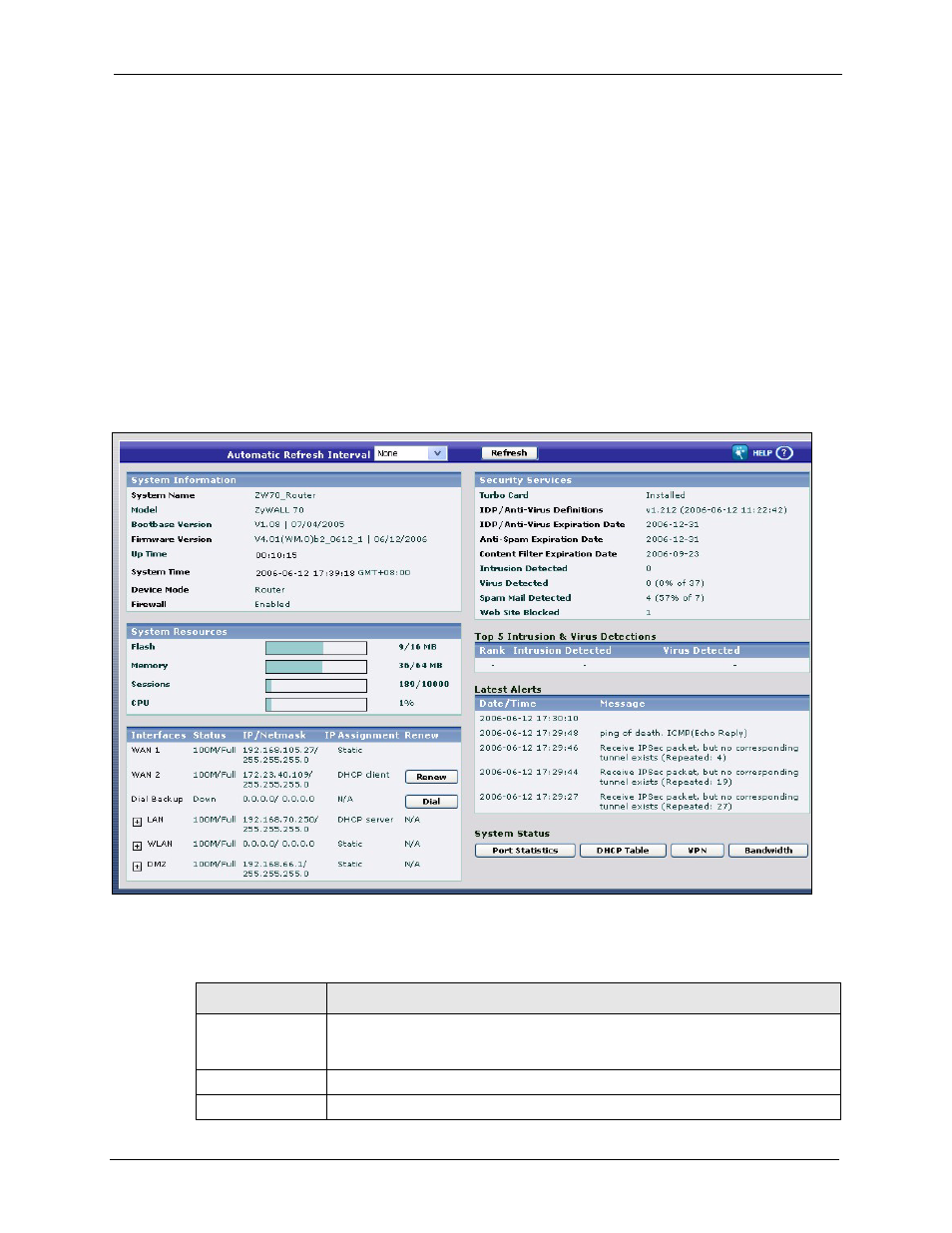

Figure 10 Web Configurator HOME Screen in Router Mode
The following table describes the labels in this screen.
Table 4 Web Configurator HOME Screen in Router Mode
LABEL DESCRIPTION
Automatic Refresh
Interval Select a number of seconds or None from the drop-down list box to update all
screen statistics automatically at the end of every time interval or to not update the
screen statistics.
Refresh Click this button to update the status screen statistics immediately.
System Information
