ZyWALL 5/35/70 Series User’s Guide
Chapter 24 Bandwidth Management 437

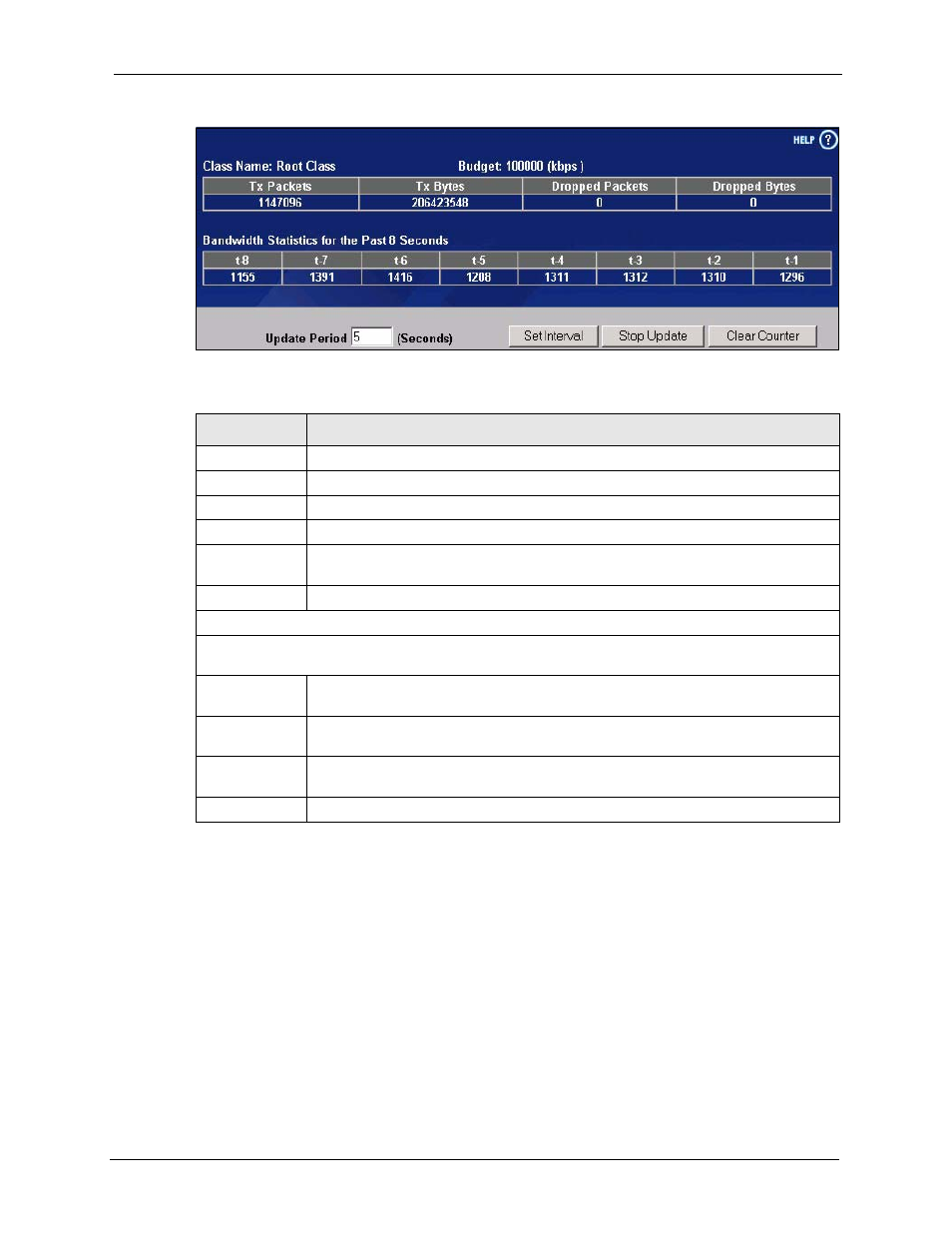

Figure 230 ADVANCED > BW MGMT > Class Setup > Statistics
The following table describes the labels in this screen.
24.13 Bandwidth Manager Monitor
Click ADVANCED > BW MGMT > Monitor to open the following screen. Use this screen
to view the device’s bandwidth usage and allotments.
LABEL DESCRIPTION
Class Name This field displays the name of the class the statistics page is showing.
Budget (kbps) This field displays the amount of bandwidth allocated to the class.
Tx Packets This field displays the total number of packets transmitted.
Tx Bytes This field displays the total number of bytes transmitted.
Dropped
Packets This field displays the total number of packets dropped.
Dropped Bytes This field displays the total number of bytes dropped.
Bandwidth Statistics for the Past 8 Seconds (t-8 to t-1)
This field displays the bandwidth statistics (in bps) for the past one to eight seconds. For example, t-1
means one second ago.
Update Period
(Seconds) Enter the time interval in seconds to define how often the information should be
refreshed.
Set Interval Click Set Interval to apply the new update period you entered in the Update Period
field above.
Stop Update Click Stop Update to stop the browser from refreshing bandwidth management
statistics.
Clear Counter Click Clear Counter to clear all of the bandwidth management statistics.
