ZyWALL 5/35/70 Series User’s Guide

720

Appendix A Product Specifications

Note: Only certain ZyXEL wireless LAN cards are compatible with the ZyWALL.

Do not force, bend or twist the wireless LAN card or ZyWALL Turbo Card.

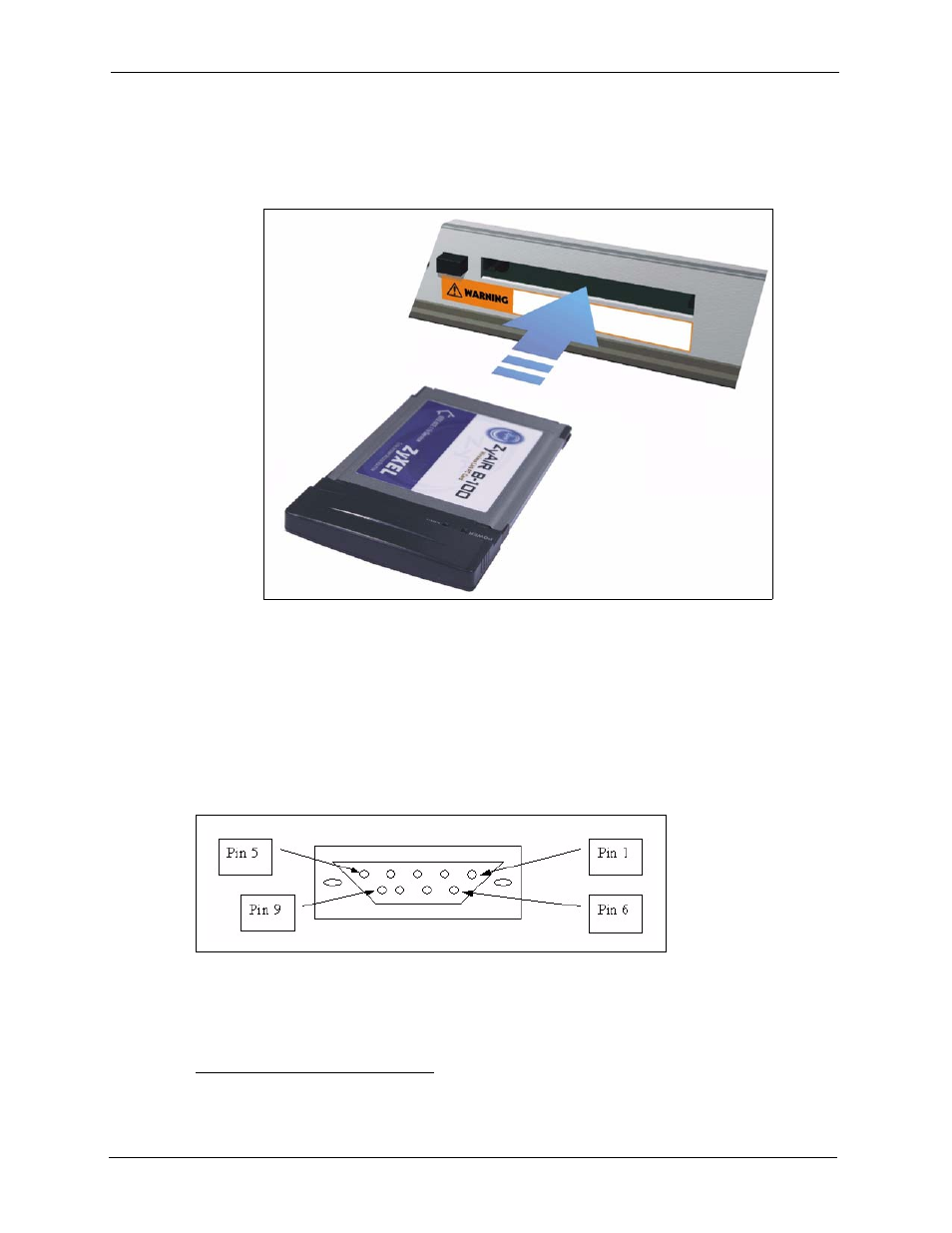

Figure 452 WLAN Card Installation

Cable Pin Assignments

In a serial communications connection, generally a computer is DTE (Data Terminal
Equipment) and a modem is DCE (Data Circuit-terminating Equipment). The ZyWALL is
DCE when you connect a computer to the console port. The ZyWALL is DTE when you
connect a modem to the dial backup port.

Figure 453 Console/Dial Backup Port Pin Layout

2. Pins 2,3 and 5 are used.
