ZyWALL 5/35/70 Series User’s Guide
660 Chapter 46 System Information & Diagnosis
1 From the main menu, select option 24 to open Menu 24 - System Maintenance.
2 From this menu, select option 4. Diagnostic. This will open Menu 24.4 - System
Maintenance - Diagnostic.

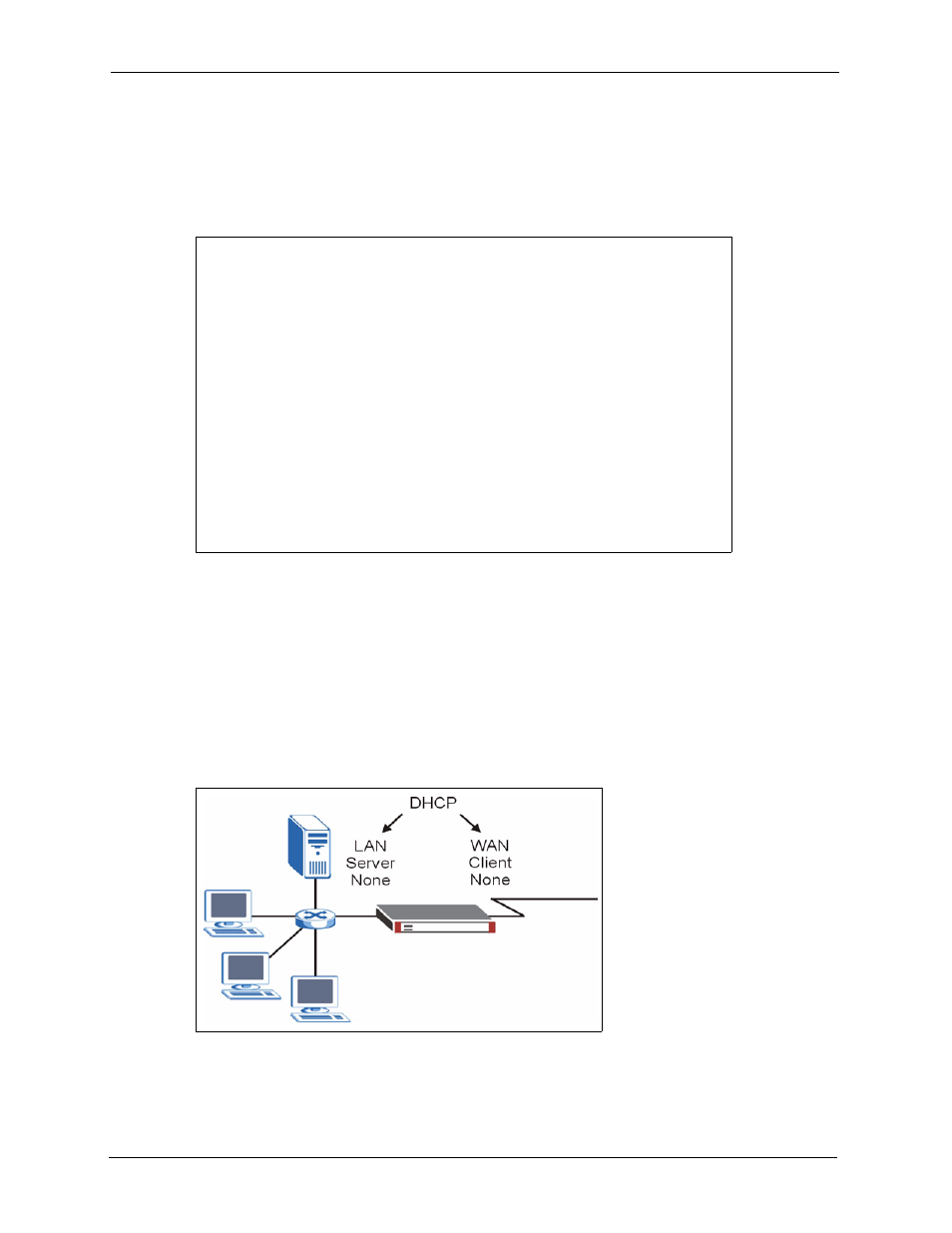

Figure 405 Menu 24.4: System Maintenance: Diagnostic
46.5.1 WAN DHCP
DHCP functionality can be enabled on the LAN or WAN as shown in Figure 406 on page 660 .
LAN DHCP has already been discussed. The ZyWALL can act either as a WAN DHCP client
(IP Address Assignment field in menu 4 or menu 11.x.2 is Dynamic and the Encapsulation
field in menu 4 or menu 11 is Ethernet) or None, (when you have a static IP). The WAN
Release and Renewal fields in menu 24.4 conveniently allow you to release and/or renew the
assigned WAN IP address, subnet mask and default gateway in a fashion similar to winipcfg.
Figure 406 WAN & LAN DHCP
The following table describes the diagnostic tests available in menu 24.4 for your ZyWALL
and associated connections.
Menu 24.4 - System Maintenance - Diagnostic
TCP/IP
1. Ping Host
2. WAN DHCP Release
3. WAN DHCP Renewal
4. Internet Setup Test
System
11. Reboot System
Enter Menu Selection Number:
WAN=
Host IP Address= N/A
