ZyWALL 5/35/70 Series User’s Guide
64
Chapter 1 Getting to Know Your ZyWALL

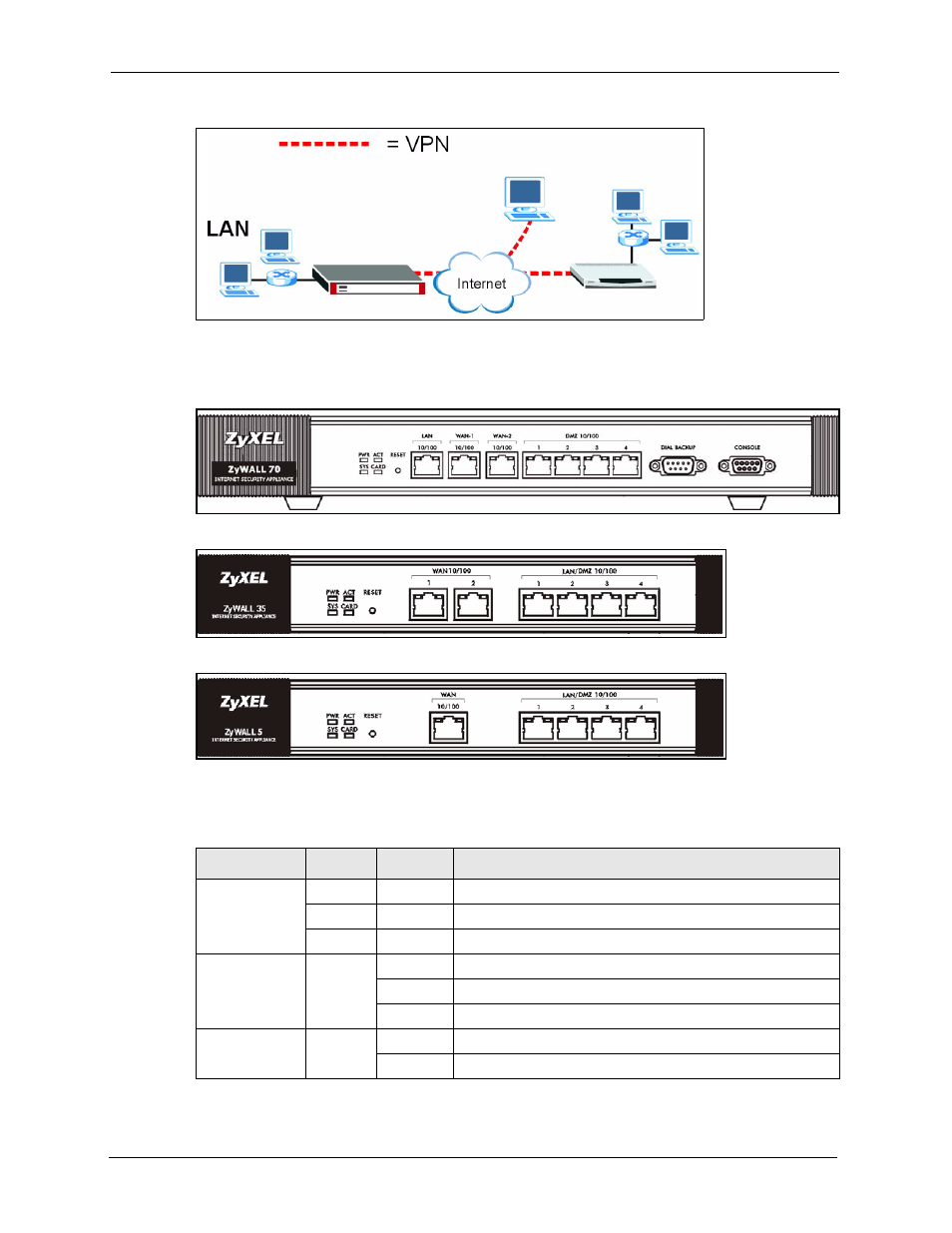

Figure 2 VPN Application
1.3.3 Front Panel Lights
Figure 3 ZyWALL 70 Front Panel
Figure 4 ZyWALL 35 Front Panel
Figure 5 ZyWALL 5 Front Panel
The following table describes the lights.
Table 2 Front Panel Lights
LED
COLOR
STATUS
DESCRIPTION
PWR
Off
The ZyWALL is turned off.
Green
On
The ZyWALL is turned on.
Red
On
The power to the ZyWALL is too low.
SYS
Green
Off
The ZyWALL is not ready or has failed.
On
The ZyWALL is ready and running.
Flashing
The ZyWALL is restarting.
ACT
Green
Off
The backup port is not connected.
Flashing
The backup port is sending or receiving packets.
