ZyWALL 5/35/70 Series User’s Guide
Chapter 31 Maintenance 541

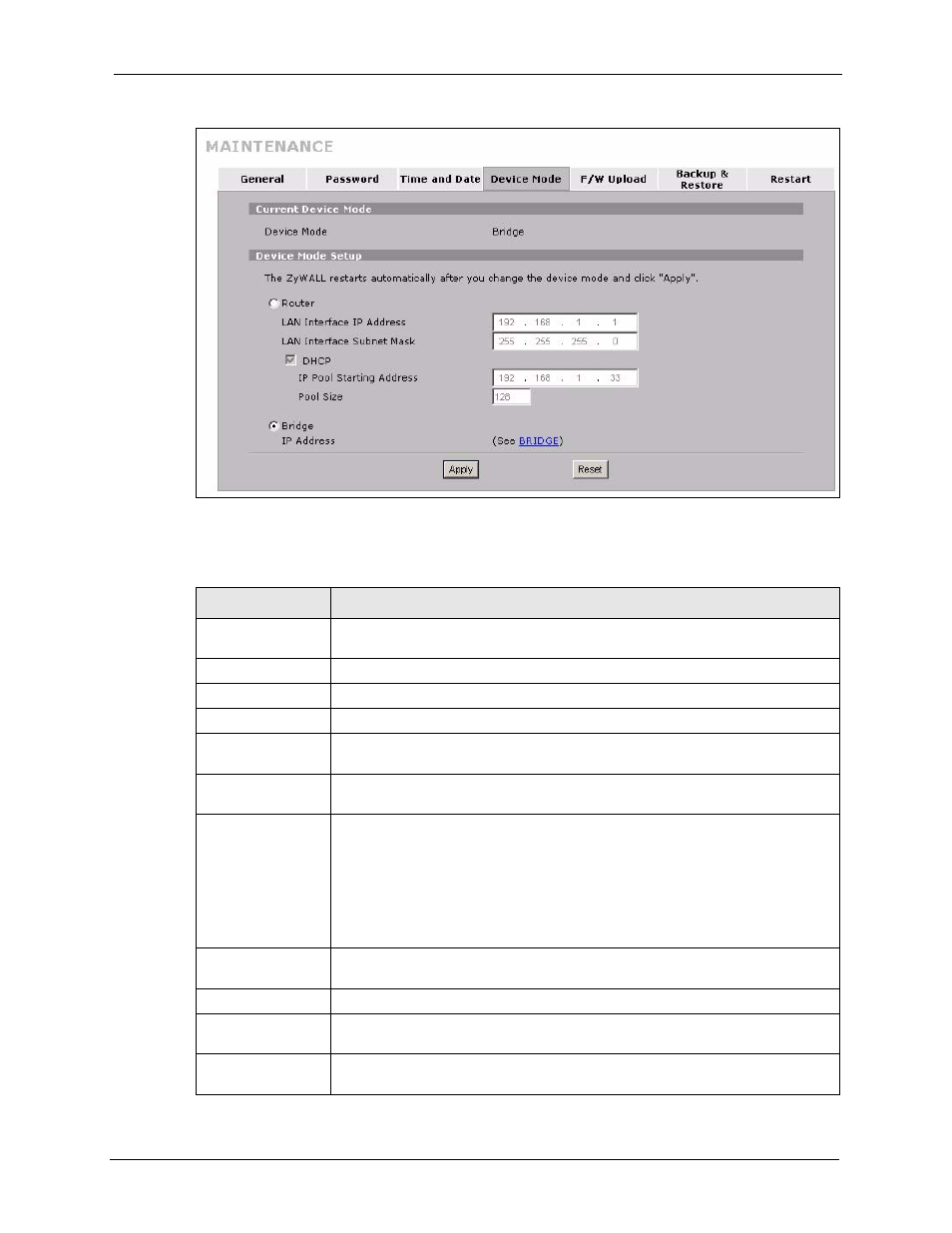

Figure 293 MAINTENANCE > Device Mode (Bridge Mode)
The following table describes the labels in this screen.
Table 194 MAINTENANCE > Device Mode (Bridge Mode)
LABEL DESCRIPTION
Current Device
Mode
Device Mode This displays whether the ZyWALL is functioning as a router or a bridge.
Device Mode Setup
Router Select this radio button and click Apply to set the ZyWALL to router mode.
LAN Interface IP
Address Enter the IP address of your ZyWALL’ s LAN port in dotted decimal notation.
192.168.1.1 is the factory default.
LAN Interface
Subnet Mask Enter the IP subnet mask of the ZyWALL’s LAN port.
DHCP DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows
individual clients (computers) to obtain TCP/IP configuration at startup from a
server. Unless you are instructed by your ISP, leave the DHCP check box
selected. Clear it to stop the ZyWALL from acting as a DHCP server. When
configured as a server, the ZyWALL provides TCP/IP configuration for the clients.
If not, DHCP service is disabled and you must have another DHCP server on
your LAN, or else the computers must be manually configured. When set as a
server, fill in the rest of the DHCP setup fields.
IP Pool Starting
Address This field specifies the first of the contiguous addresses in the IP address pool.
Pool Size This field specifies the size, or count of the IP address pool.
Bridge When the ZyWALL is in bridge mode, there is no need to select or clear this radio
button.
IP Address Click Bridge to go to the Bridge screen where you can view and/or change the
bridge settings.
